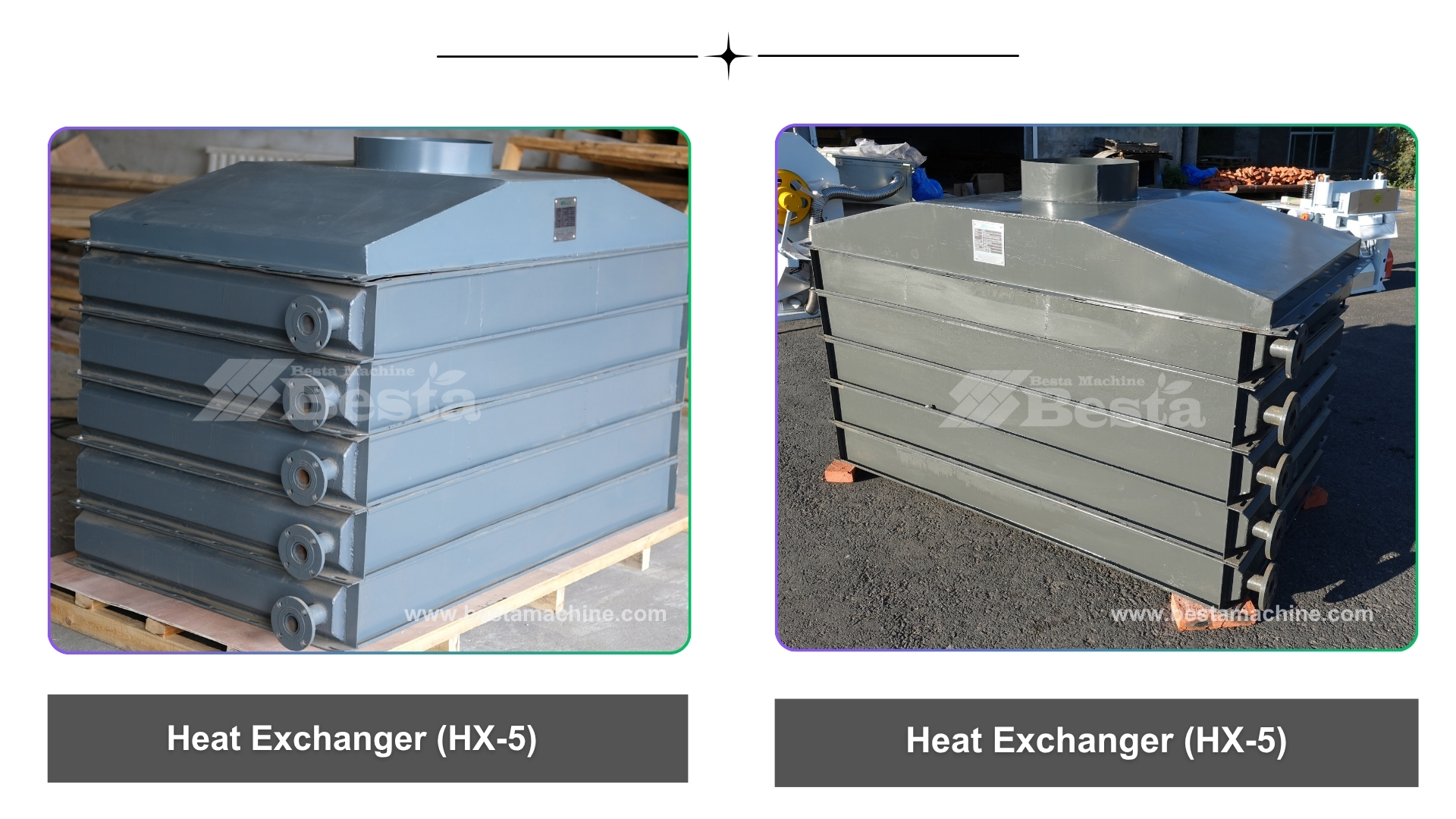

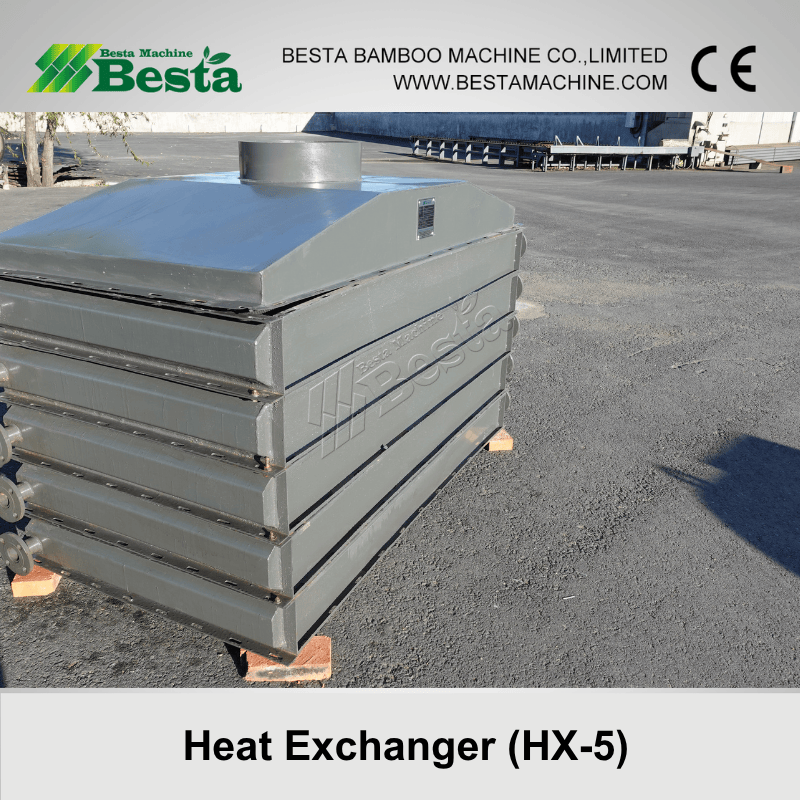

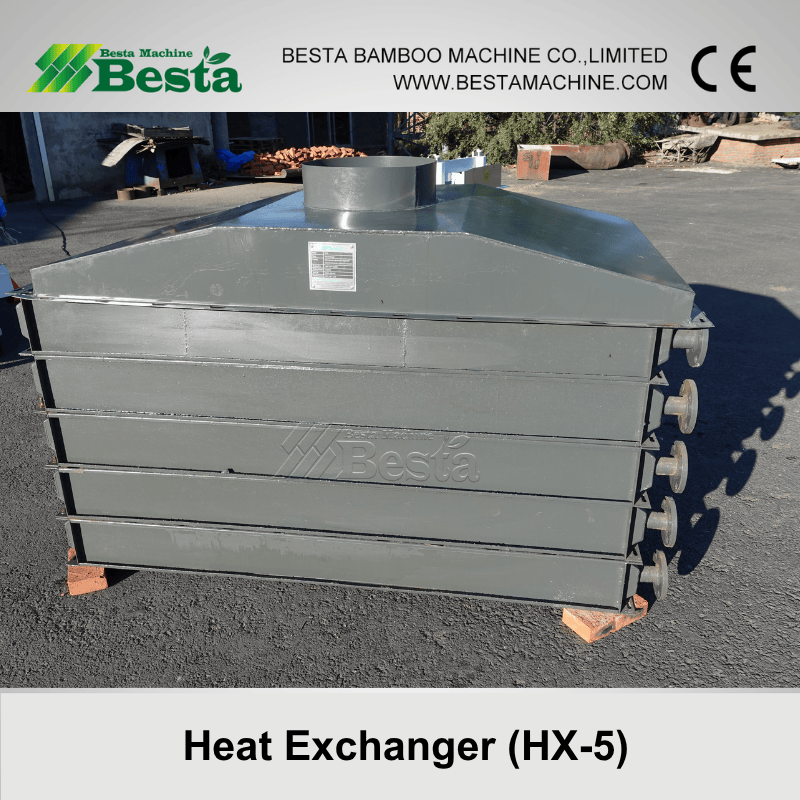

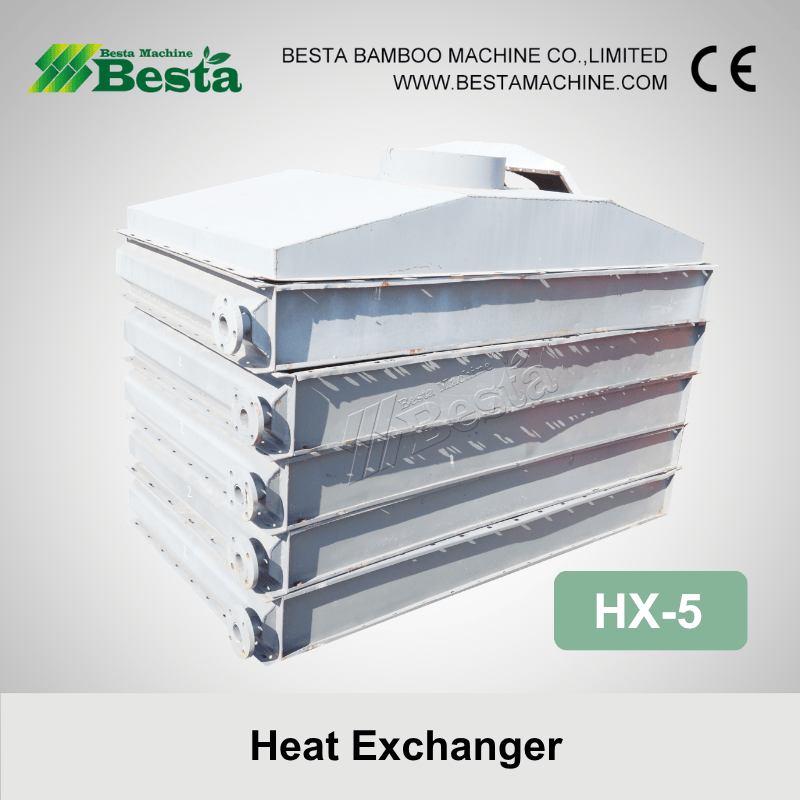

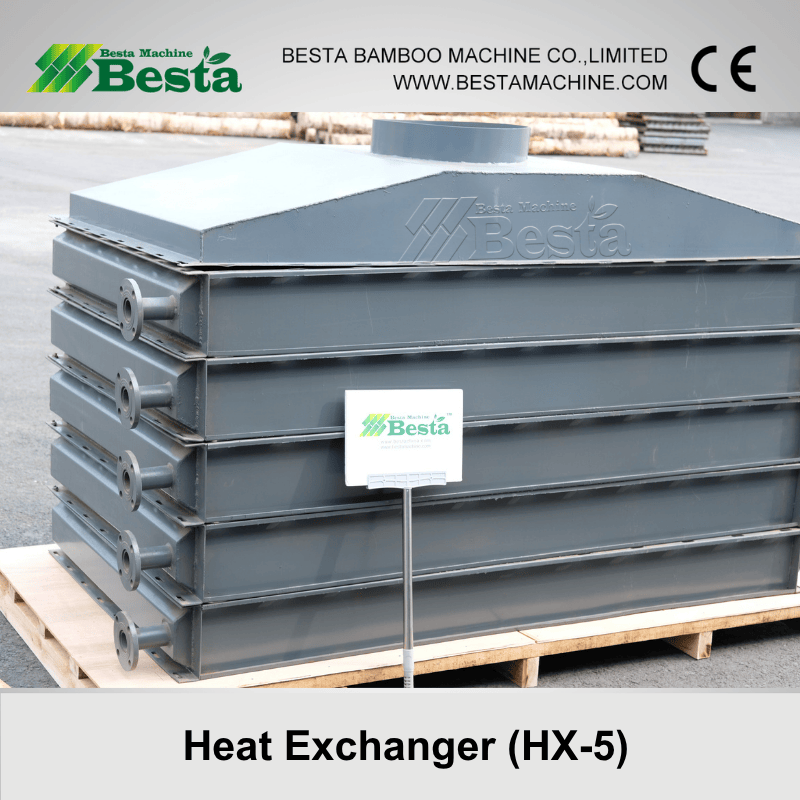

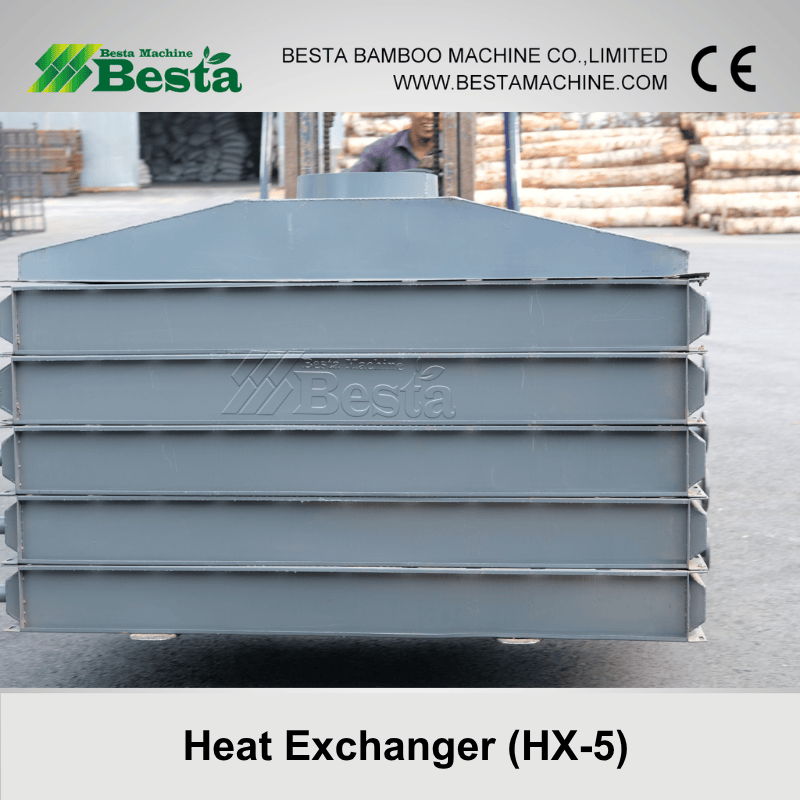

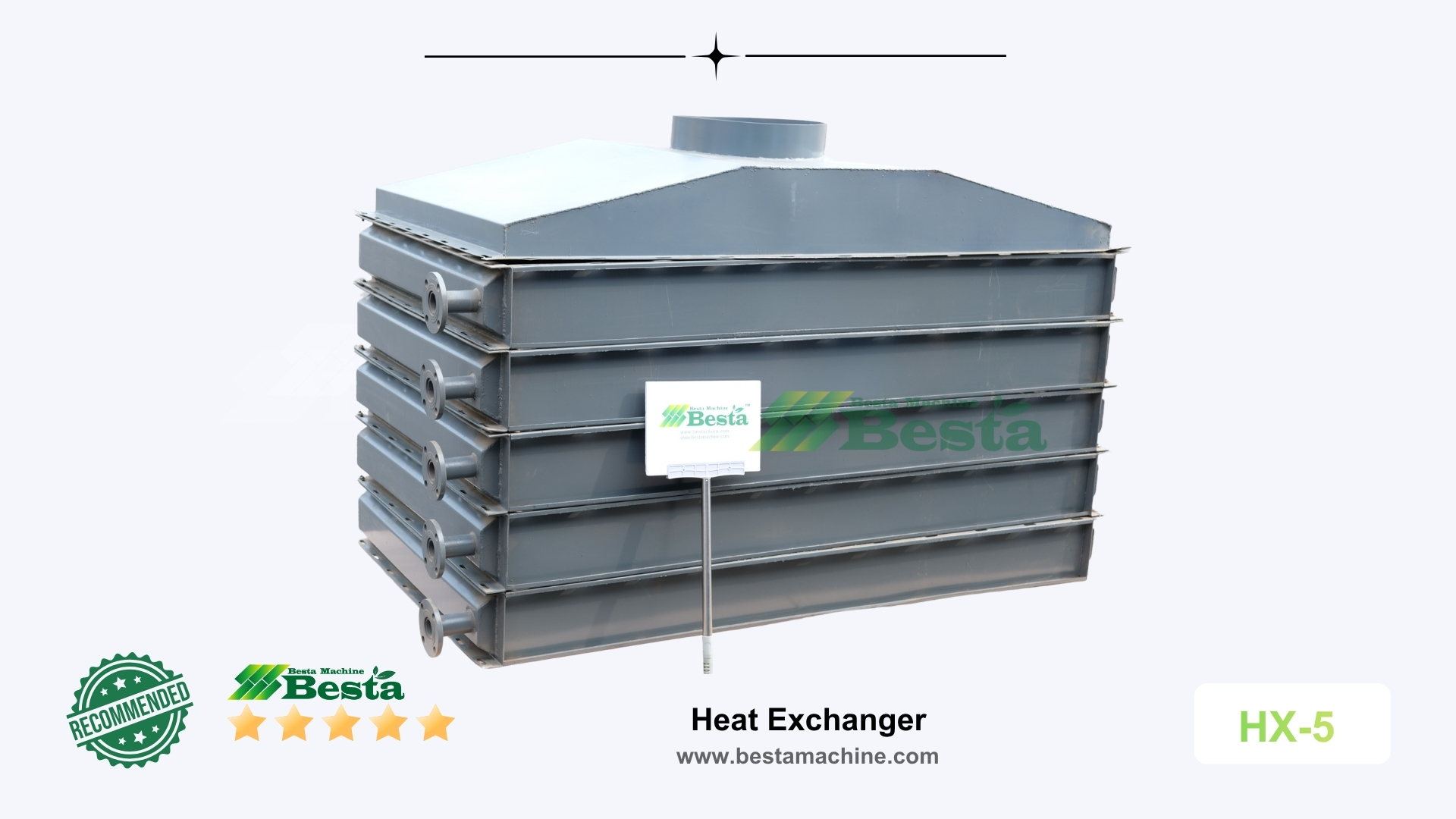

HX-5 Heat Exchanger is the auxiliary equipment for PG-6-L3 Stick Polishing Machine.
| Product Name | Heat Exchanger |
| Model | HX-5 |
| Function | Conduct fresh air into hot air. |
| Application | Wooden Ice Cream Stick, tongue depressor stick, wooden coffee stirring stick, wooden cutlery making production line |
| Heat Dissipating Capacity | 14040 W |
| Machine Weight | 1000 KGS |
| Machine Size | 1900*1100MM*1300MM |
| Remarks (1) | This machine is working with PG-6-L3 Stick Polishing Machine |

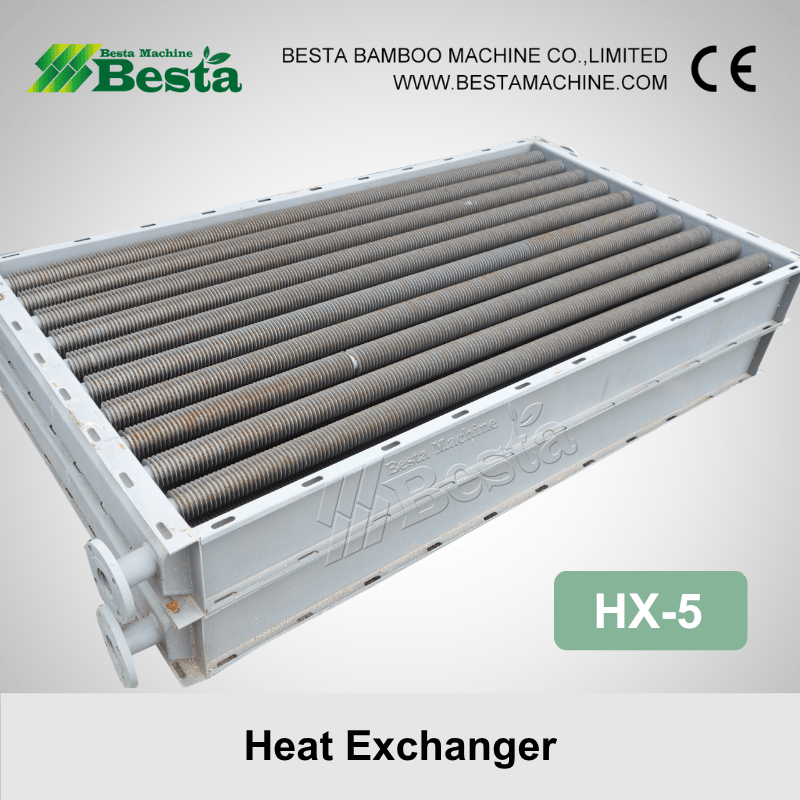

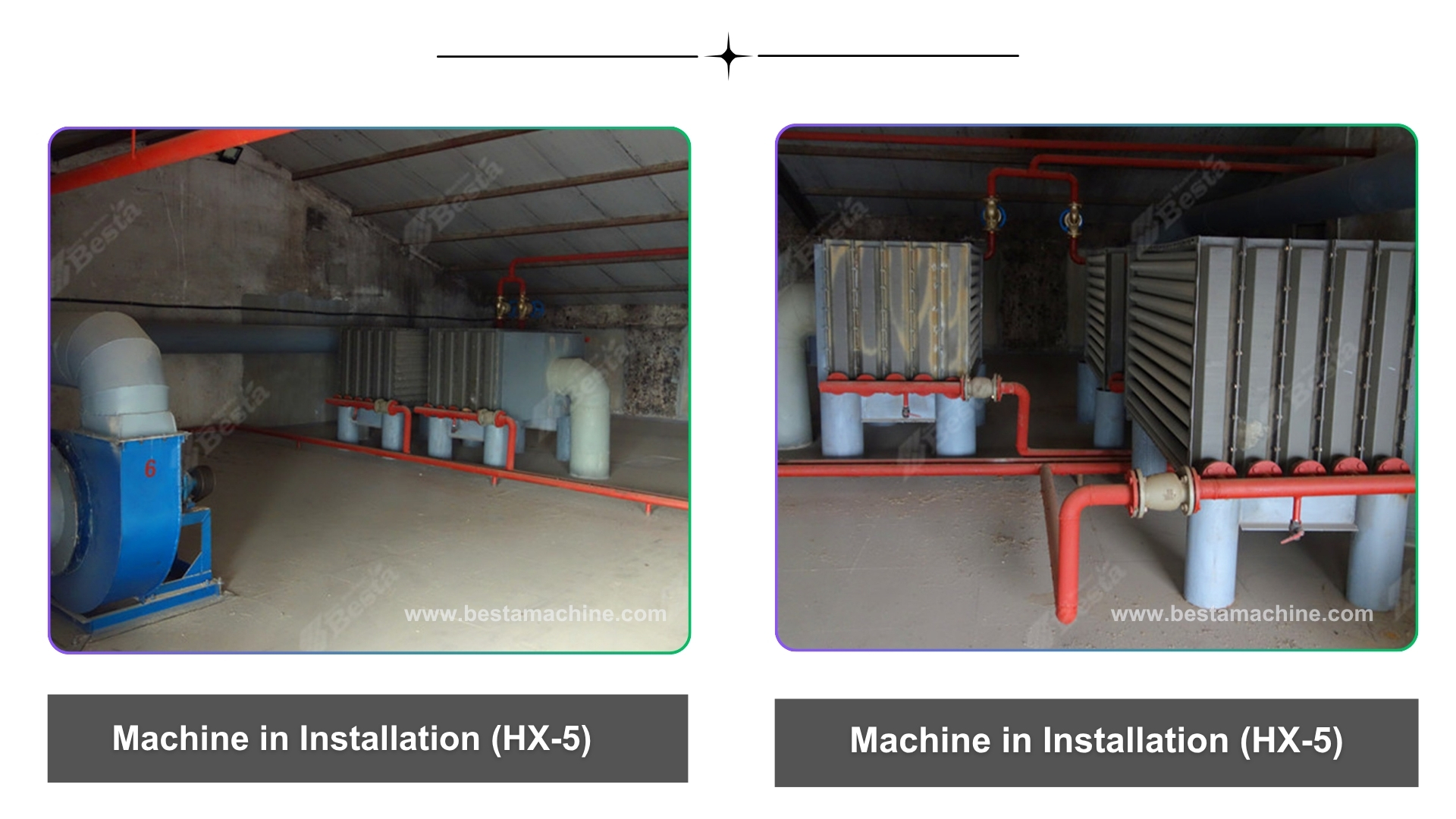

| Remarks (2) | For 1 set of machine, it is consisted by 5 small pieces and work with 1 set of PG-6-L3 Machine. |

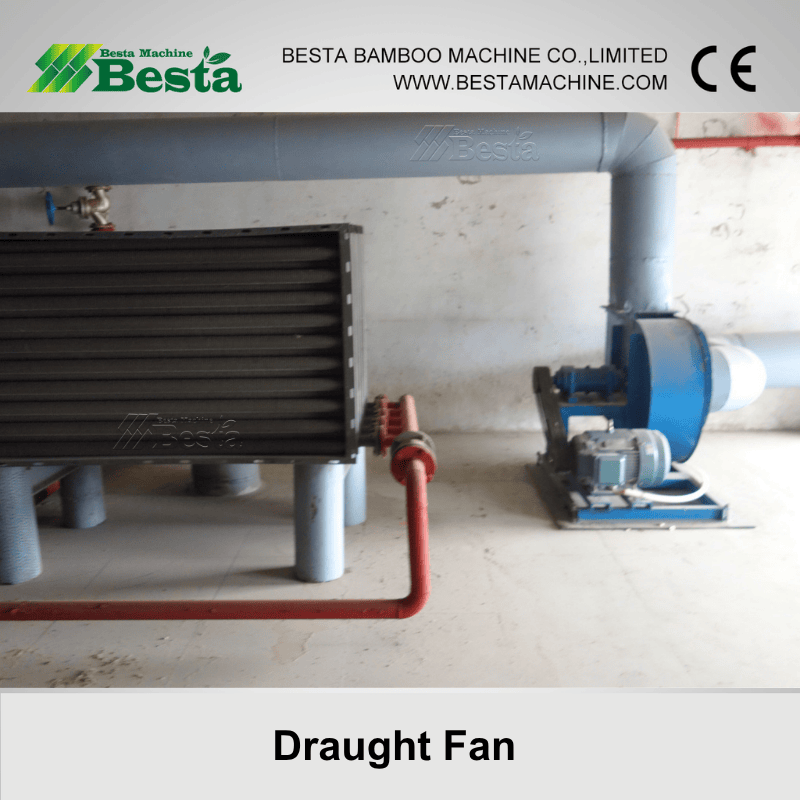

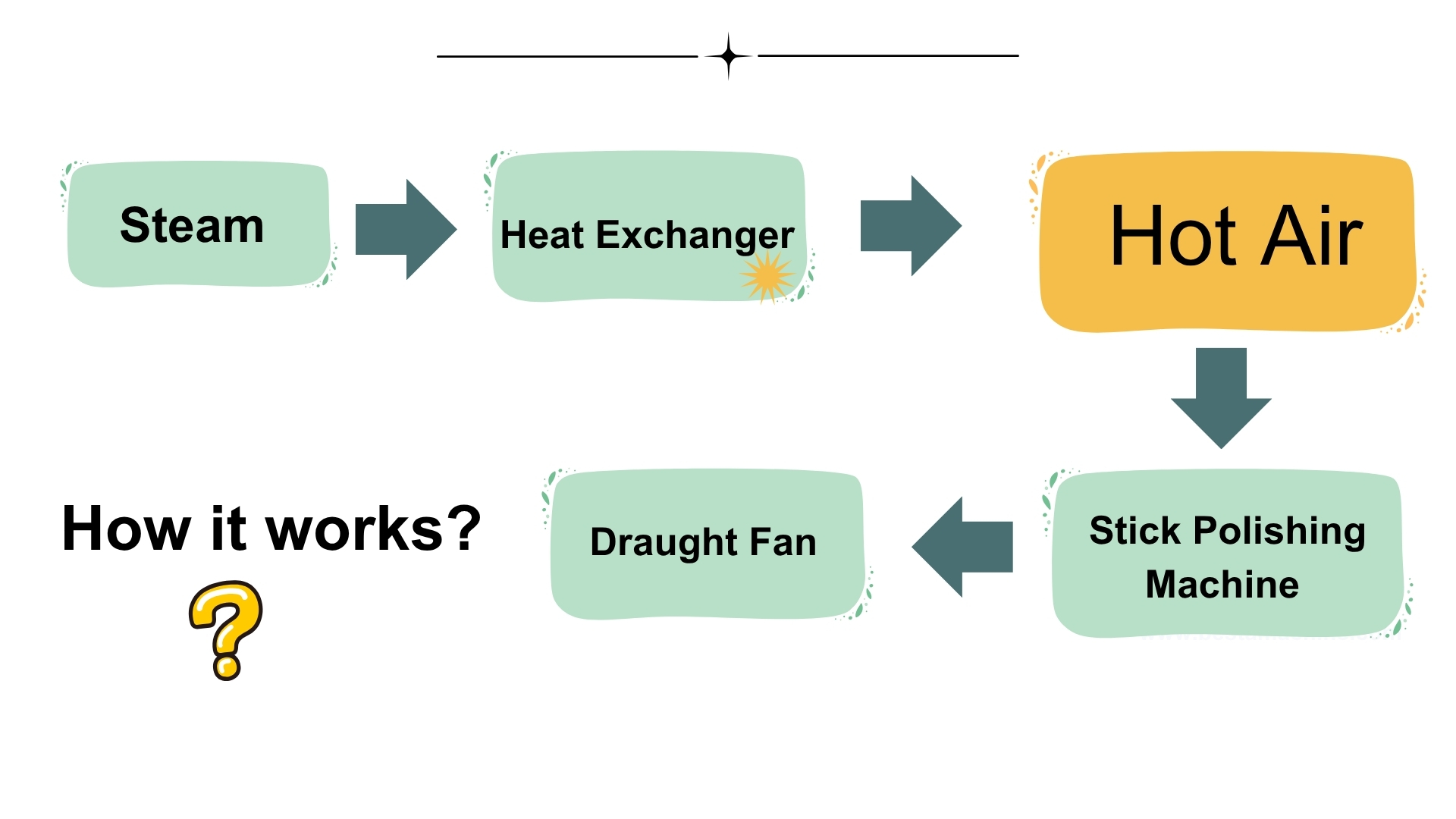

Its working principle is as follows: a steam boiler generates steam and delivers it to a heat exchanger; external air is heated by the heat exchanger and converted into hot air, which is then sent into the polishing machine. The steam flow rate is precisely controlled by valves to ensure a stable and efficient drying process.
