CNC Wooden Ice Cream Stick Punching Machine

Share Products:

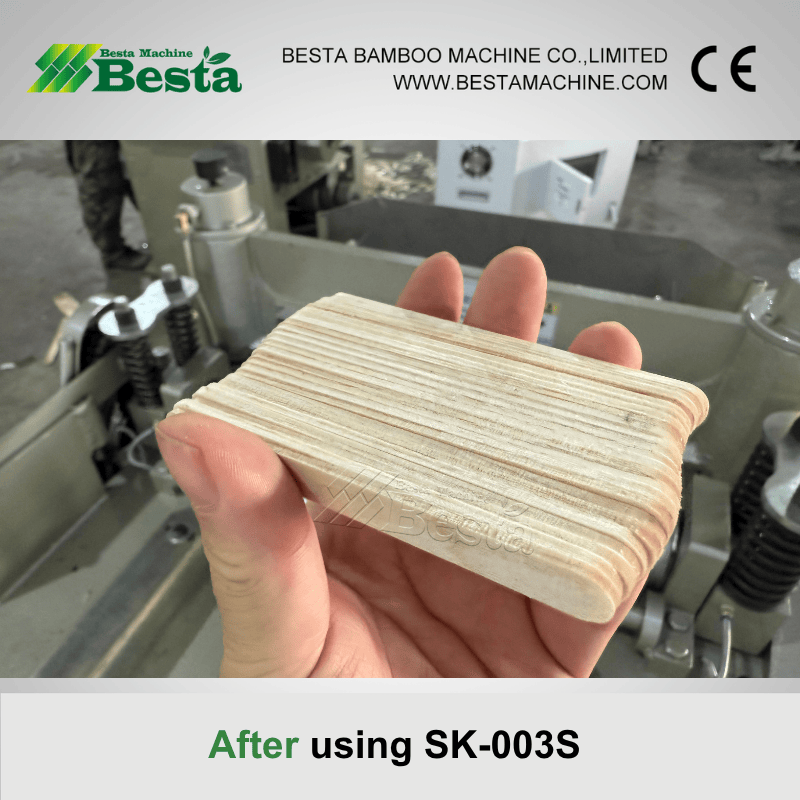

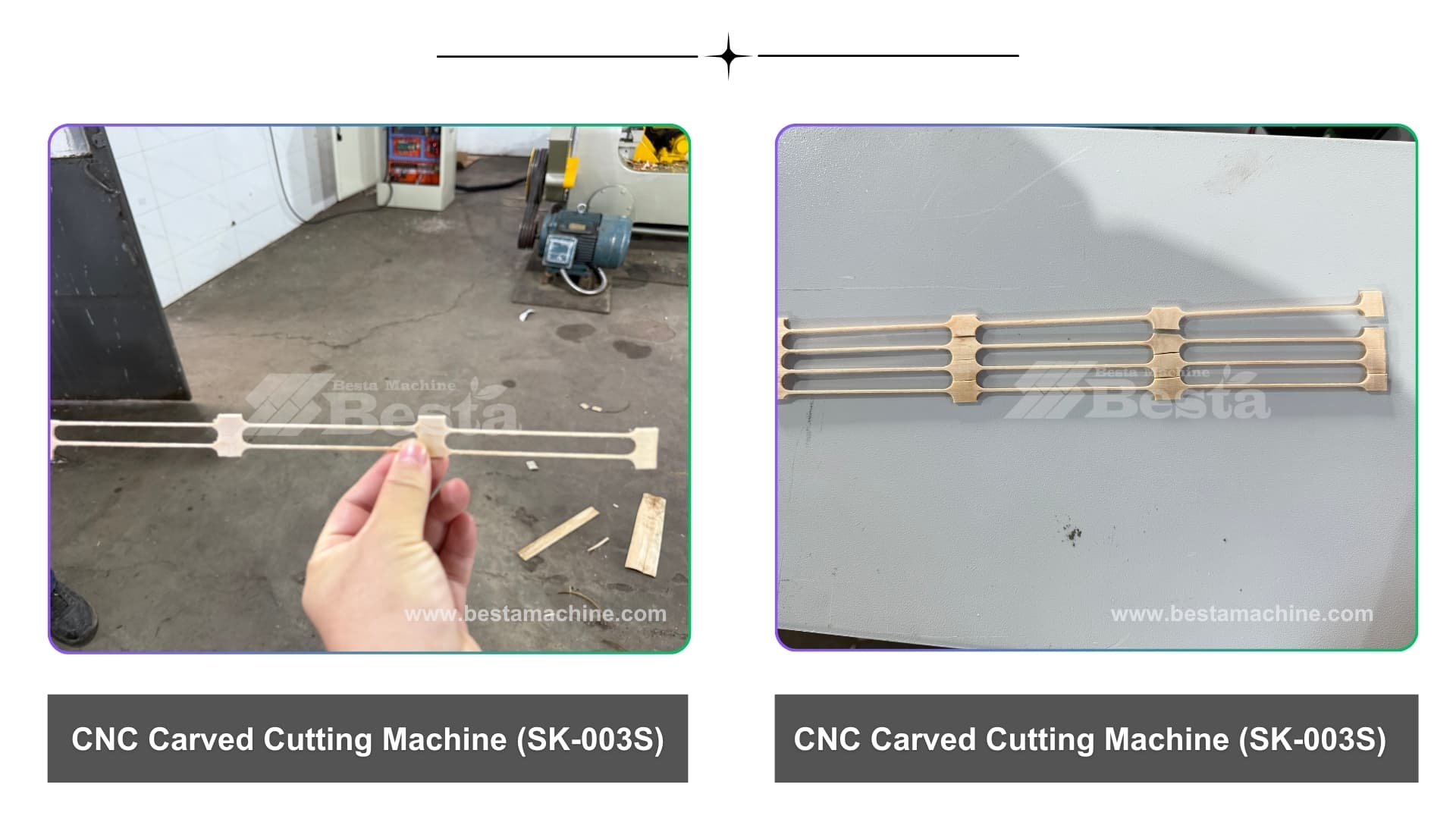

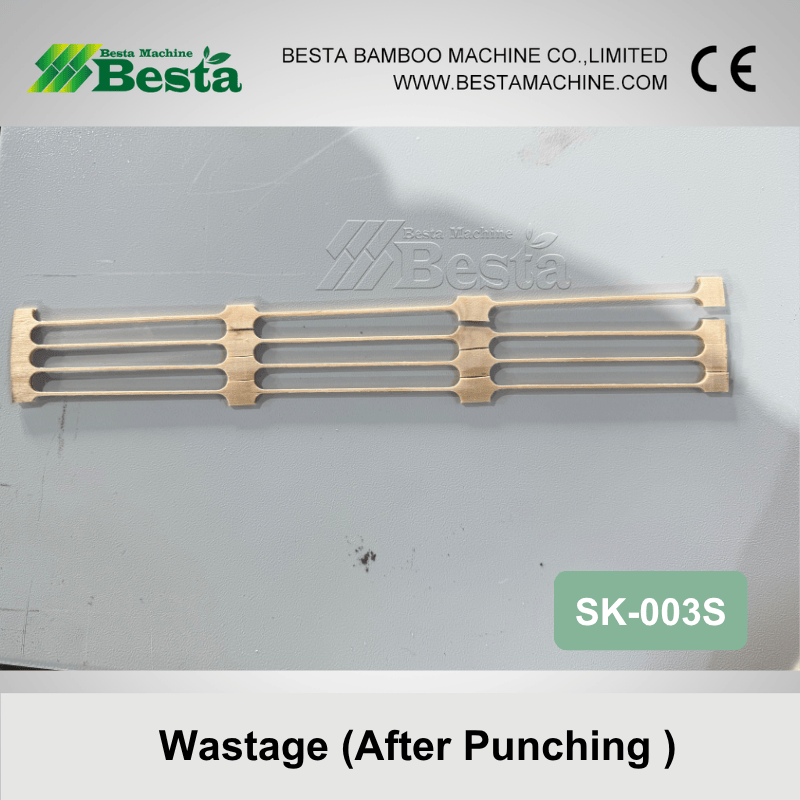

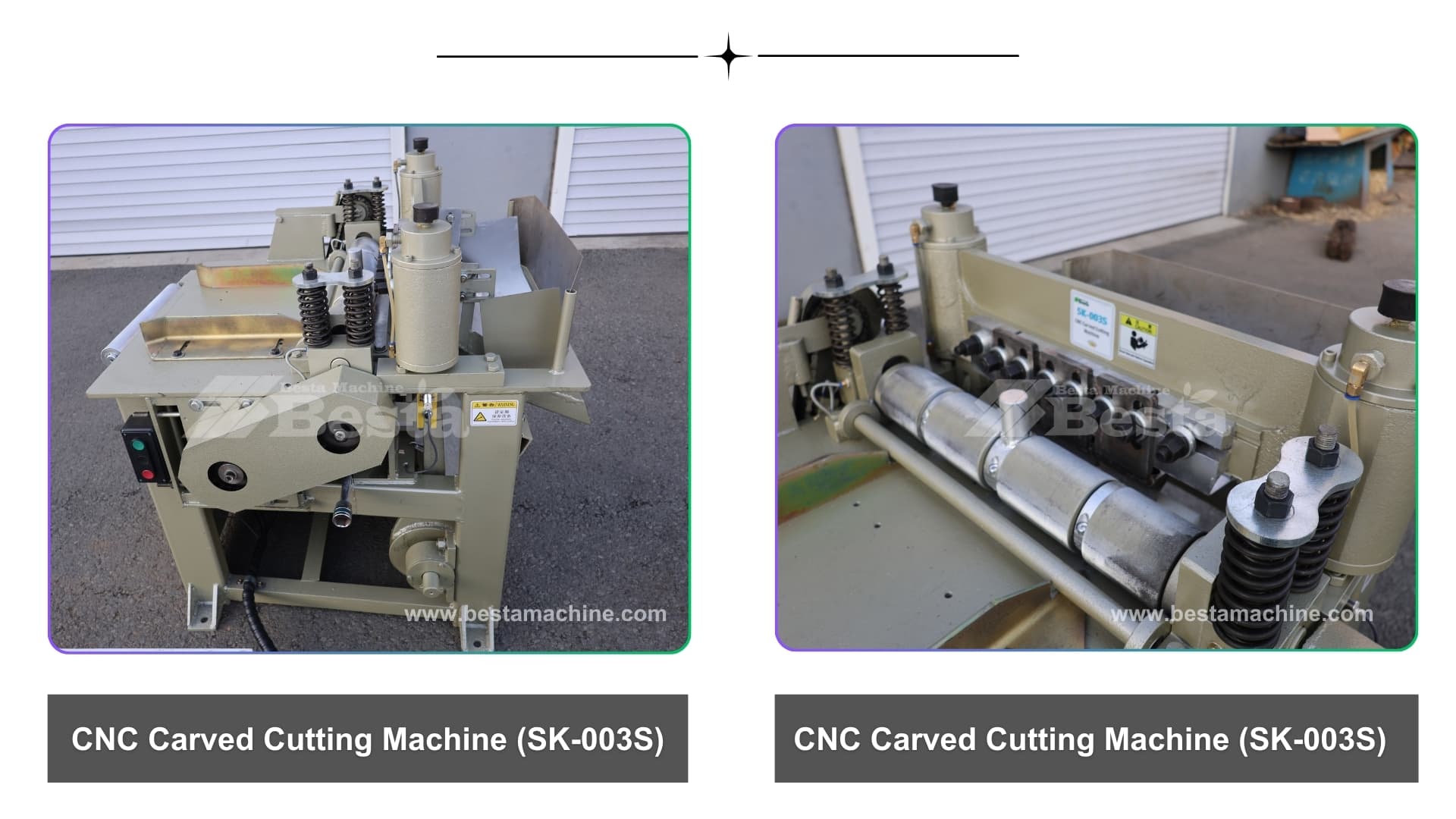

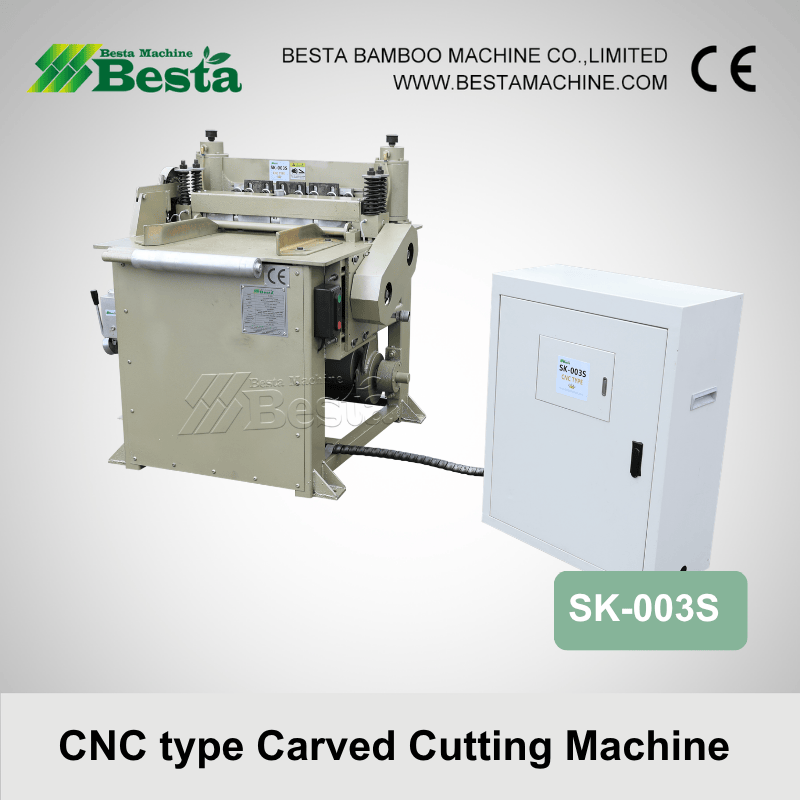

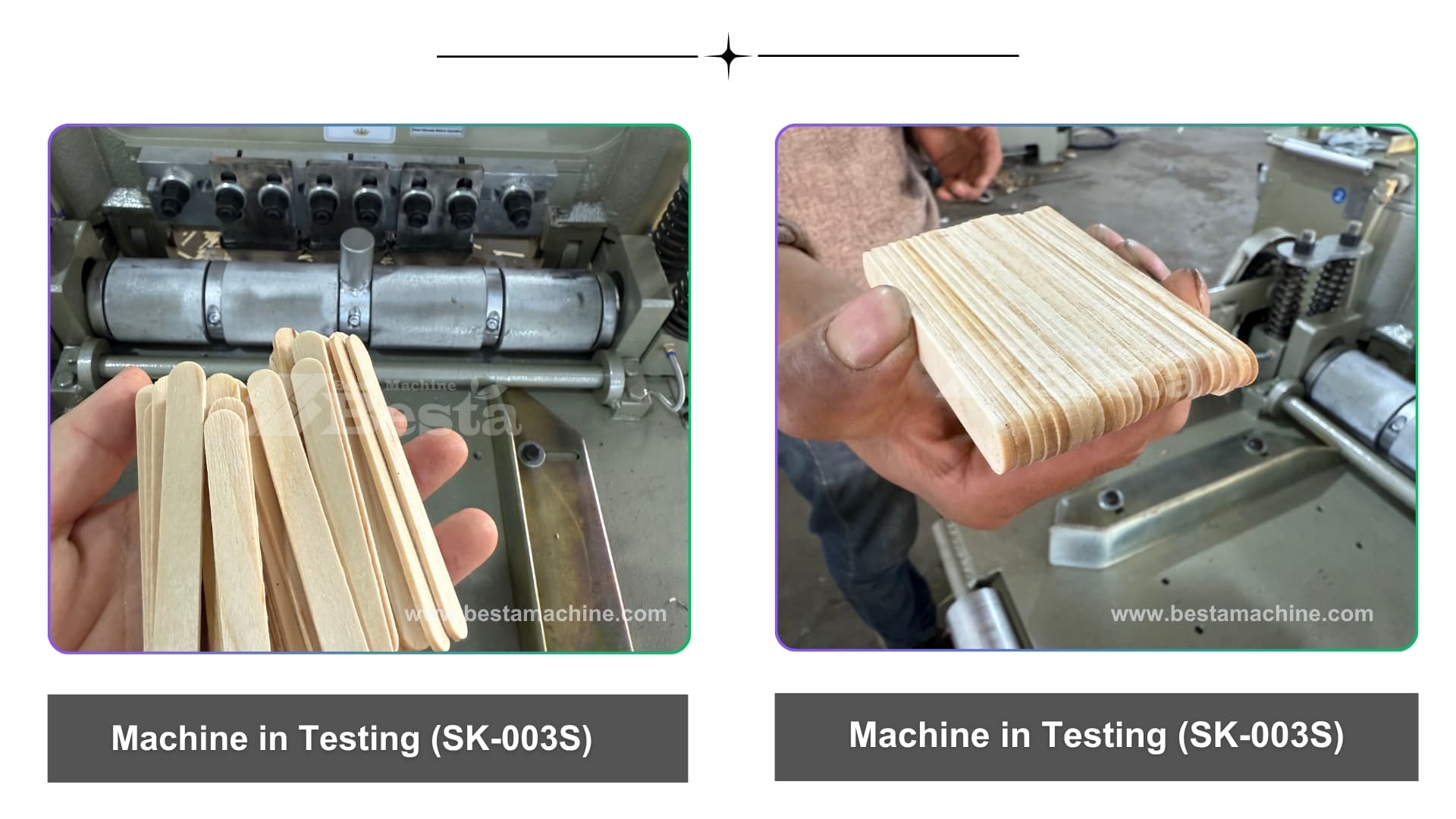

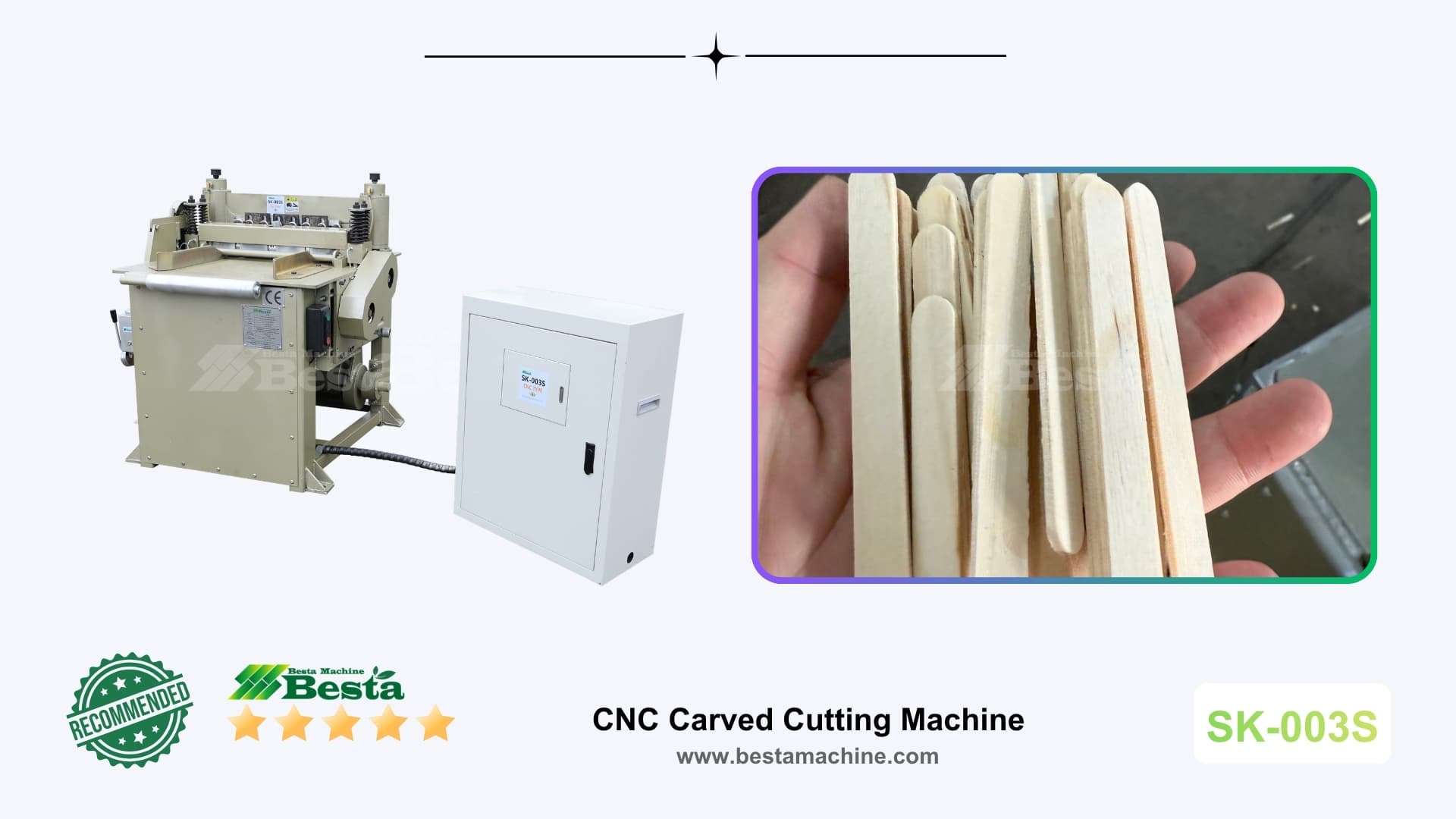

SK-003S CNC Wooden Ice Cream Stick Making Machine is the key machine for punching the wooden veneer into wooden ice cream sticks and other sizes of products. This model is currently the most advanced CNC punching machine for popsicle sticks on the market.

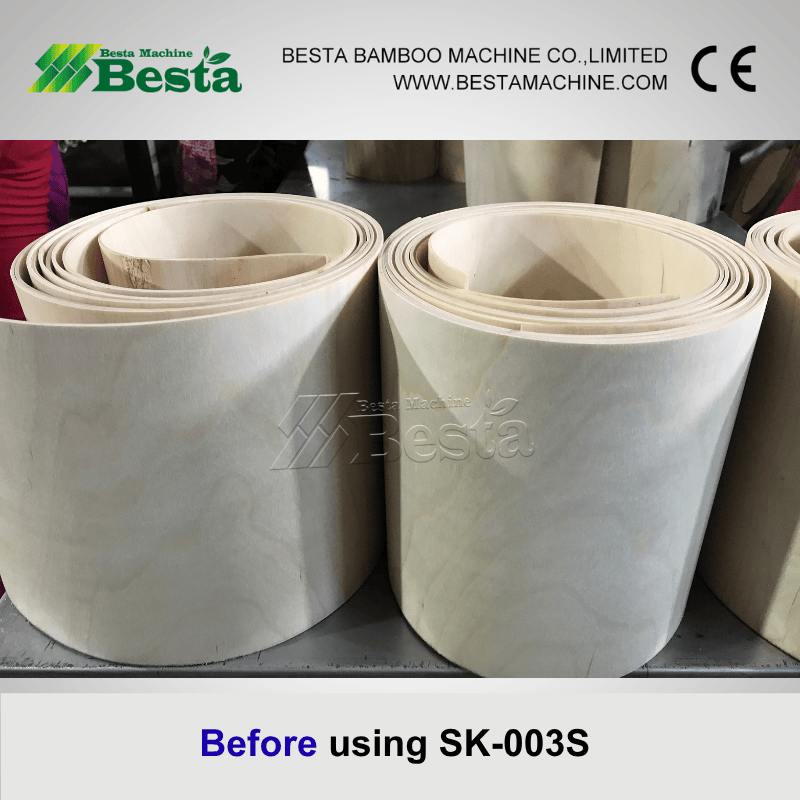

Before using this machine, the wood veneer used for punching need to be freshly rotary-cut wood wooden veneer with a certain temperature and humidity.

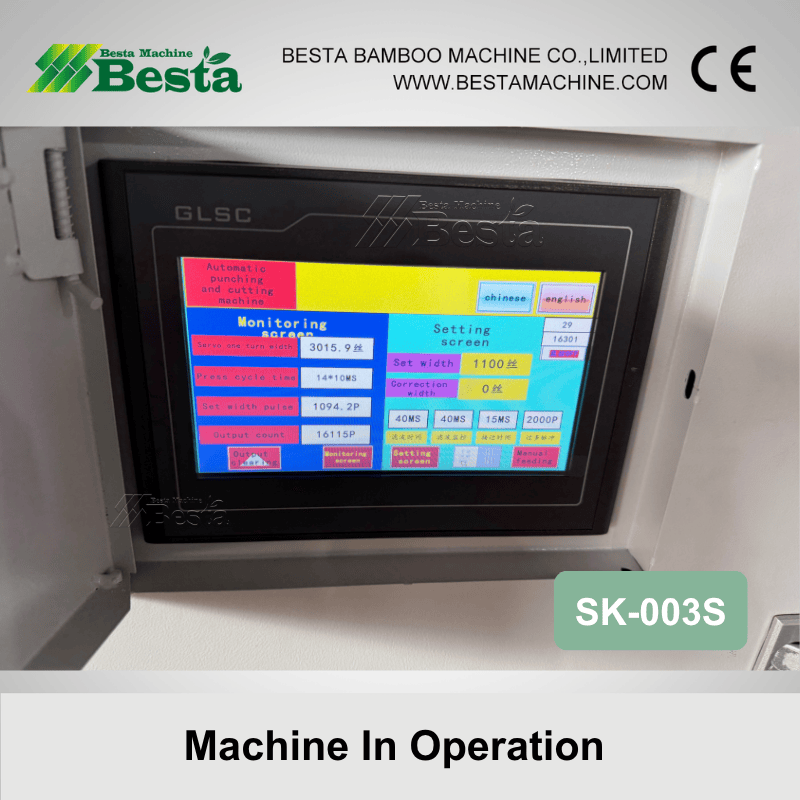

The advantages of this equipment is that it uses a CNC motor for feeding, and the feed width can be operated on the display screen and adjusted according to the width of the product. It offers high feeding accuracy, high speed, simple operation, and easy maintenance. It is suitable for punching and forming products of various shapes.

Product Details

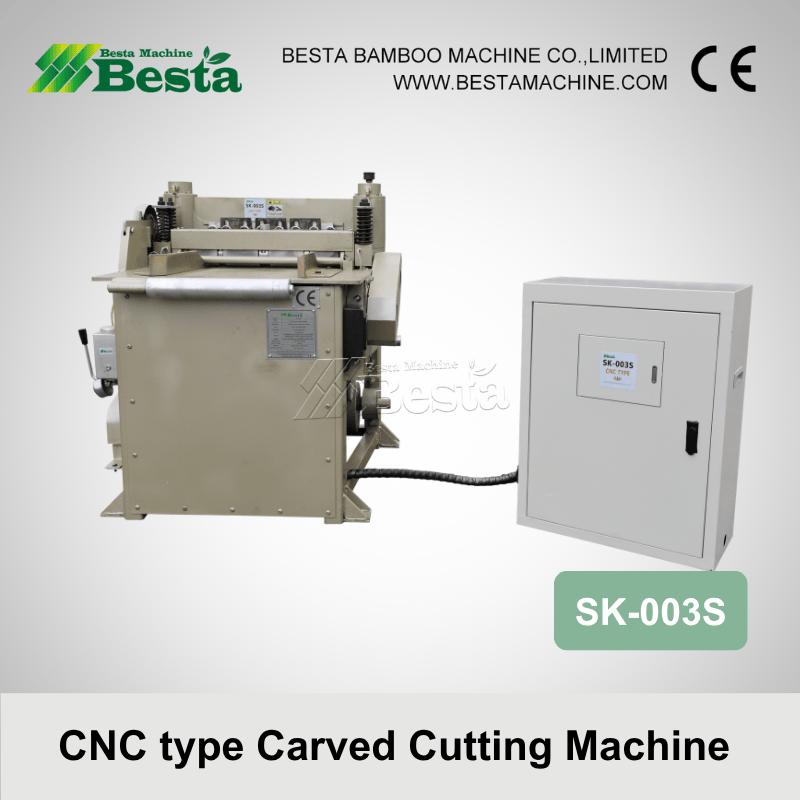

Product Name CNC Wooden Ice Cream Stick

Carved Cutting Machine

Model SK-003S
Type CNC Type (Standard Design)
Brand Besta Machine

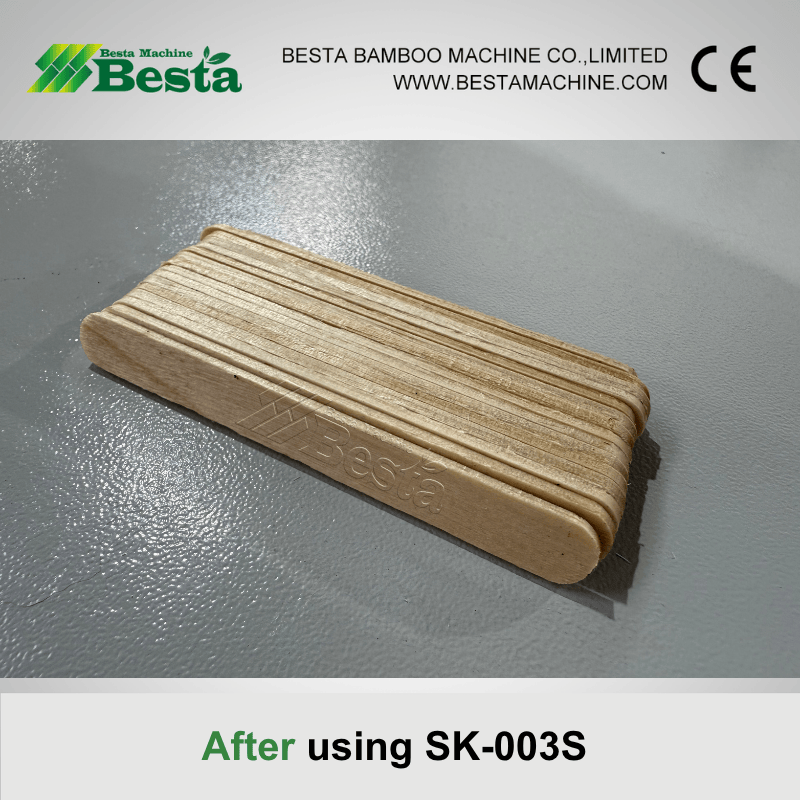

Function This machine is used for punching wooden veneer into 93/114MM wooden ice cream sticks
Main Power 2.2 KW
Servo Motor Power 4 KW
Working Voltage 380V, 50HZ (Three phases)
Machine Size 1000*1150*1100 MM (PART I)
Control Cabinet 600*380*1250 MM (PART II)
Machine Weight 620 KGS

Remarks: The machine motor can be customized. (ex. 415V,50HZ, 440V,50HZ ETC)
