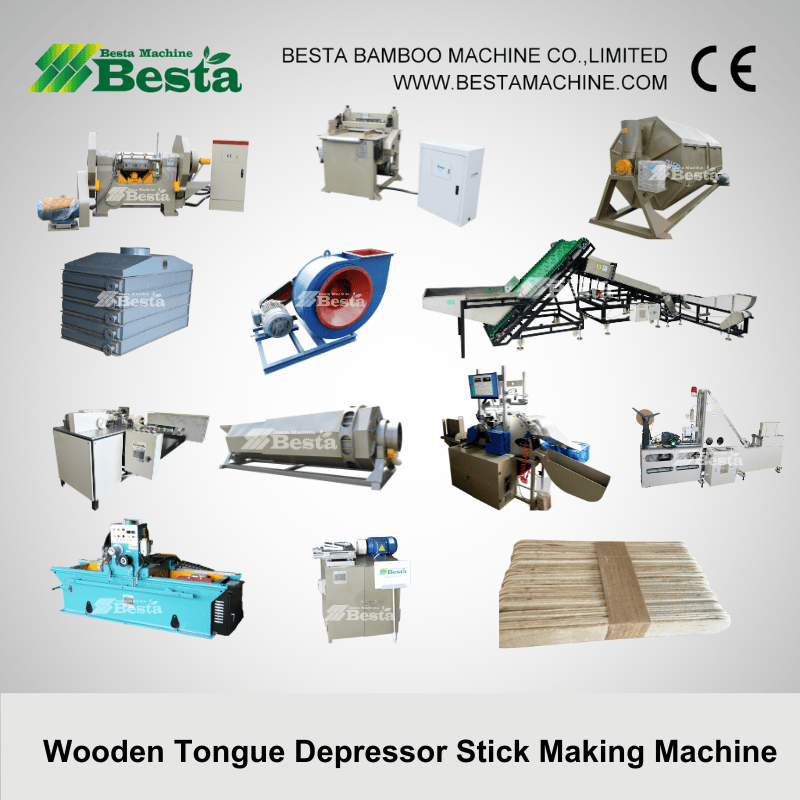

Wooden Tongue Depresssor Stick Making Production Line -Besta Machine, China Your best machine supplier

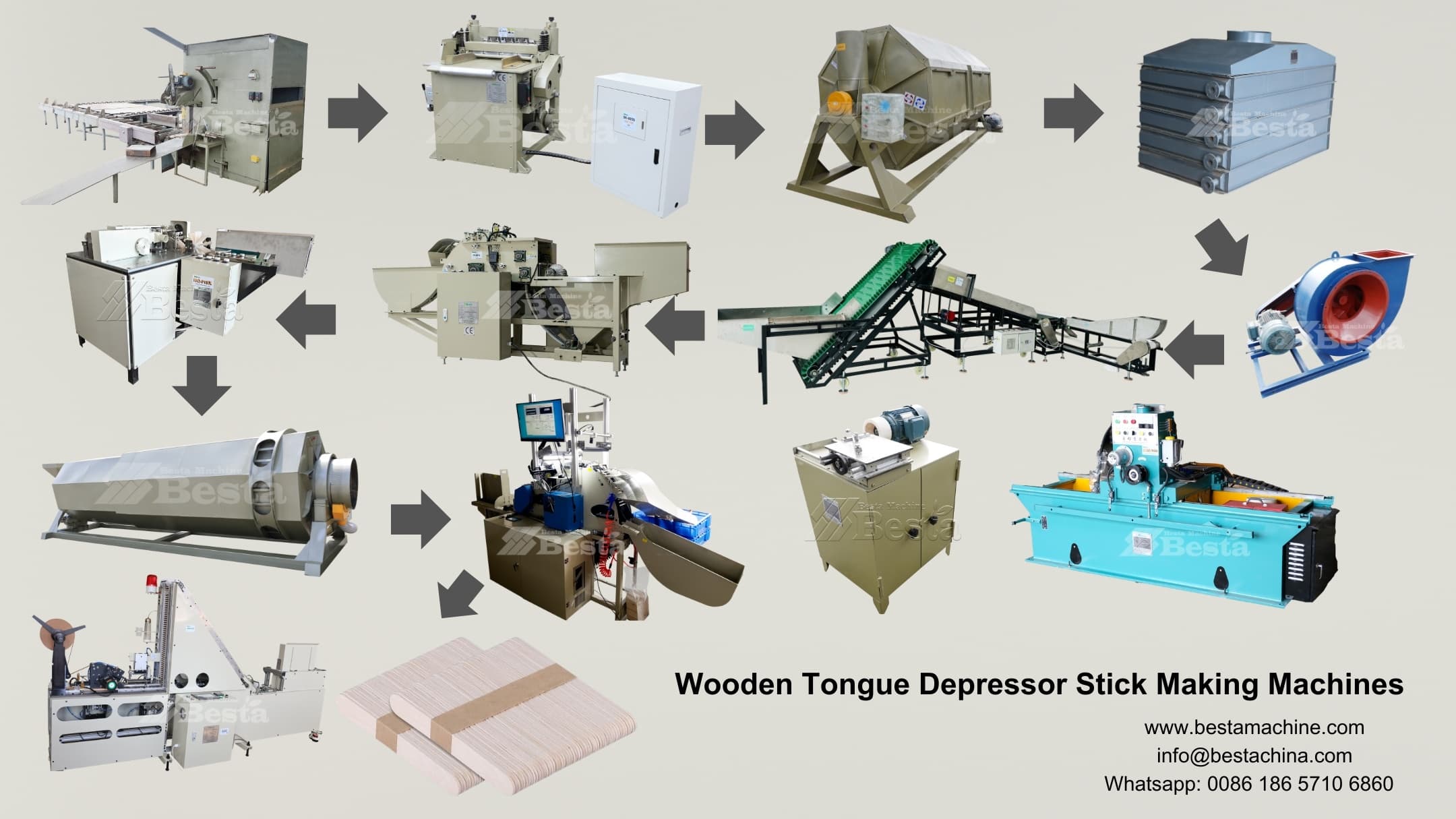

| Name | Machine Name | Function |

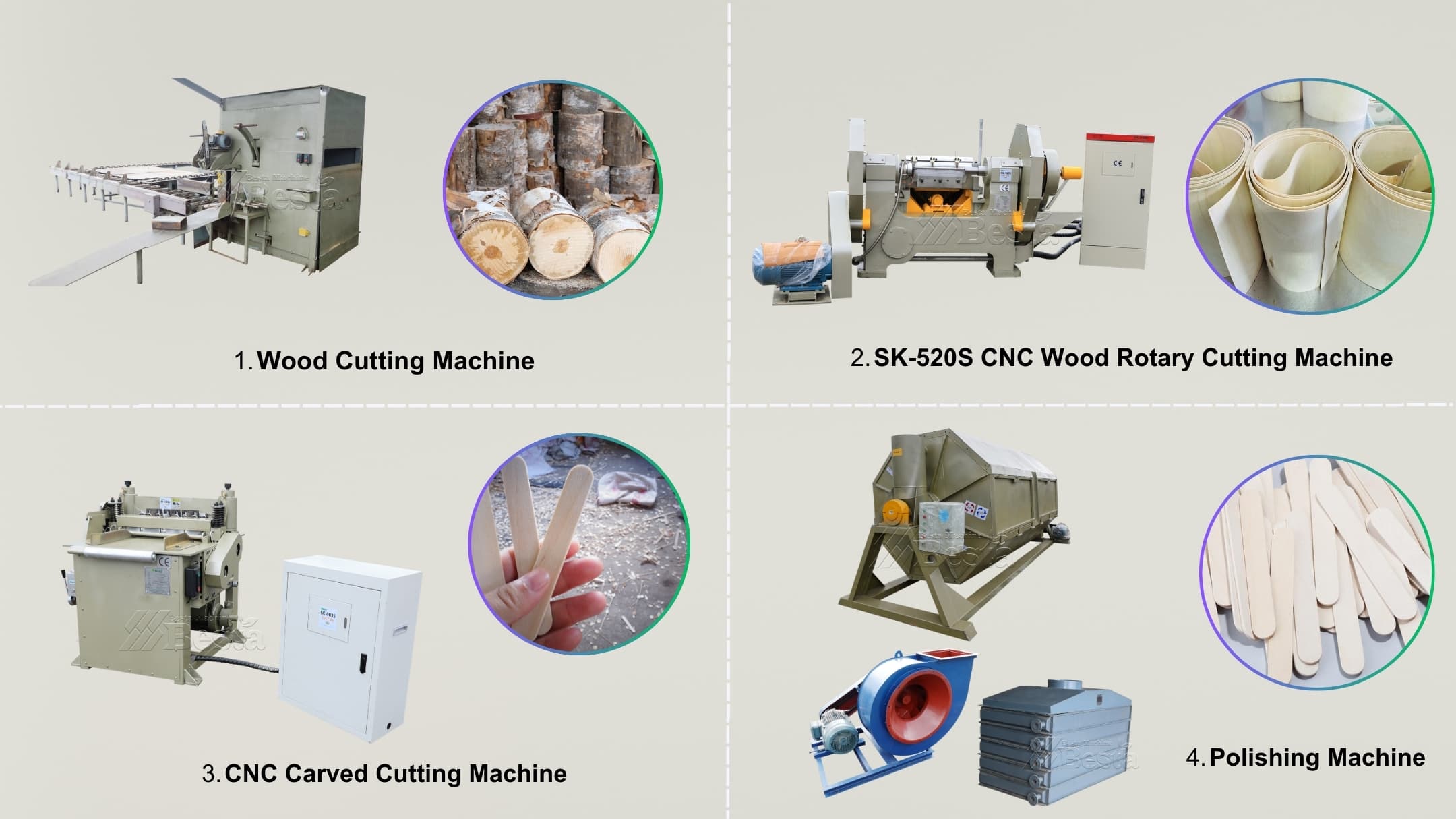

| 1 | Wood Cutting Machine | Cut the wood into certain length. For example 380MM |

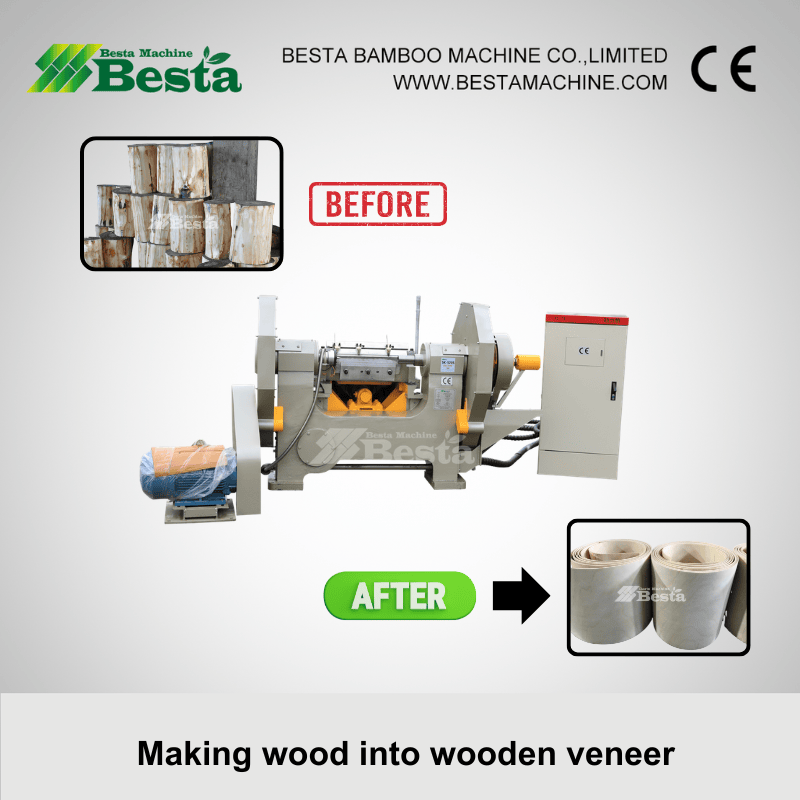

| 2 | CNC Wood Rotary Cutting Machine | After wood boiling, we will remove the wooden barks first and then do the wood rotary cutting process.
Rotary cutting wood into 1.75 mm thickness (If the dried product thickness is 1.6mm) |

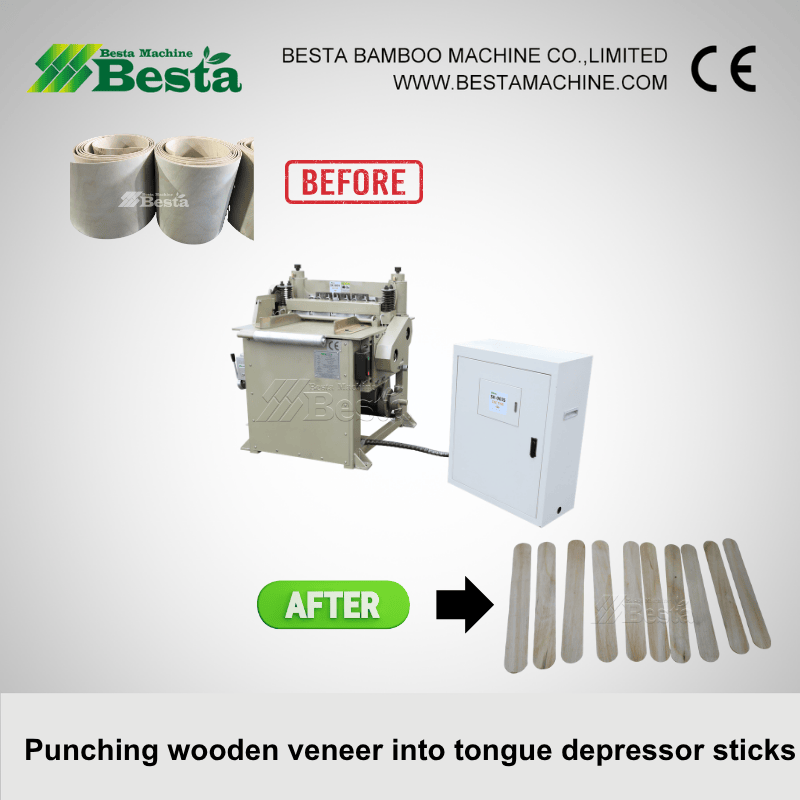

| 3 | CNC Wooden Ice Cream Stick Carved Cutting Machine | 150mm tongue depressor stick Cutting Process (Punching Process) |

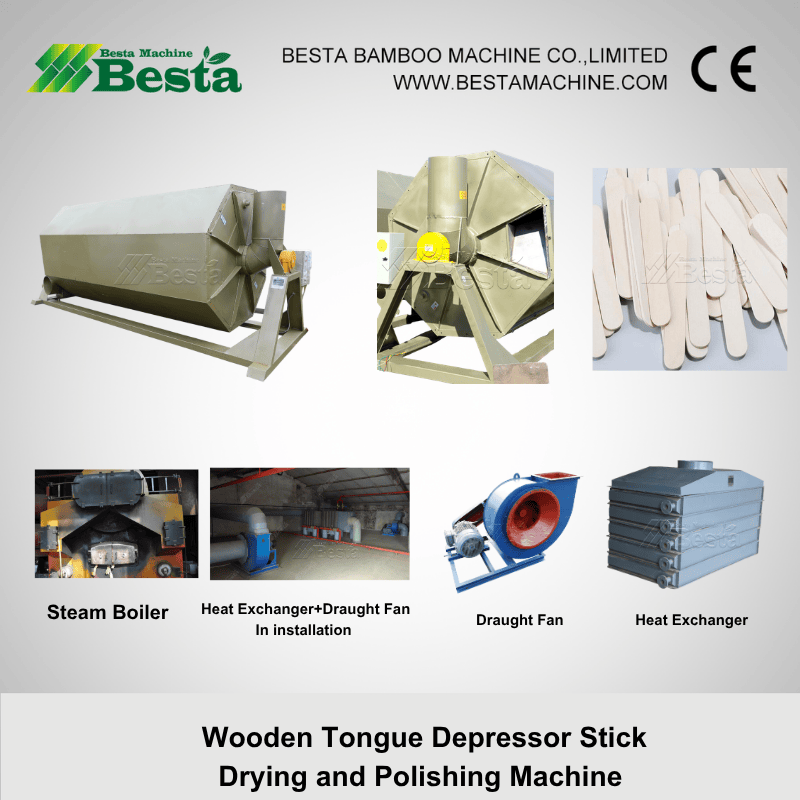

| 4 | Wooden Ice Cream Stick Polishing Machine | Stick Drying and Polishing Machine |
| 5 | Draught Fan | It is worked with stick polishing machine |
| 6 | Heat Exchanger | It is worked with stick polishing machine |
| 7 | Electro-magnetism Blade
Grinding Machine |
Grinding wood rotary cutting blade and press bar |

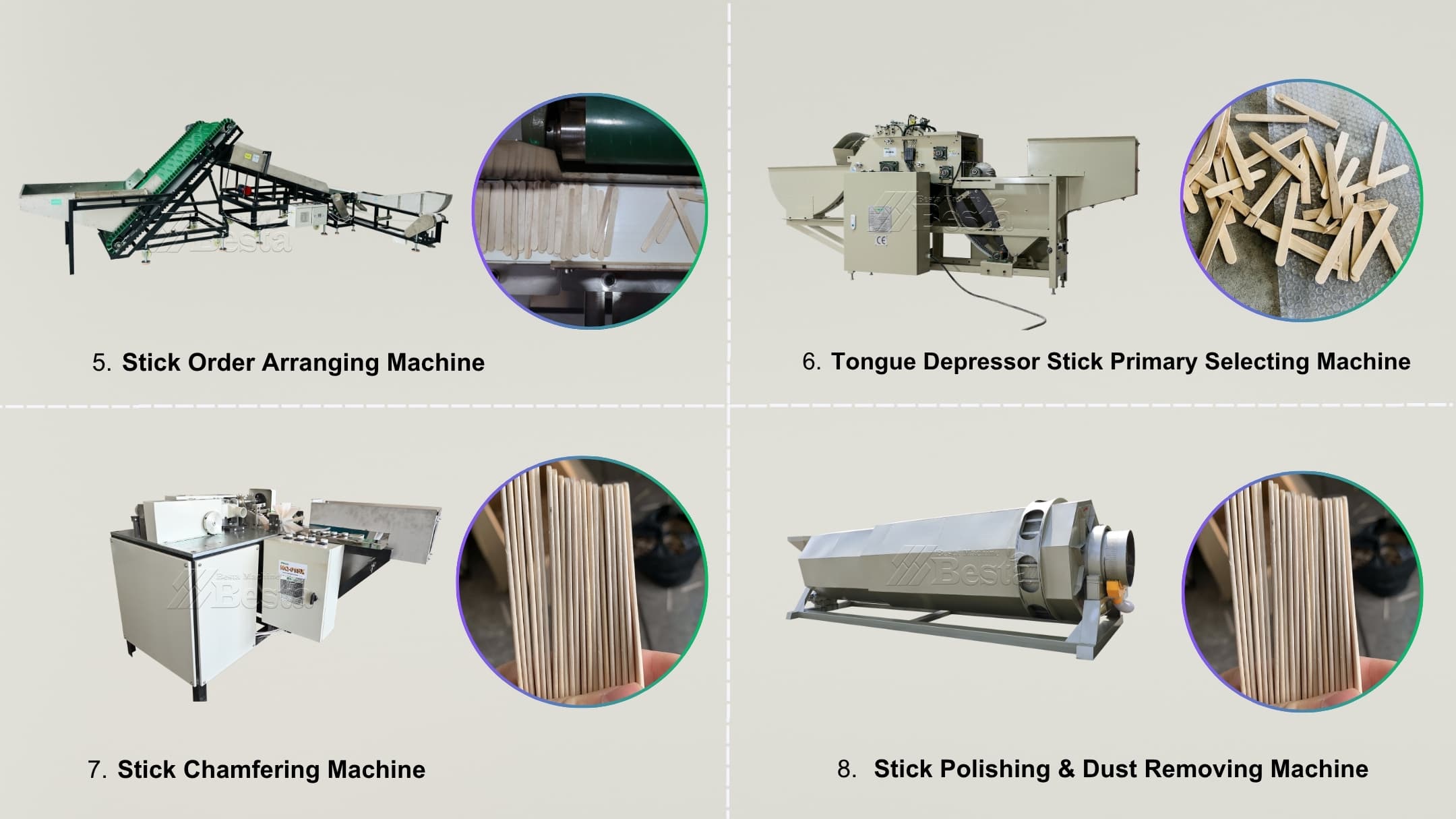

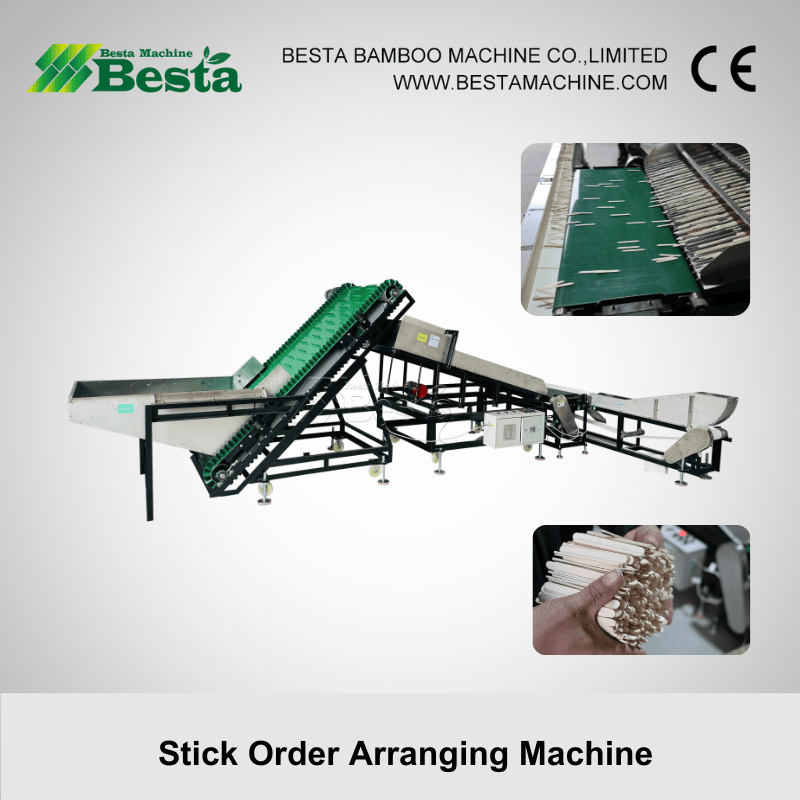

| 8 | Stick Order Arranging Machine | Order arranging the wooden tongue depressor into good order |

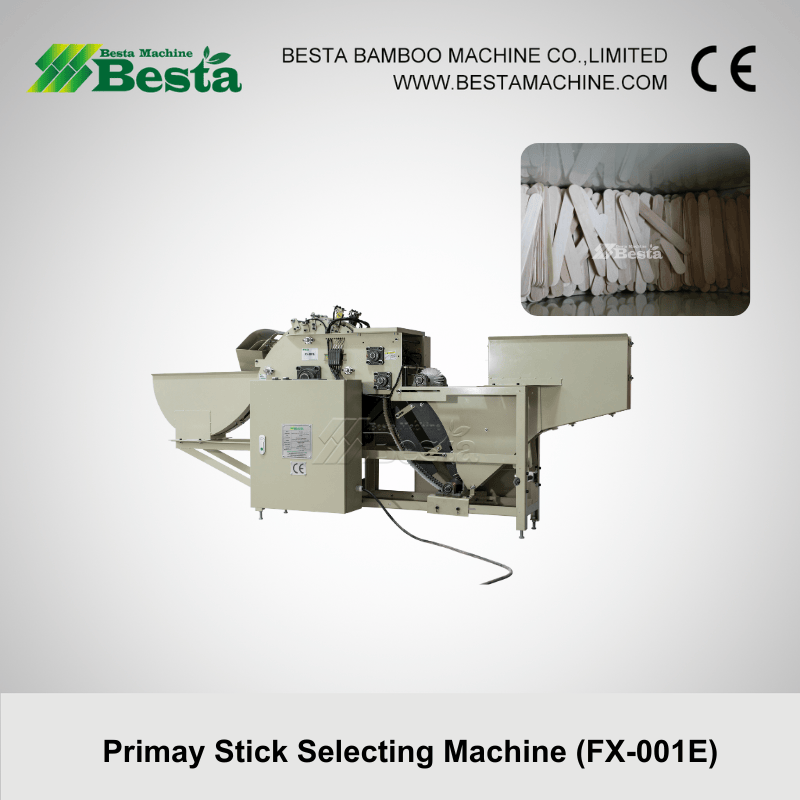

| 9 | Stick Primary Selecting Machine | Remove unqualified wooden tongue depressor sticks which are regarded as wood wastage.
Product Size: 150MM*18MM |
| 10 | Wooden Ice Cream Stick Chamfering Machine | Make a semi-circular chamfer on the rectangular wooden tongue depressor sticks |
| 11 | Dust Removing and Further Polishing Machine | Further polishing the edge of wooden tongue depressor and removing the dust. |

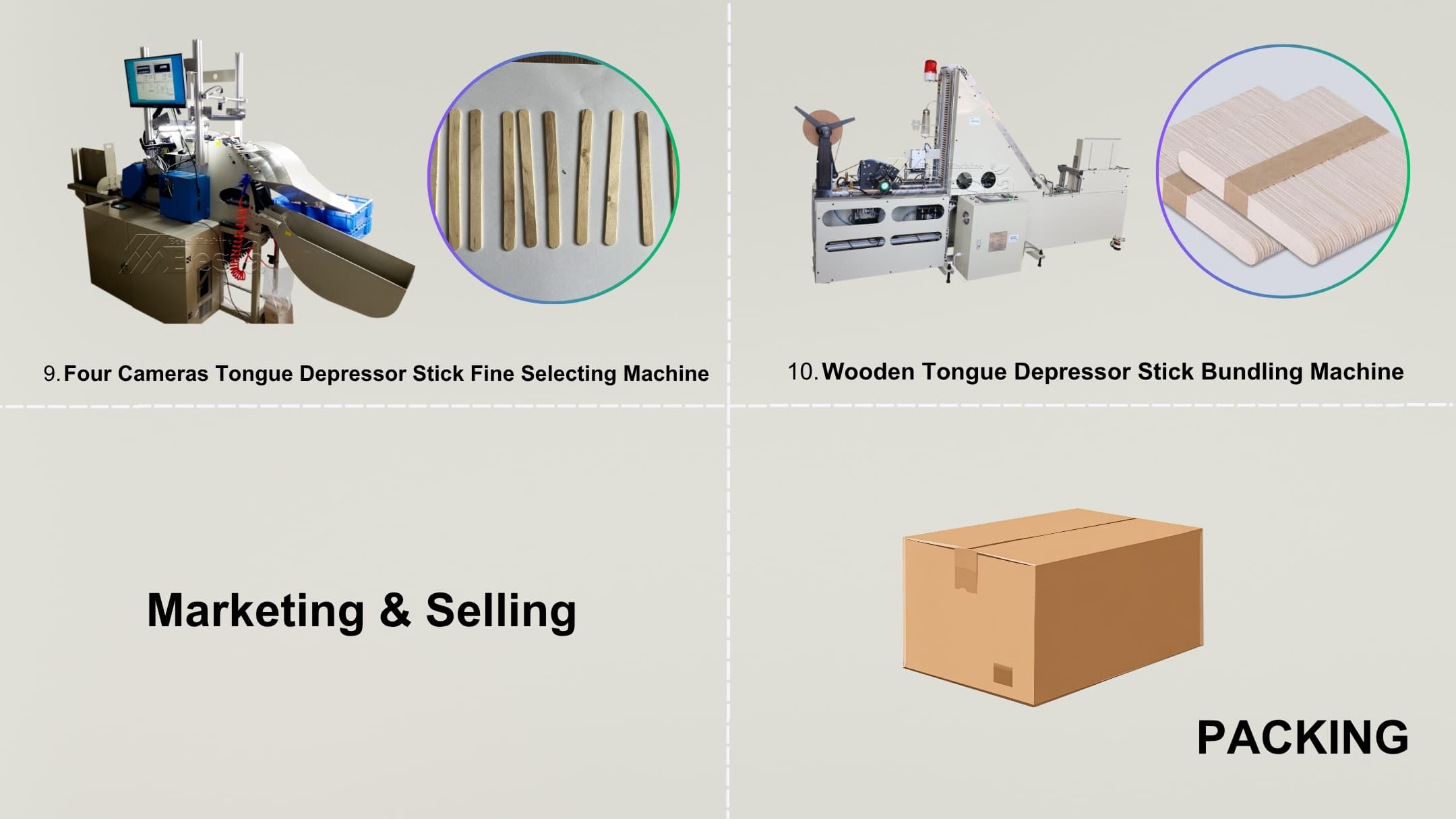

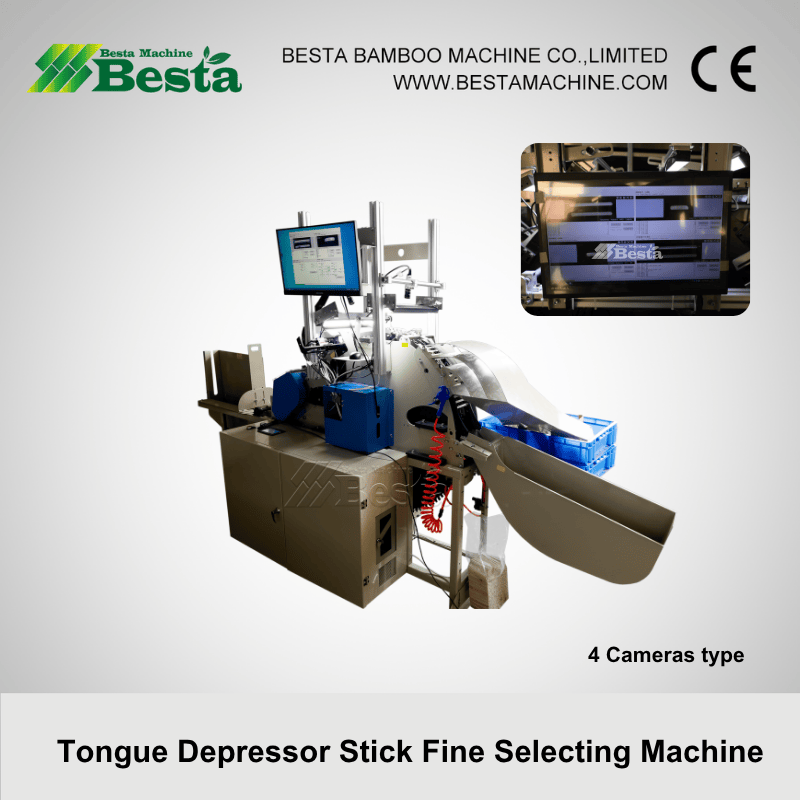

| 12 | Wooden Tongue depressor stick visually selecting machine (4 Cameras type, colorful camera) | Selecting ice cream sticks using a visual system |

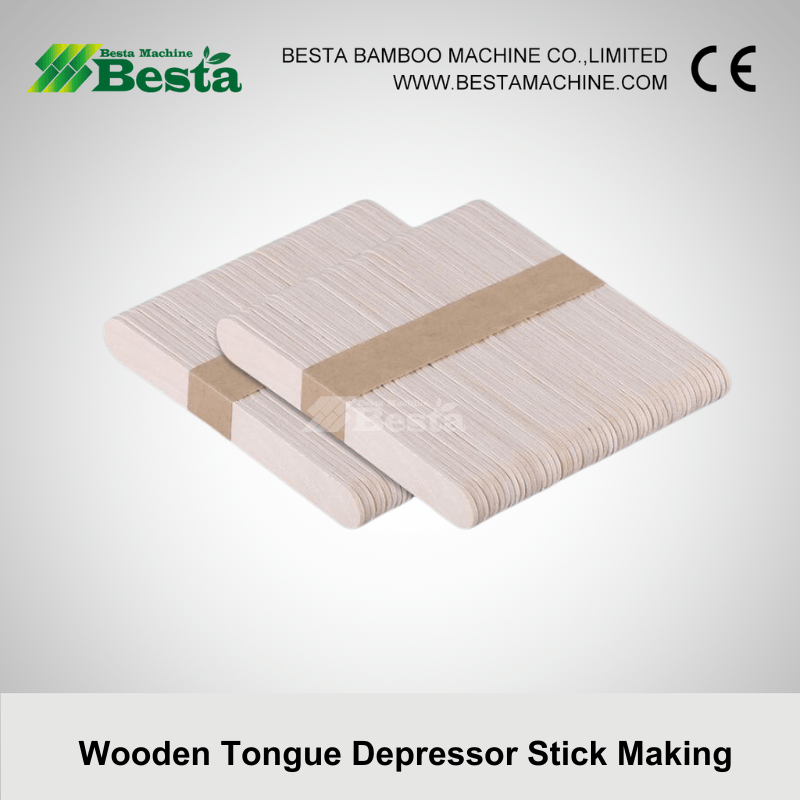

| 13 | Wooden Ice Cream Stick Bundling Machine | Ice cream stick bundling, 50 PCS/Bundle |
| 14 | Conveyors | Used for machine-to-machine connections to enable automation. |
| 15 | Steam Boiler | This equipment is an auxiliary device that provides steam. |
| 16 | Dust Collector | |
| 17 | Air Compressor | Used in conjunction with ice cream stick primary selecting machine, visually selecting machine, bundling machine |

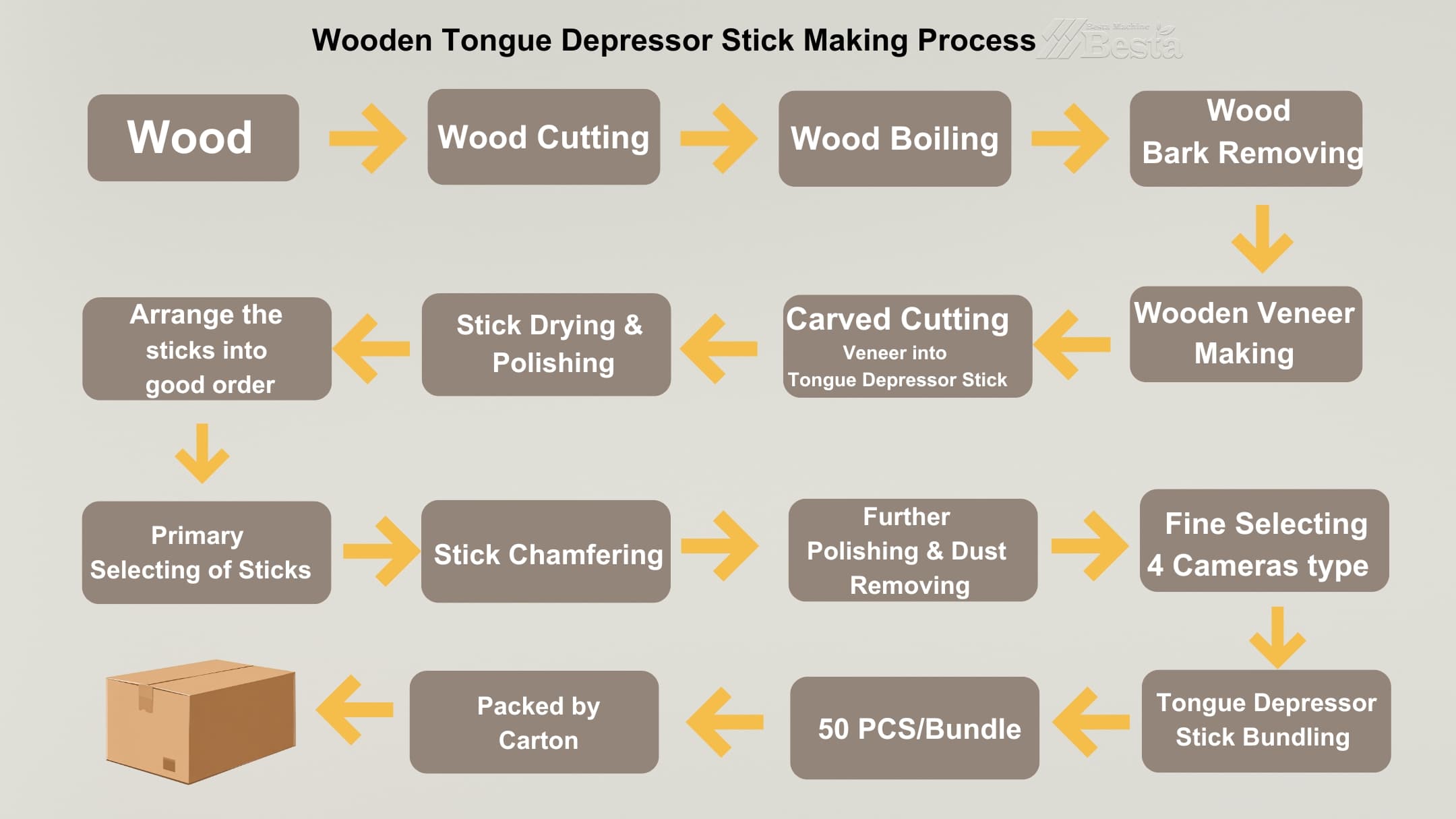

The Crafts of Making wood into wooden tongue depressor sticks

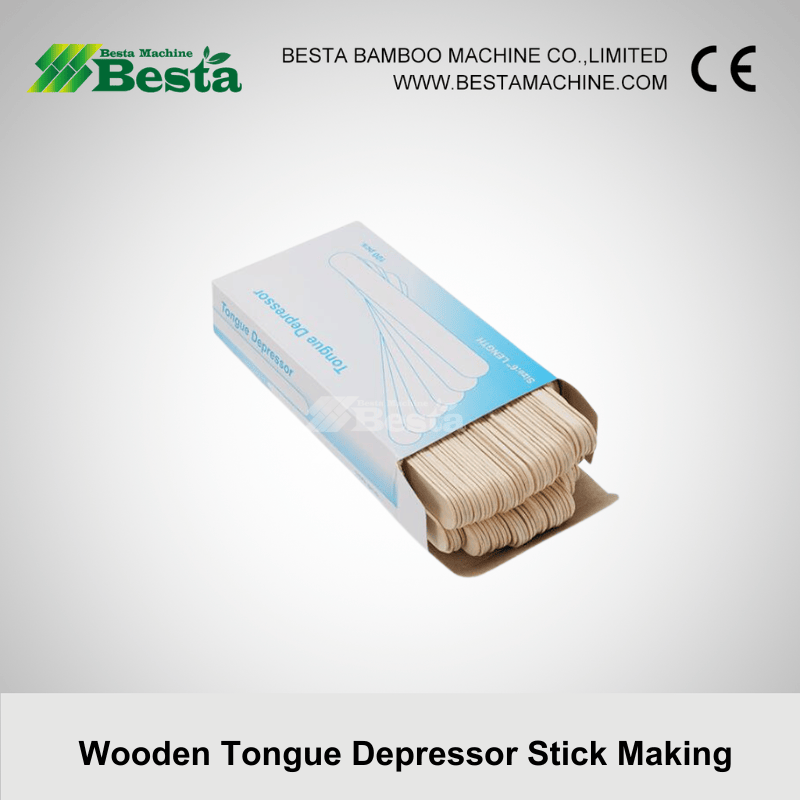

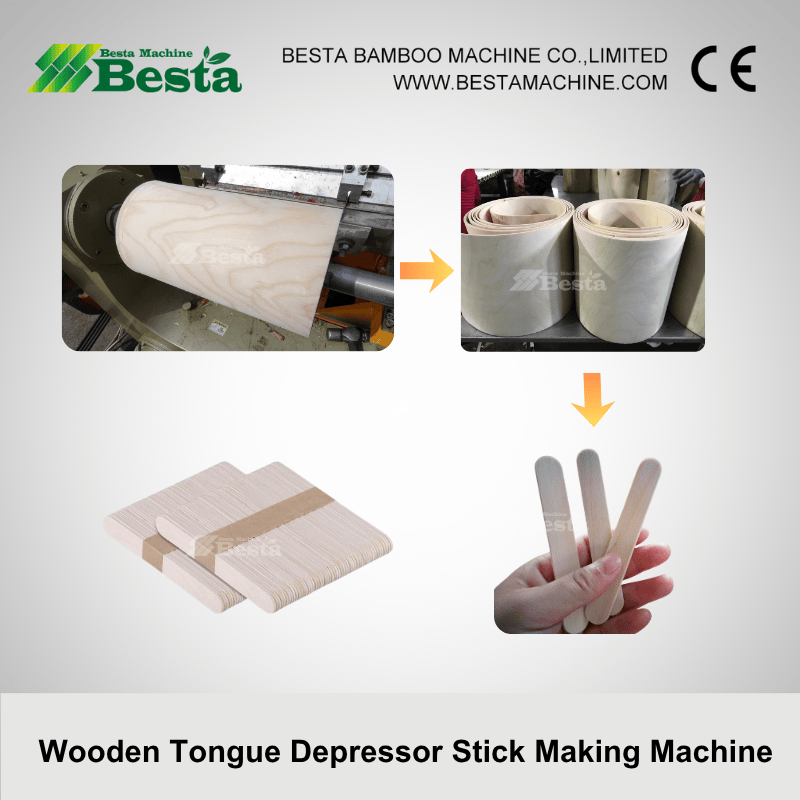

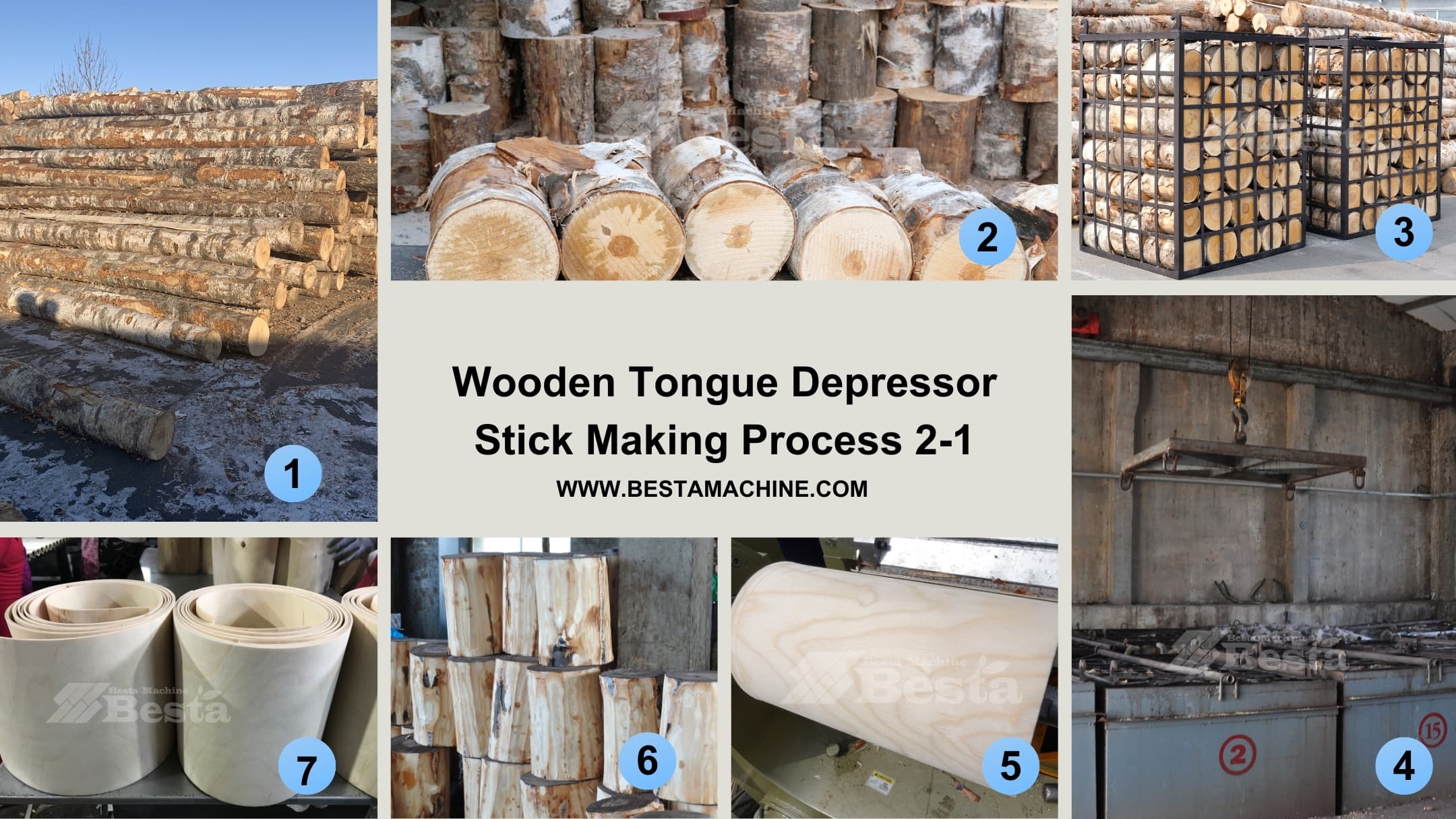

Cut the wood into certain length –> Wood Steaming –> Wooden Bark Peeling –> using CNC Rotary cutting machine to rotary cutting a wood into veneer with a certain thickness (1.75 MM) –> CNC tongue depressor stick punching machine to punch wooden veneer into 150mm*19.4mm tongue depressor sticks –> Product drying –> Obtaining dried tongue depressor sticks –> Using a tongue depressor sticks sorting machine to sort the products (Stick Order Arranging)–> Initial selection (It is also called primary selecting—removing products considered unqualified waste, those with obvious thin/narrow/bent problems) –> Chamfering and surface removal (Making round edge) –> Continued polishing and dust removal, polishing the tongue depressor sticks –> Arrange the tongue depressor sticks into good order again –> tongue depressor sticks selection, using a ice cream stick visual selecting machine to further select the chamfered ice cream sticks, making the inspection process more precise –> bundling machine to bundle 50 sticks/bundle –> Finished product, boxed.
Feel free to contact us for professional services and advice.
