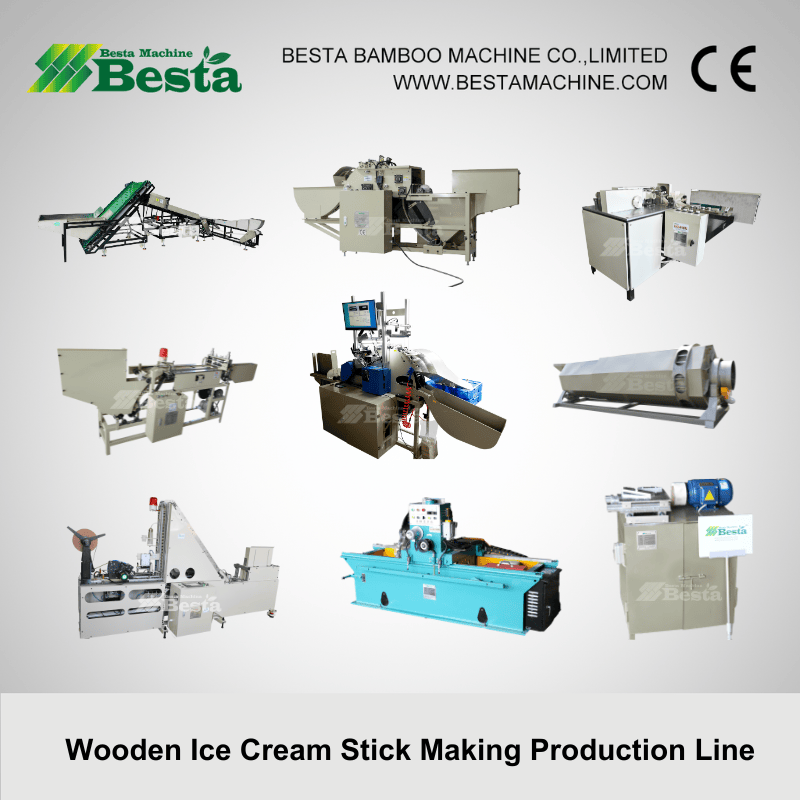

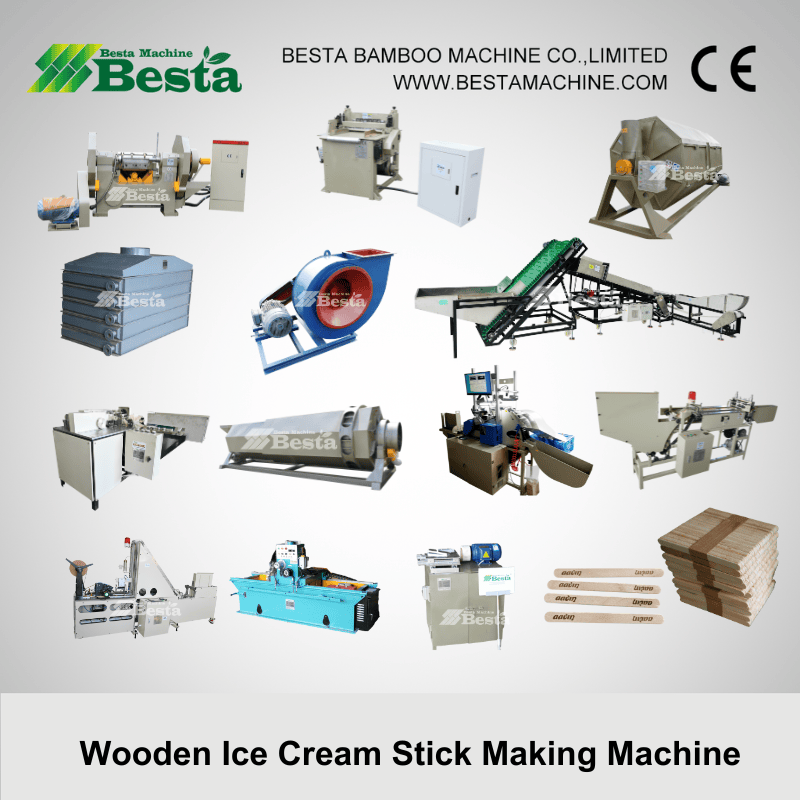

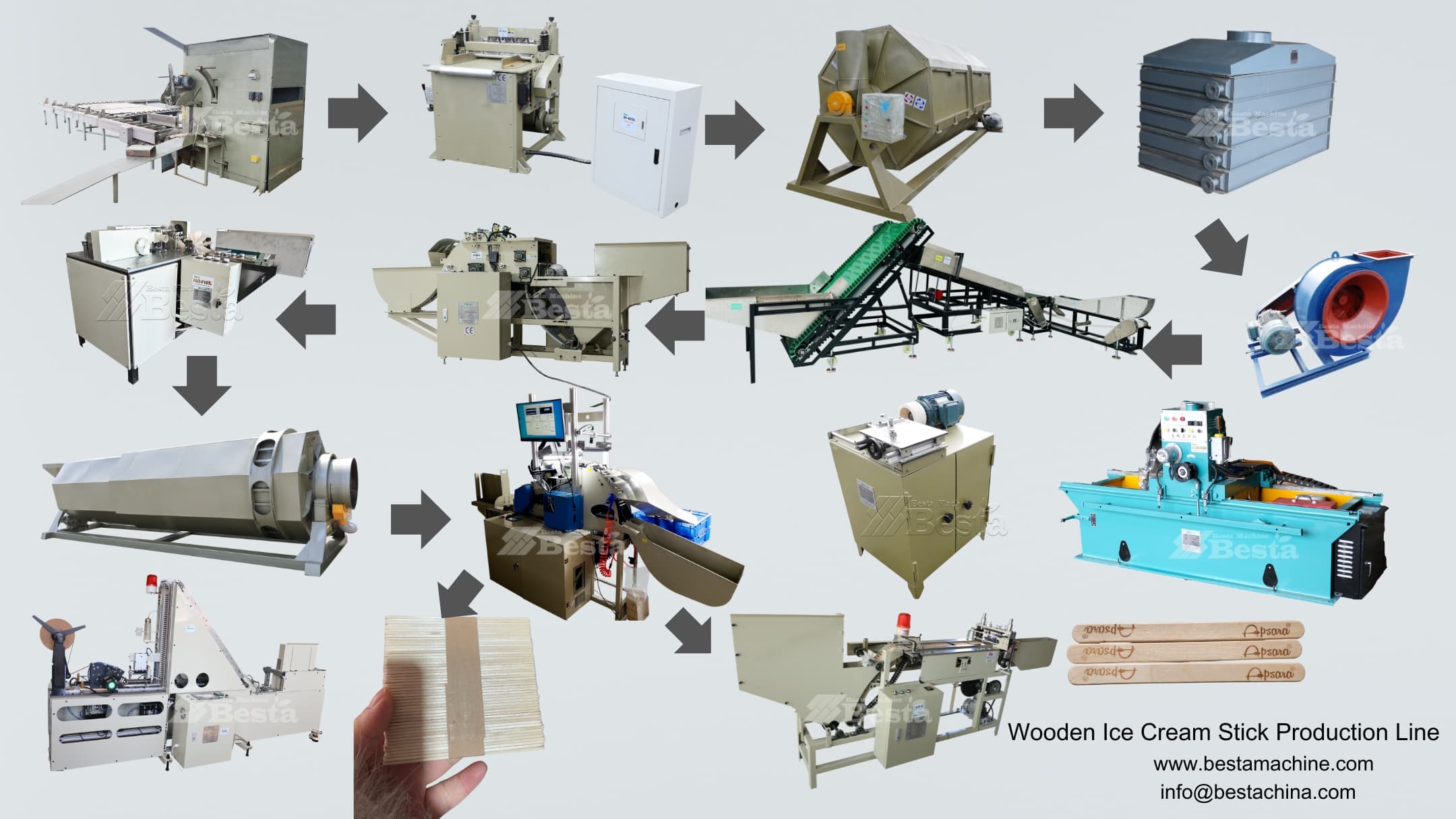

Wooden Ice Cream Stick Making Production Line is consisted by the following machines,
| Name | Machine Name | Function |

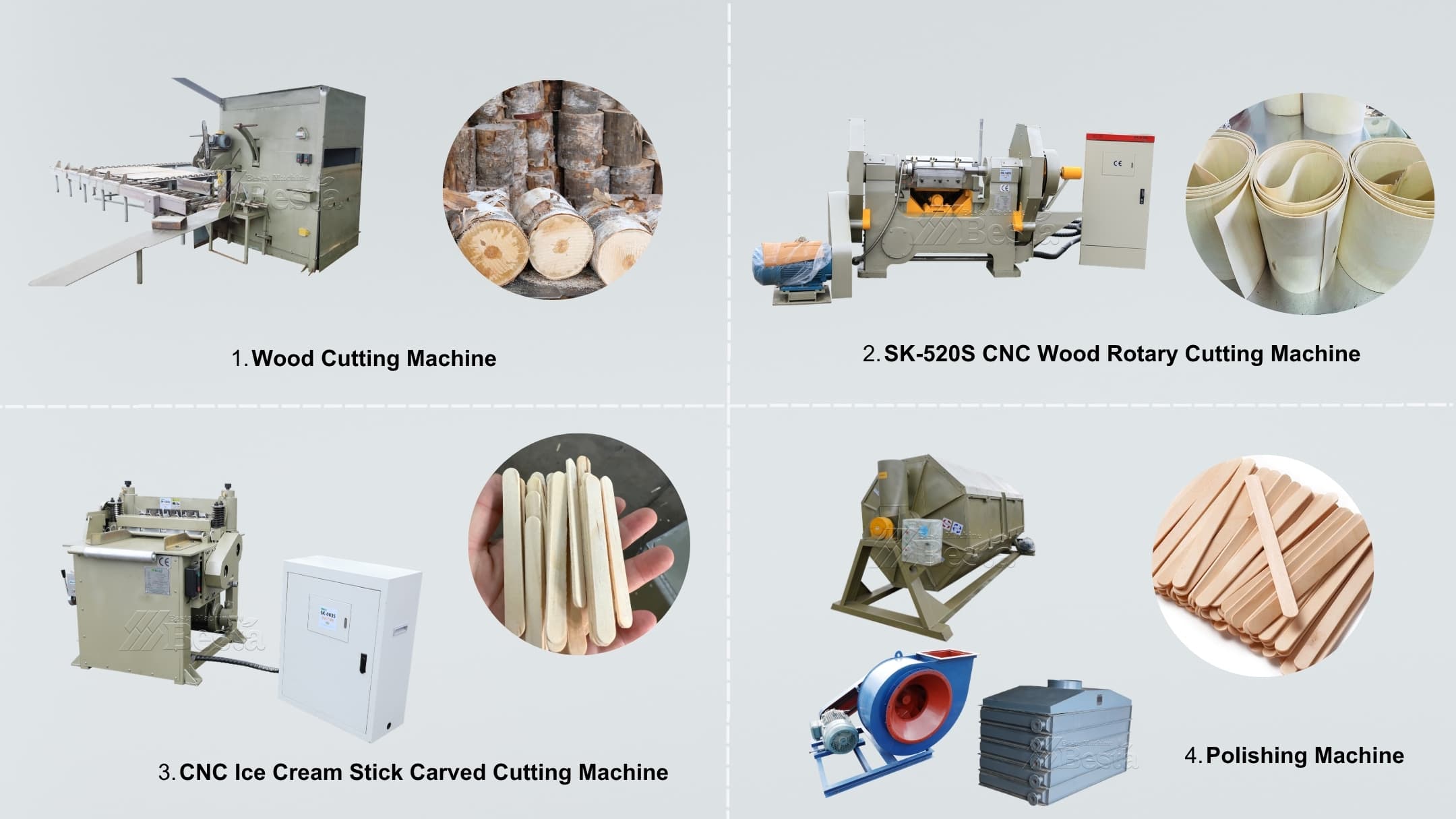

| 1 | Wood Cutting Machine | Cut the wood into certain length. For example 380MM |

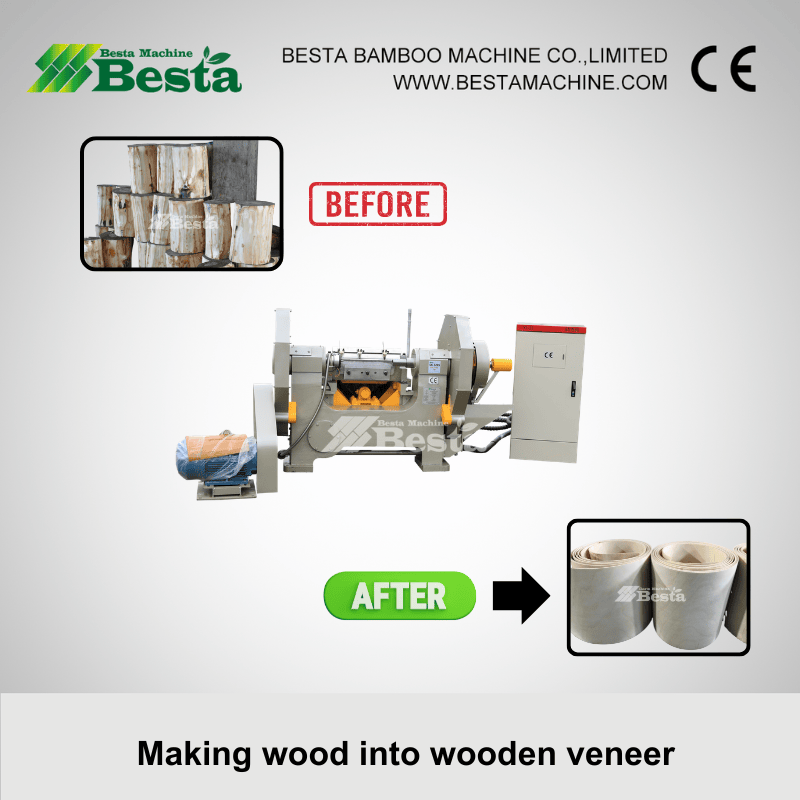

| 2 | CNC Wood Rotary Cutting Machine | After wood boiling, we will remove the wooden barks first and then do the wood rotary cutting process.
Rotary cutting wood into 2.18mm thickness |

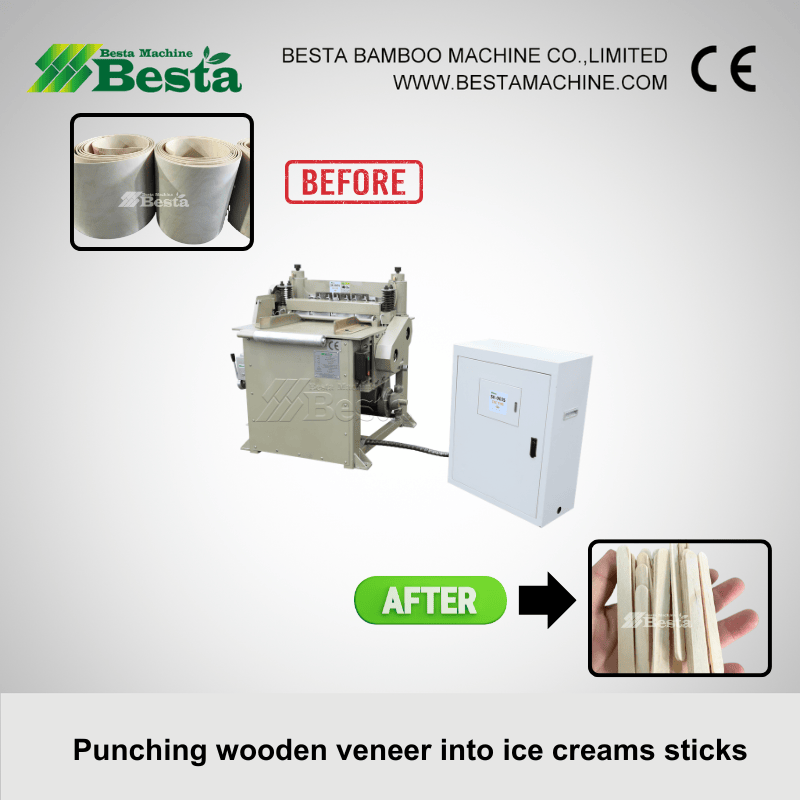

| 3 | CNC Wooden Ice Cream Stick Carved Cutting Machine | 93/114mm*10*2mm Ice Cream Stick Carved Cutting Process (Punching Process) |

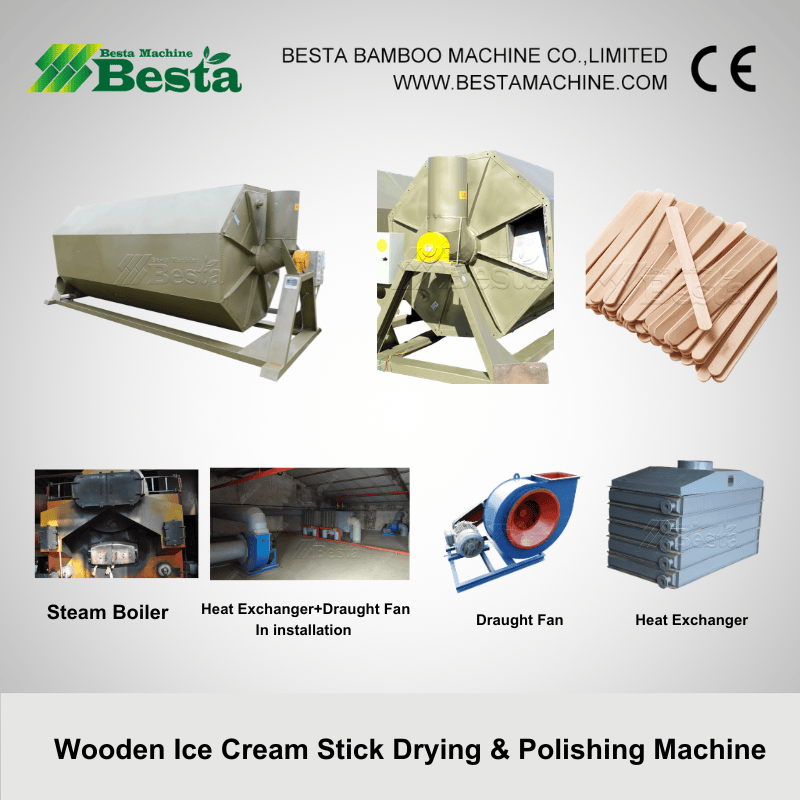

| 4 | Wooden Ice Cream Stick Polishing Machine | Stick Drying and Polishing Machine |
| 5 | Draught Fan | It is worked with stick polishing machine |
| 6 | Heat Exchanger | It is worked with stick polishing machine |

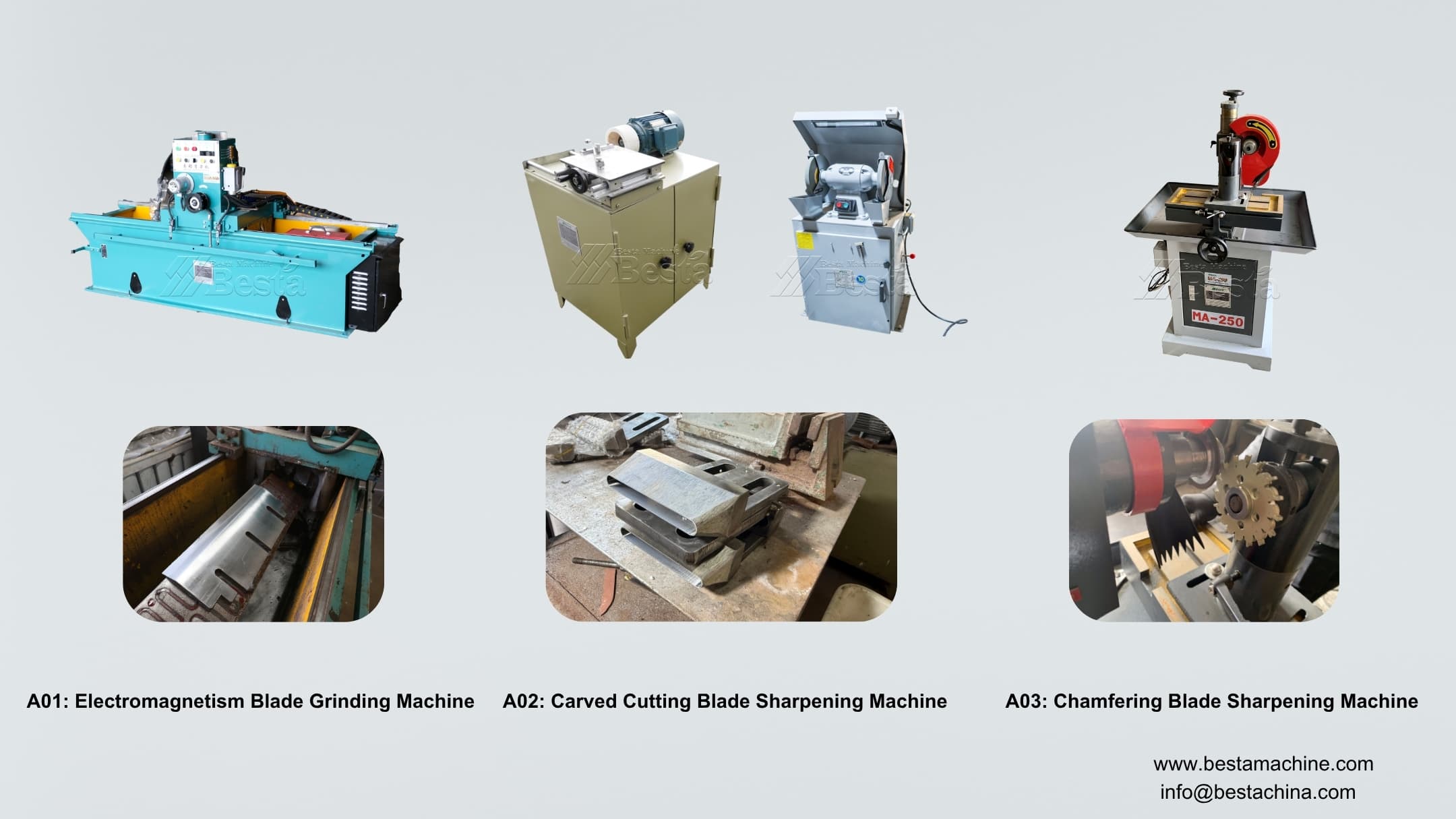

| 7 | Electro-magnetism Blade
Grinding Machine |
Grinding wood rotary cutting blade and press bar |

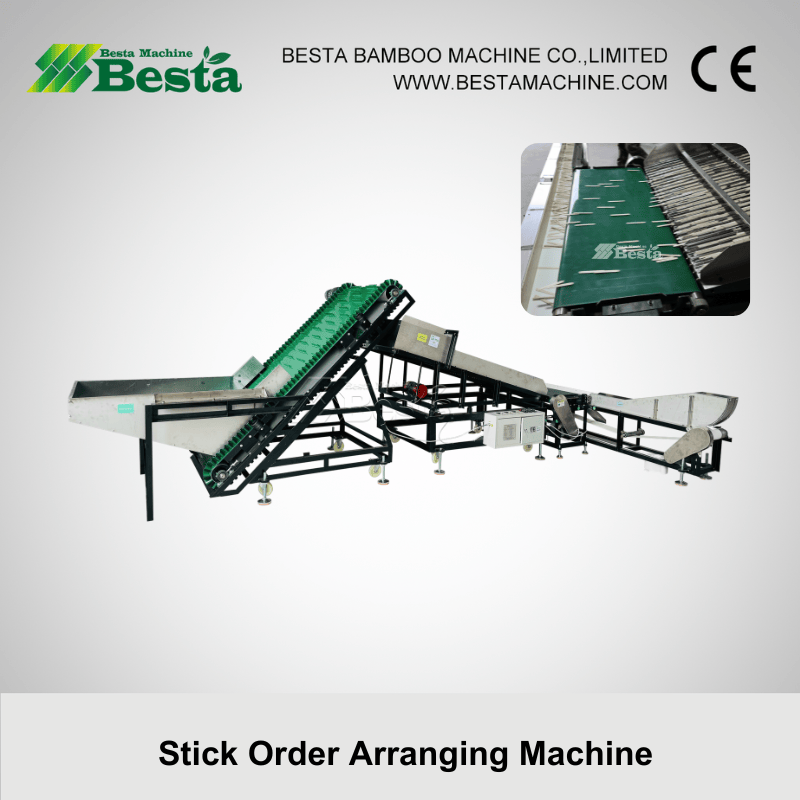

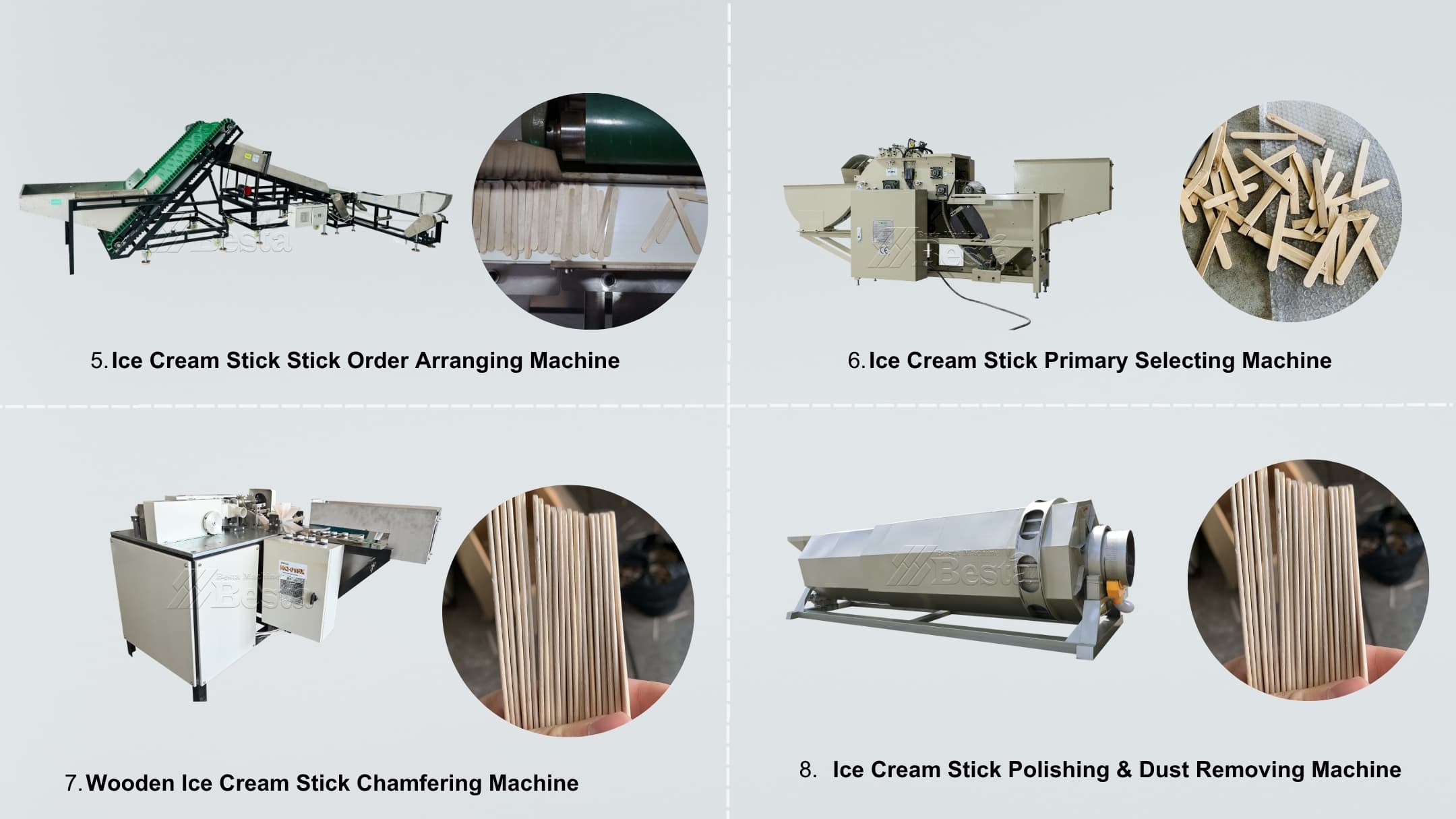

| 8 | Stick Order Arranging Machine | Order arranging the wooden ice cream sticks into good order |

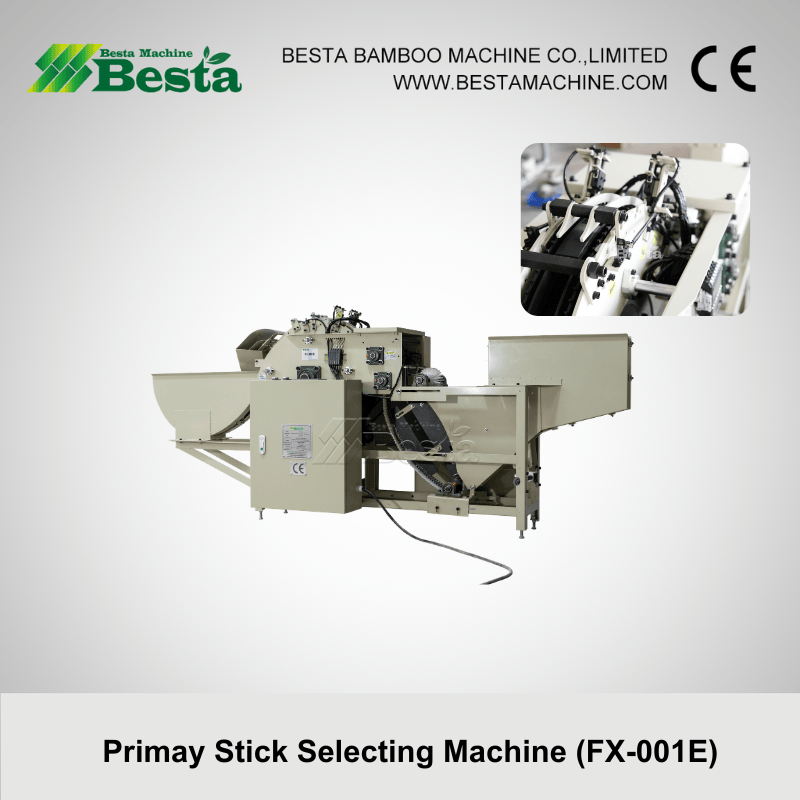

| 9 | Stick Primary Selecting Machine | Remove unqualified wooden ice cream sticks which are regarded as wood wastage.
Product Size: 114/93MM*10*2MM |
| 10 | Wooden Ice Cream Stick Chamfering Machine | Make a semi-circular chamfer on the rectangular wooden popsicle stick. |
| 11 | Dust Removing and Further Polishing Machine | After removing the popsicle sticks, dust will accumulate. We will then further polish and remove dust from the beveled popsicle sticks. |

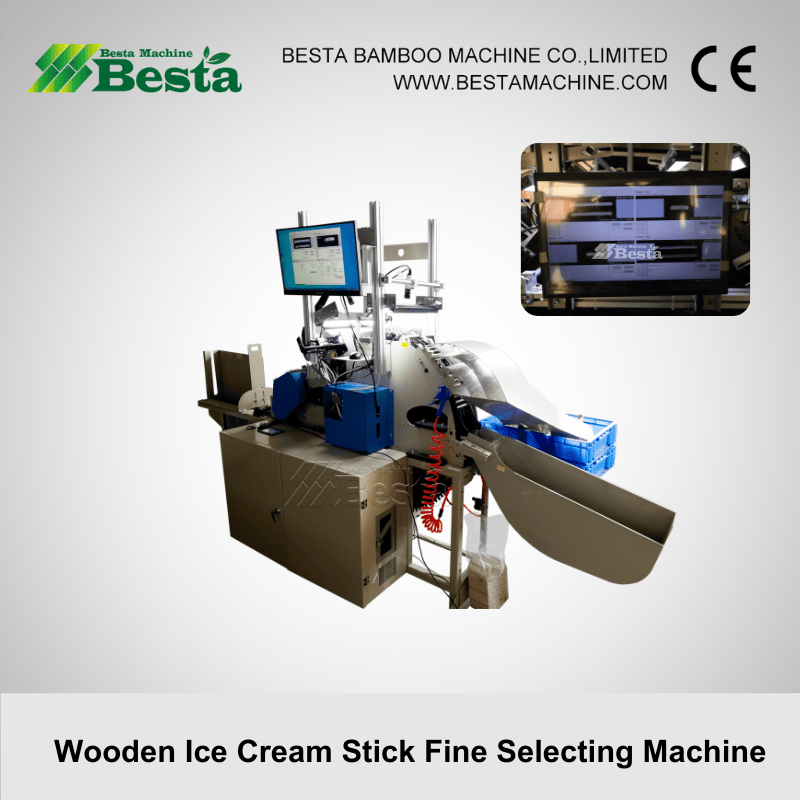

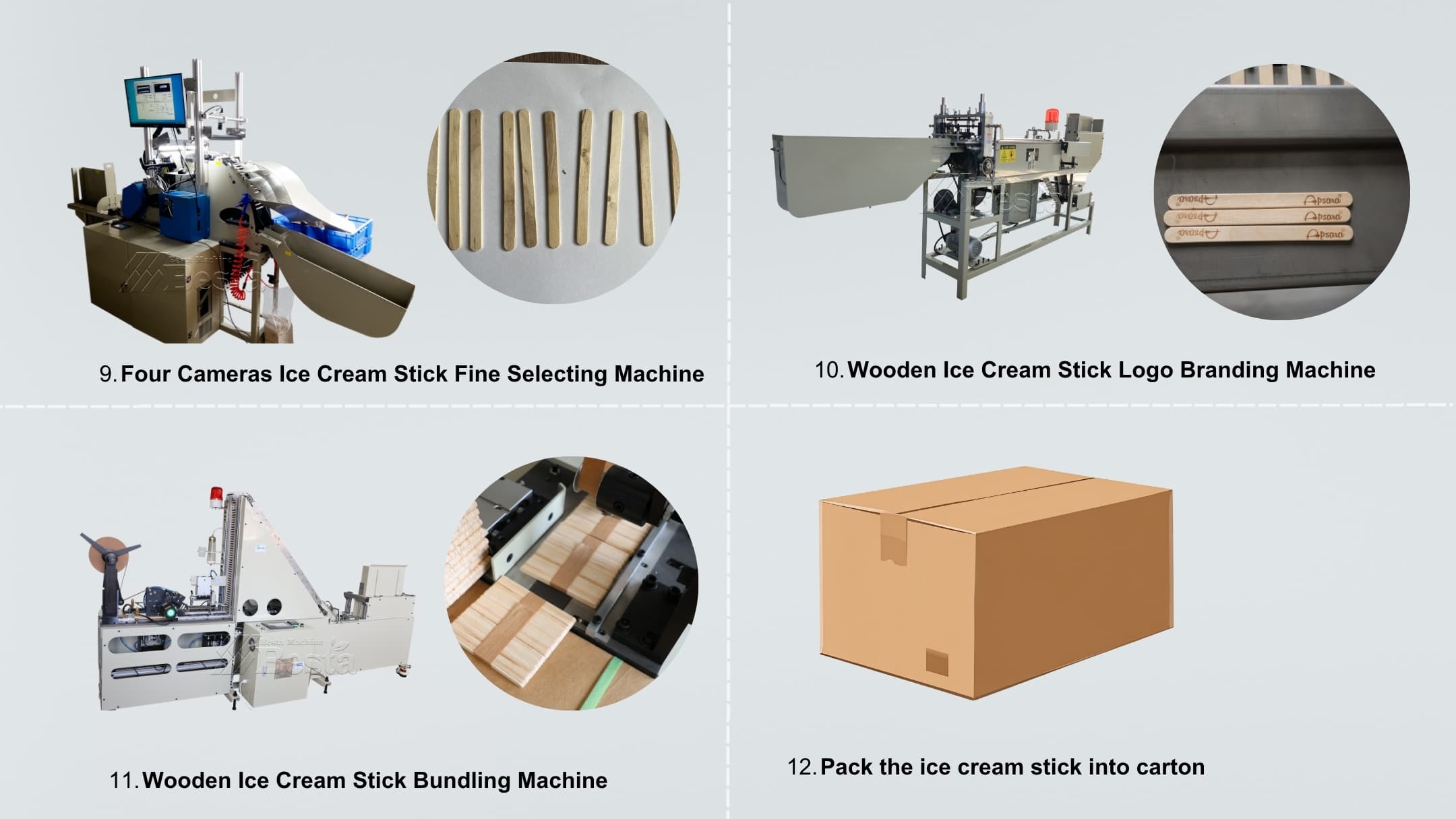

| 12 | Wooden Ice Cream Stick Image Detecting Selecting Machine | Selecting ice cream sticks using a visual system |
| 13 | Wooden Ice Cream Stick Logo Branding Machine | Based on the design provided by the customer, we create a branding mold and then perform the branding process. |

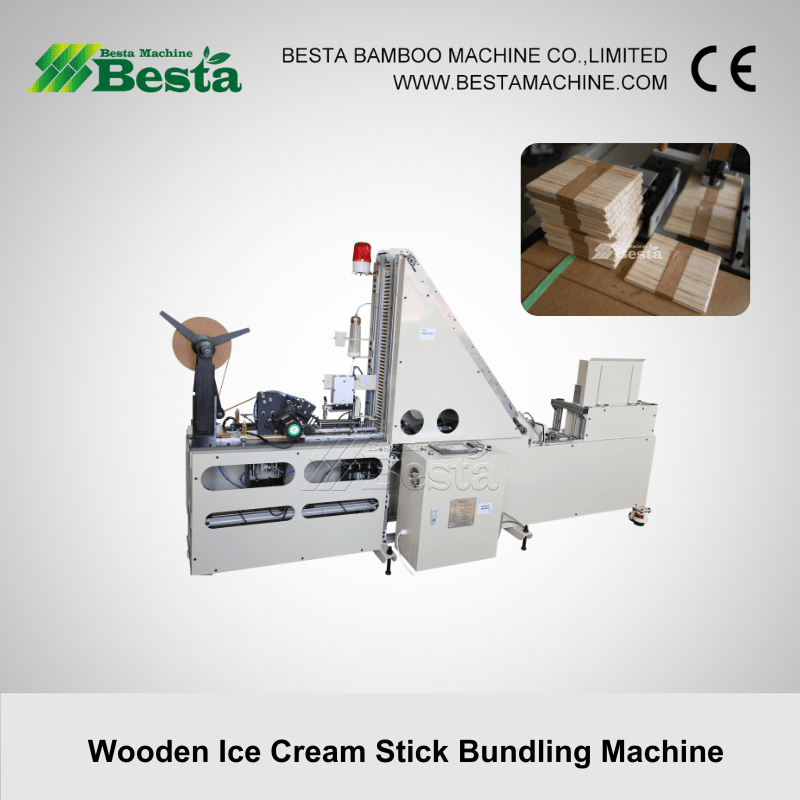

| 14 | Wooden Ice Cream Stick Bundling Machine | Ice cream stick bundling, 50 PCS/Bundle |
| 15 | Conveyors | Used for machine-to-machine connections to enable automation. |
| 16 | Steam Boiler | This equipment is an auxiliary device that provides steam. |
| 17 | Dust Collector | |
| 18 | Air Compressor | Used in conjunction with ice cream stick primary selecting machine, visually selecting machine, bundling machine |

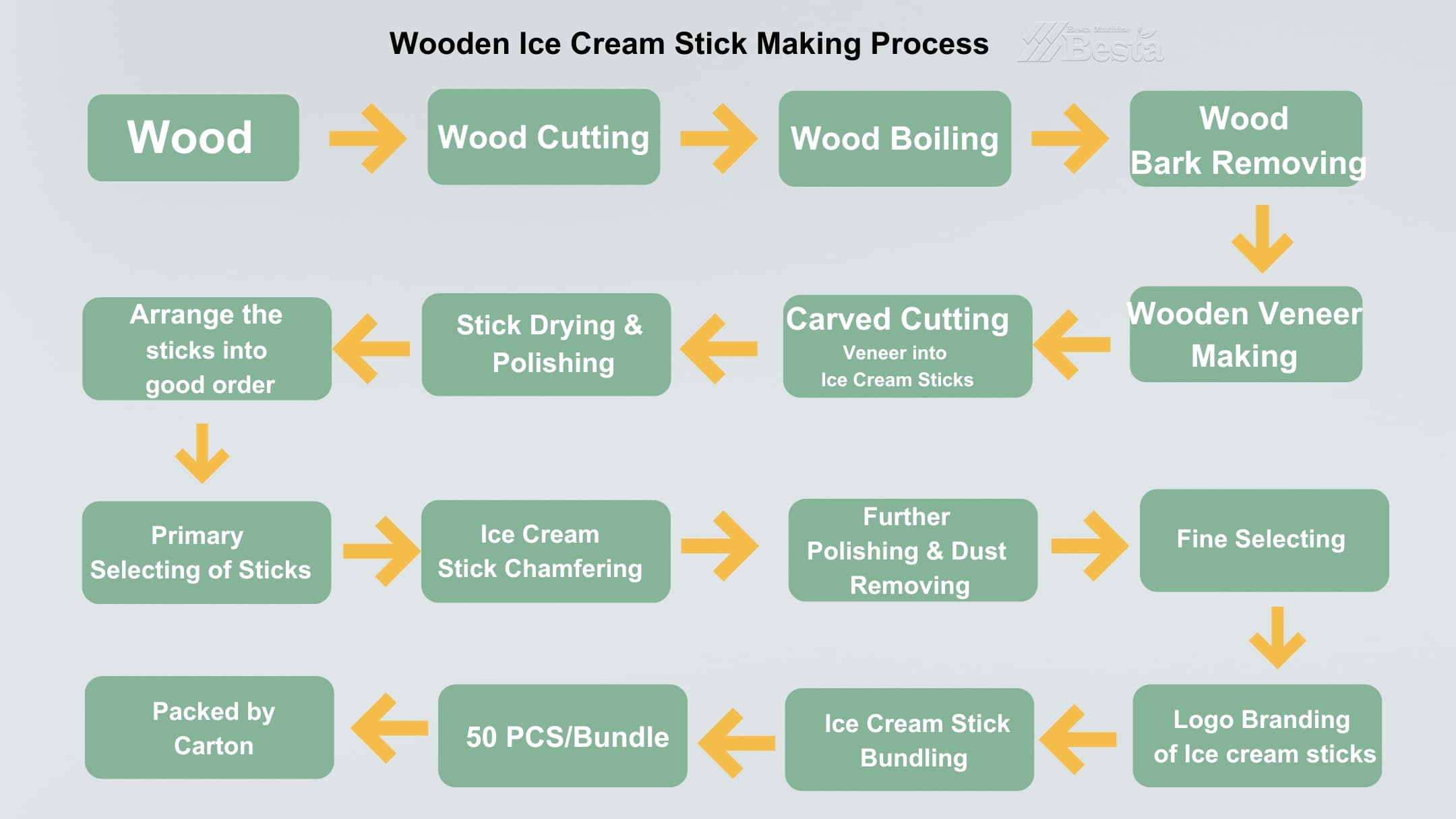

The Crafts of Making wood into ice cream sticks

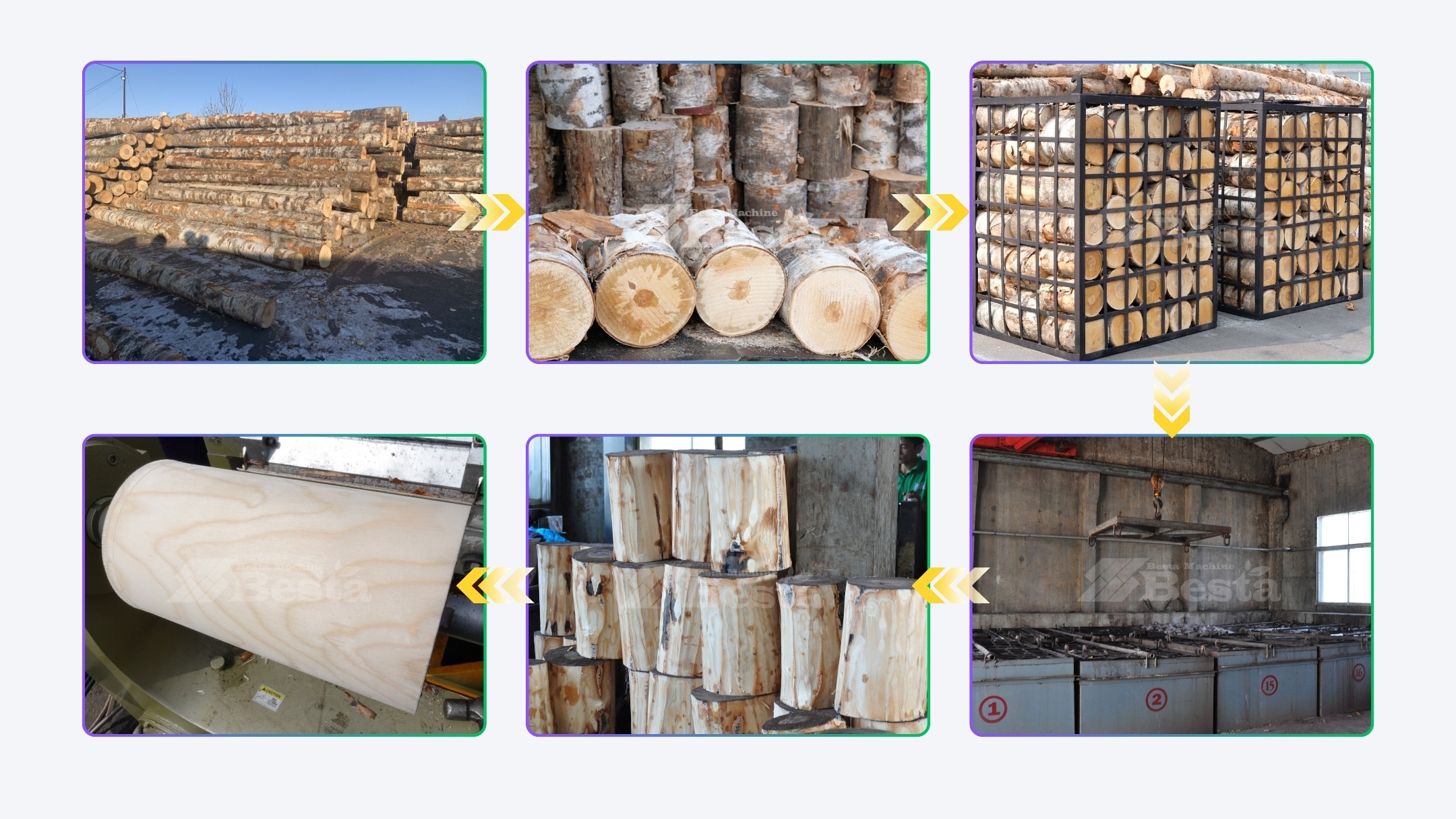

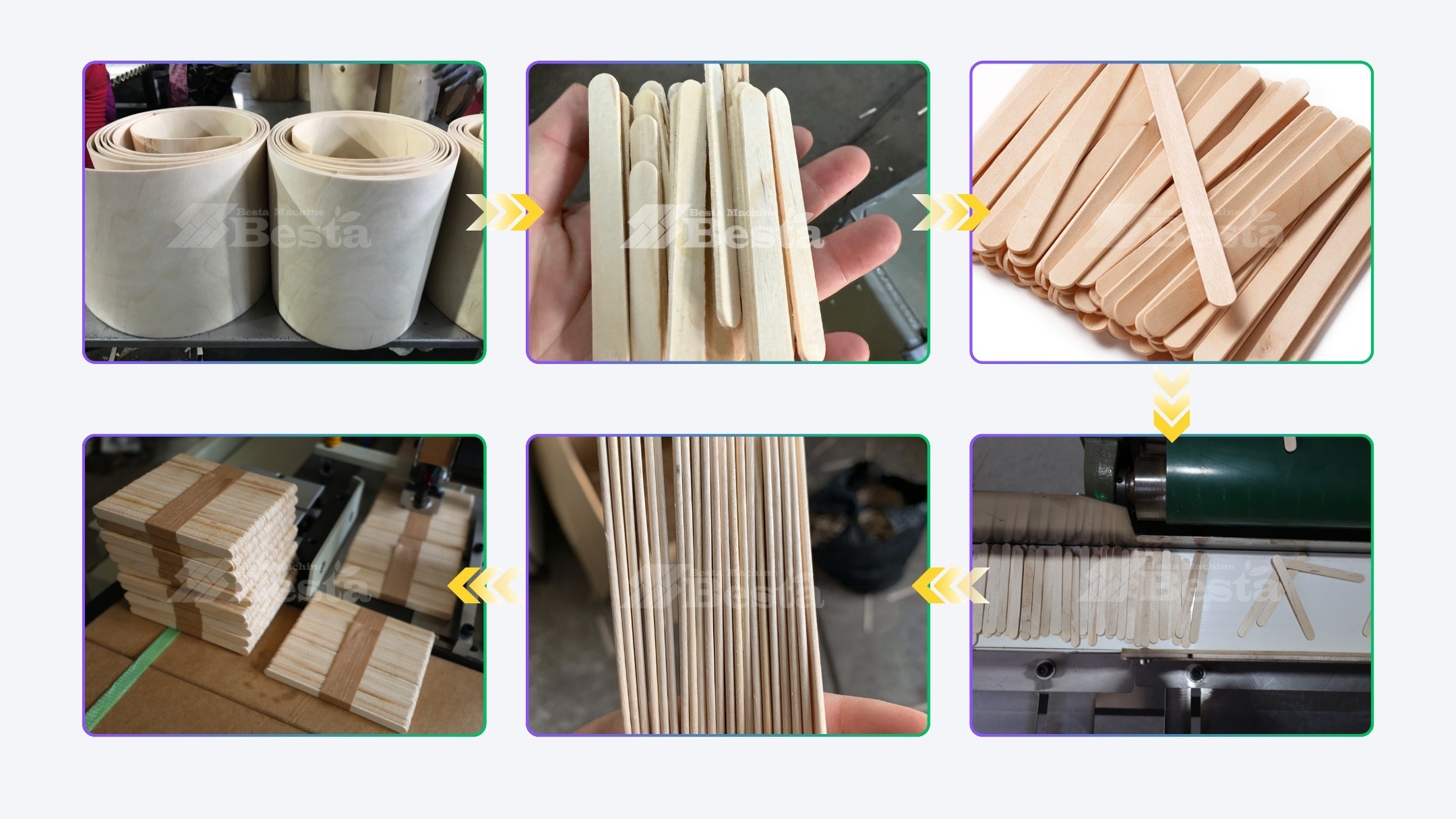

Wood sawing –> wood Steaming –> wooden bark Peeling –> Rotary cutting of wood into chips of a certain thickness (2.18MM) –> CNC punching machine to cut into 93MM or 114MM wooden ice cream sticks –> Product drying –> Obtaining dried wooden ice cream sticks –> Using a ice cream stick sorting machine to sort the products (Stick Order Arranging)–> Initial selection (removing products considered unqualified waste, those with obvious thin/narrow/bent problems) –> Chamfering and surface removal (Making round edge) –> Continued polishing and dust removal, polishing the ice cream sticks –> Arrange the wooden ice cream sticks into good order again –> wooden ice cream stick selection, using a ice cream stick visual sorting machine to further select the chamfered popsicle sticks, making the inspection process more precise –> If the product needs to be branded, use wooden ice cream stick branding machine –> If branding is not required, use a bundling machine to bundle 50 sticks/bundle –> Finished product, boxed.
