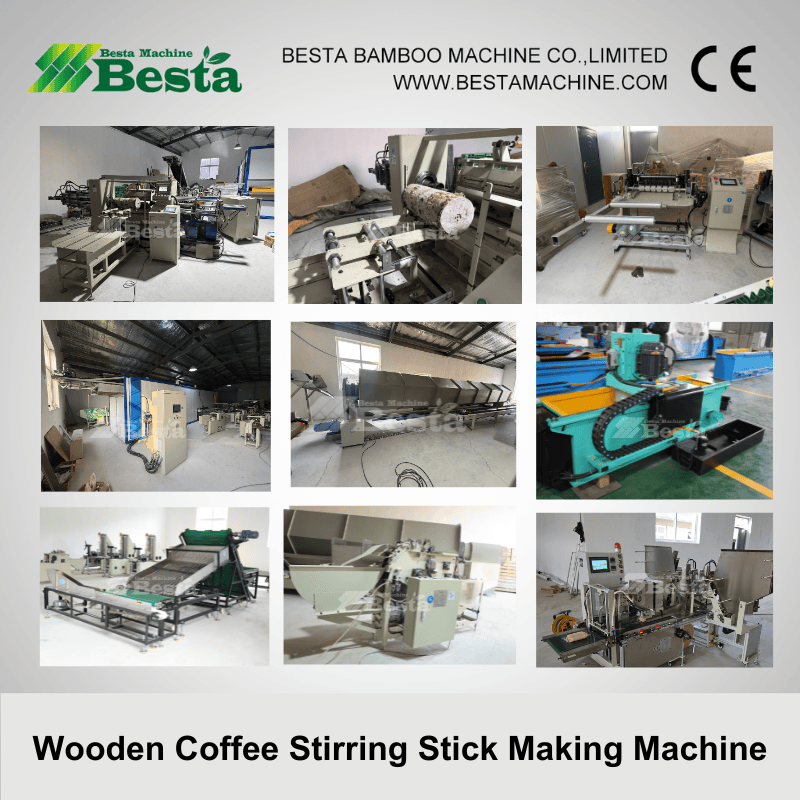

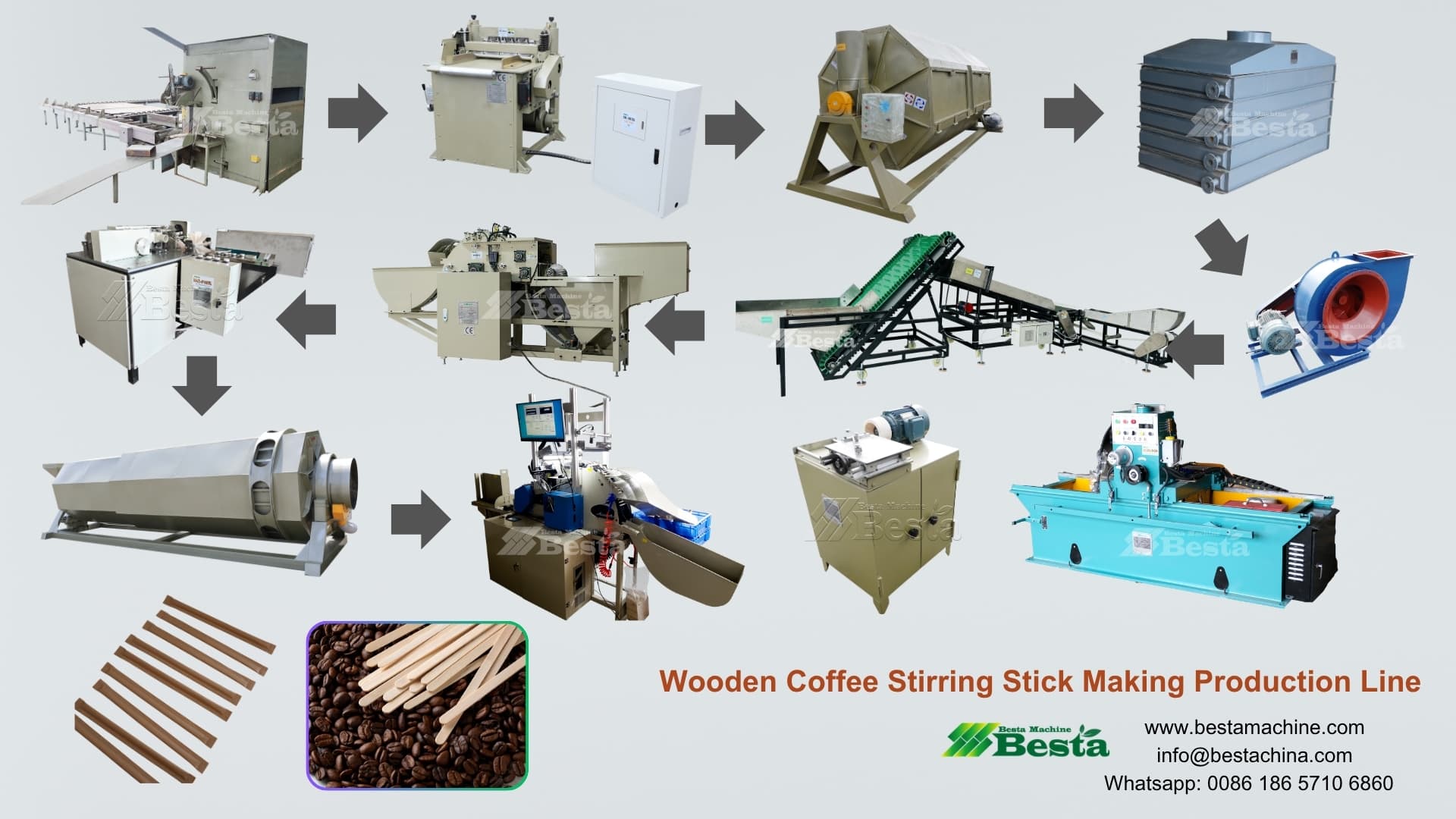

Wooden Coffee Stirring Stick Making Production Line is consisted by the following machine
| Name | Machine Name | Function |

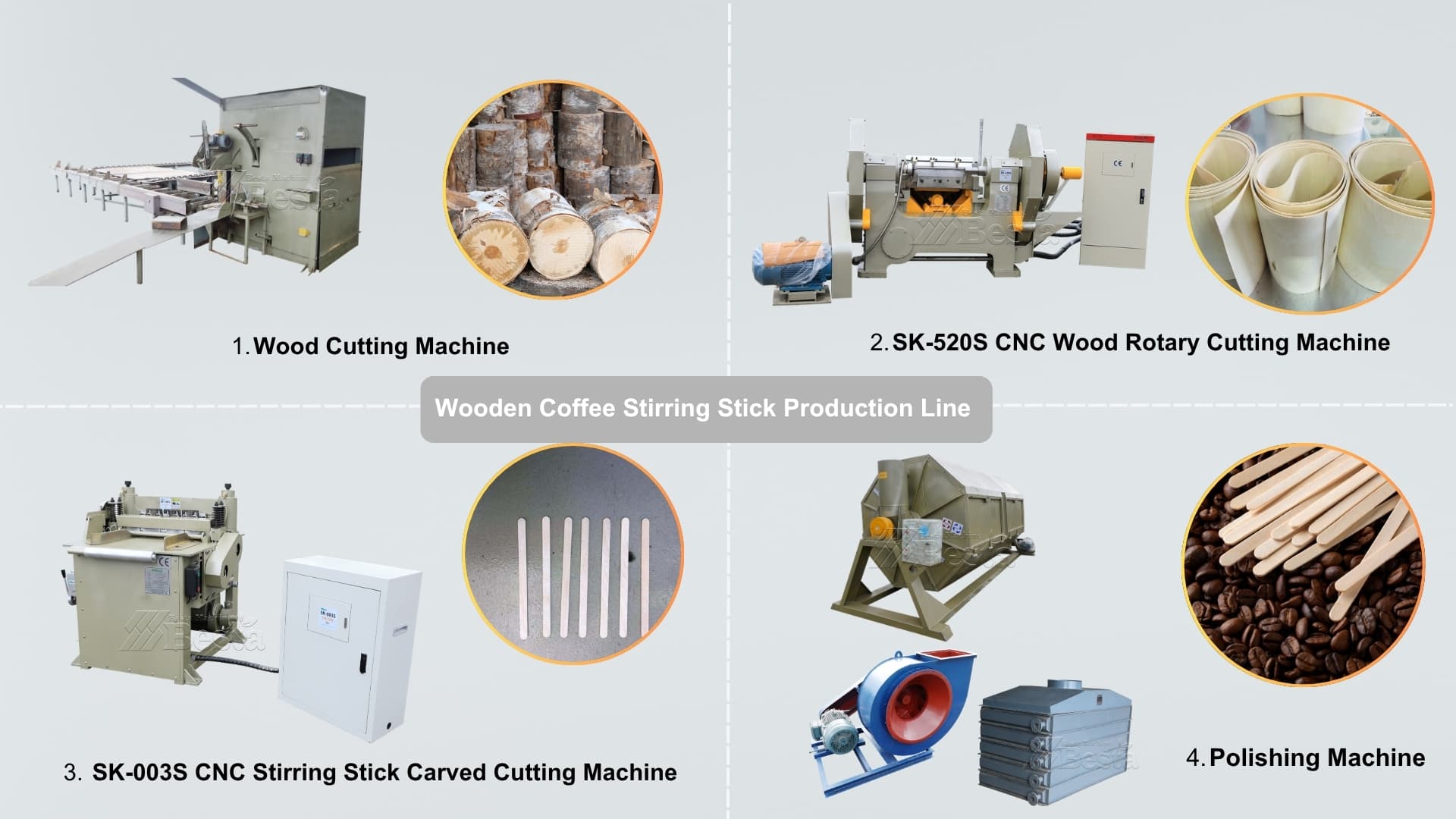

| 1 | Wood Cutting Machine | Cut the wood into certain length. For example 380MM |

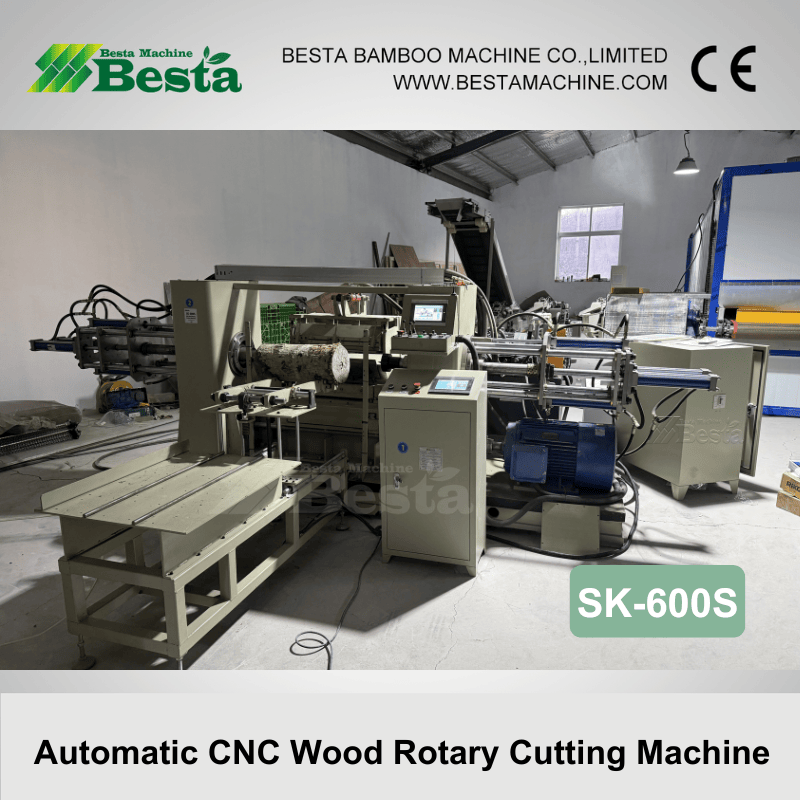

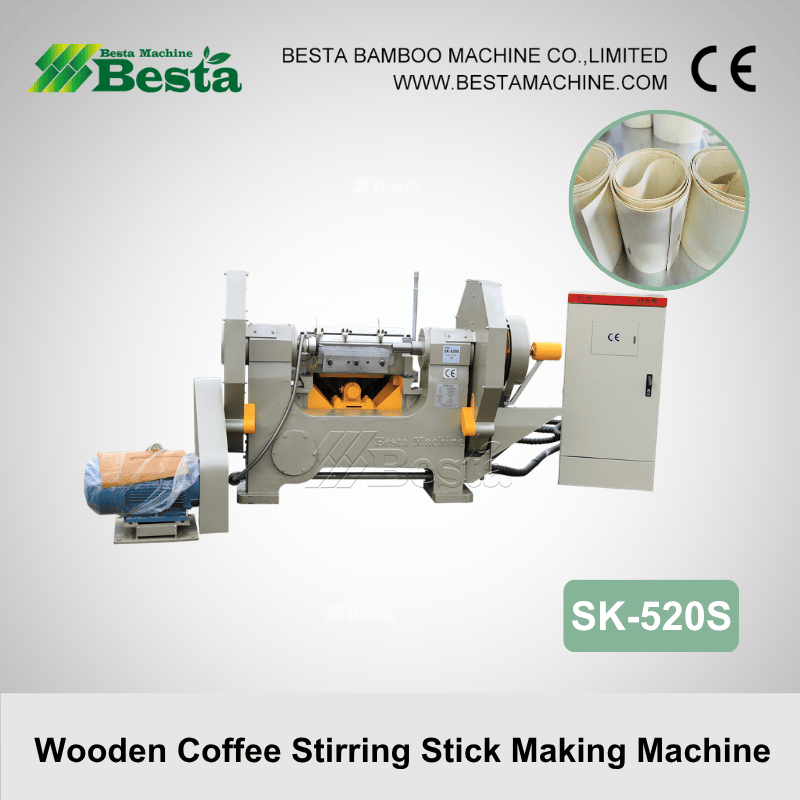

| 2 | CNC Wood Rotary Cutting Machine | After wood boiling, we will remove the wooden barks first and then do the wood rotary cutting process.
Rotary cutting wood into 2.18mm thickness |

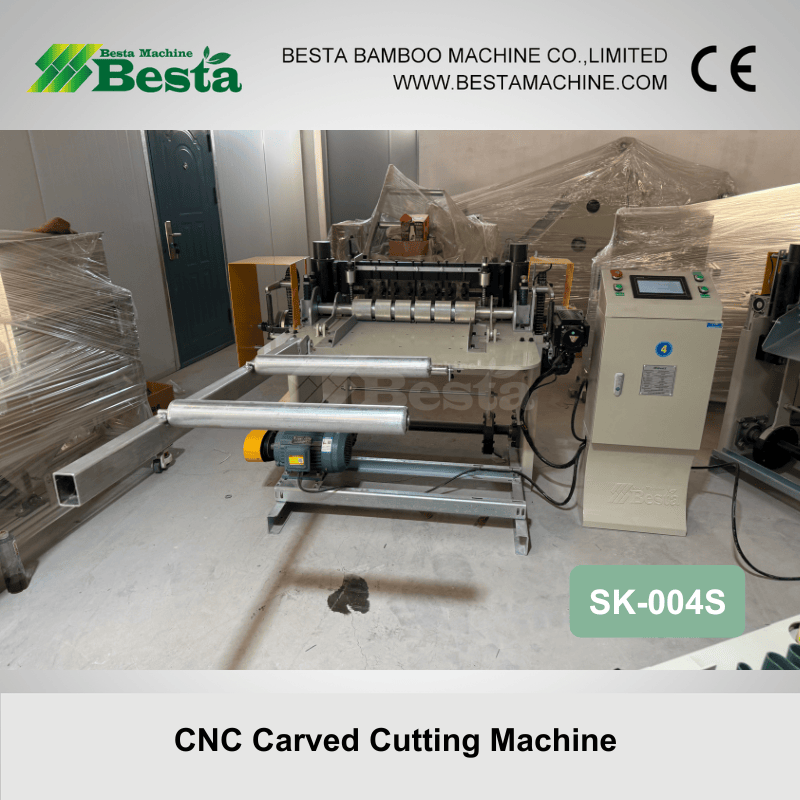

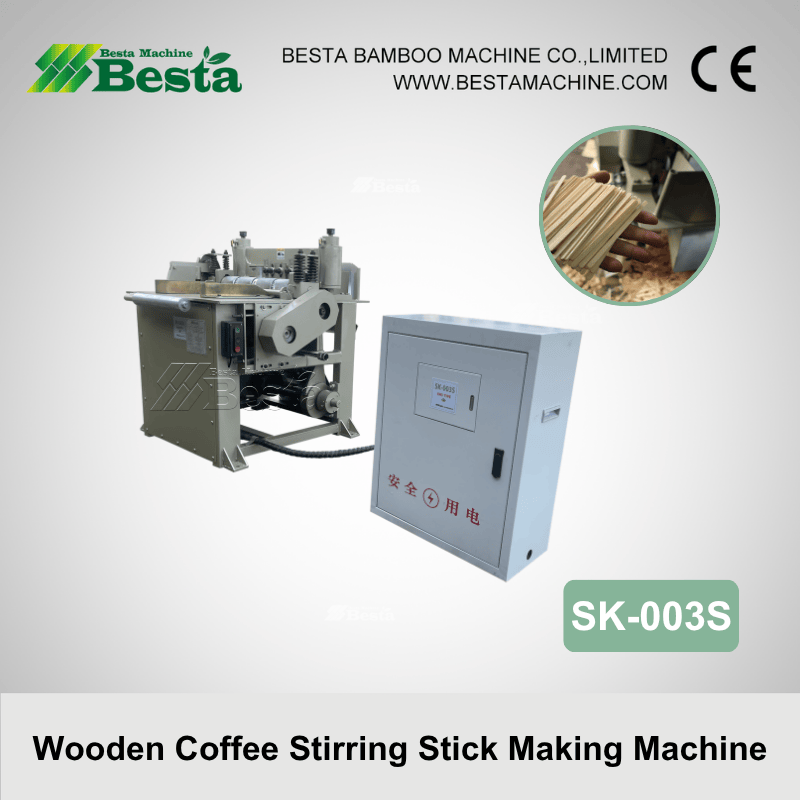

| 3 | CNC Stirring Stick Carved Cutting Machine | Wooden Coffee Stirring Stick Carved Cutting Process (Punching Process) |

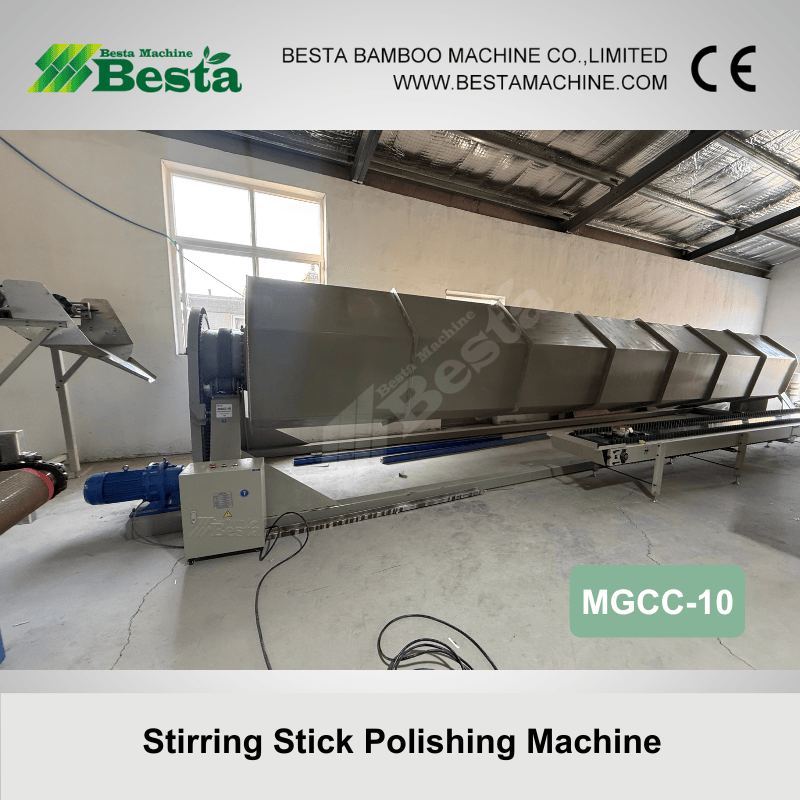

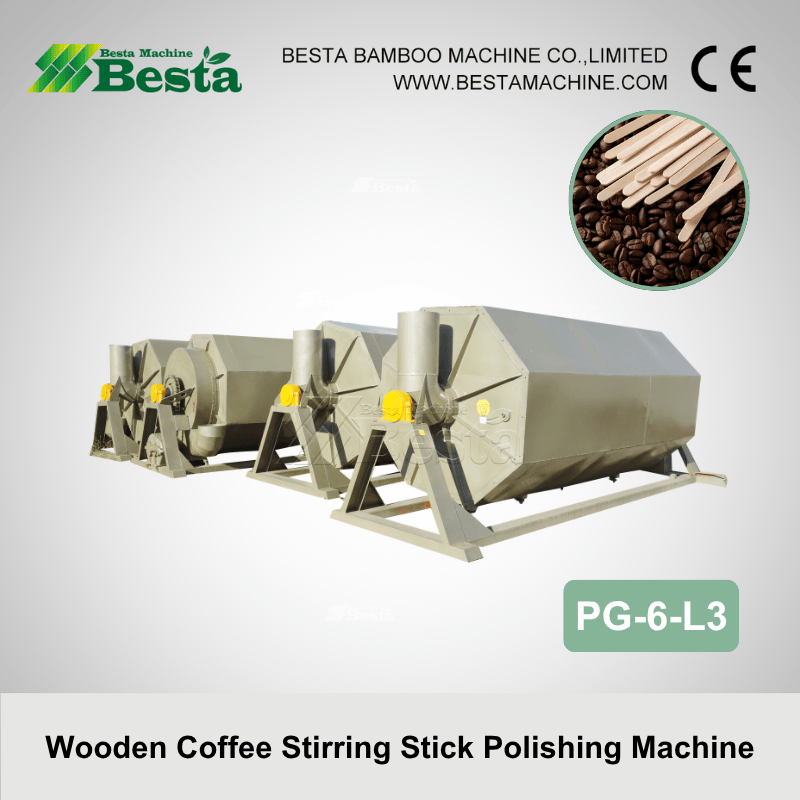

| 4A (Option 1) | Wooden Ice Cream Stick Polishing Machine | Stick Drying and Polishing Machine |
| Draught Fan | It is worked with stick polishing machine | |
| Heat Exchanger | It is worked with stick polishing machine | |

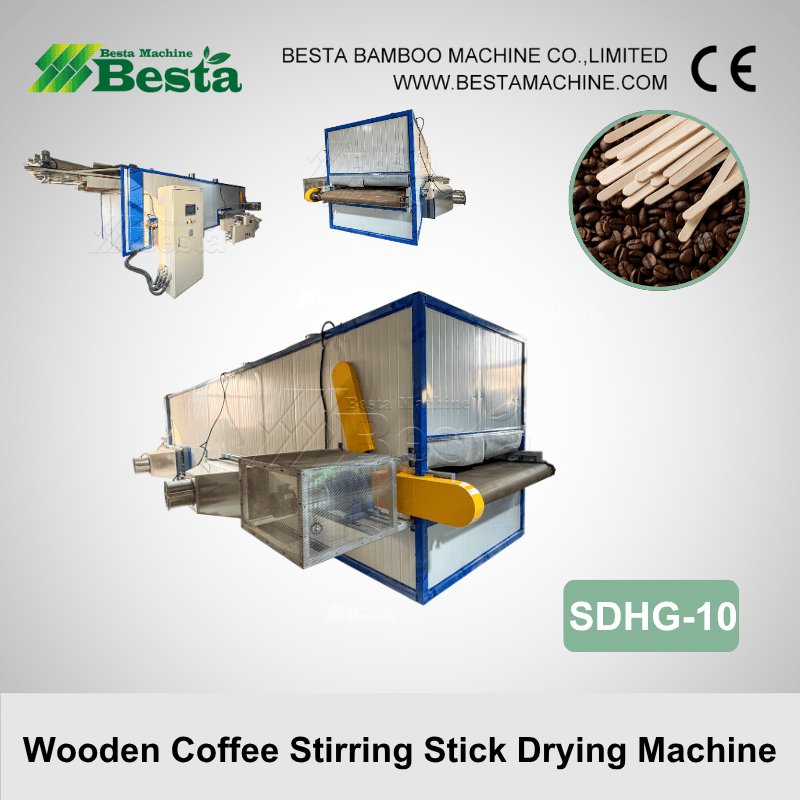

| 4B (Option 2) | Wooden Coffee Stirring Stick Drying Machine | Dry the wooden coffee stirring sticks |

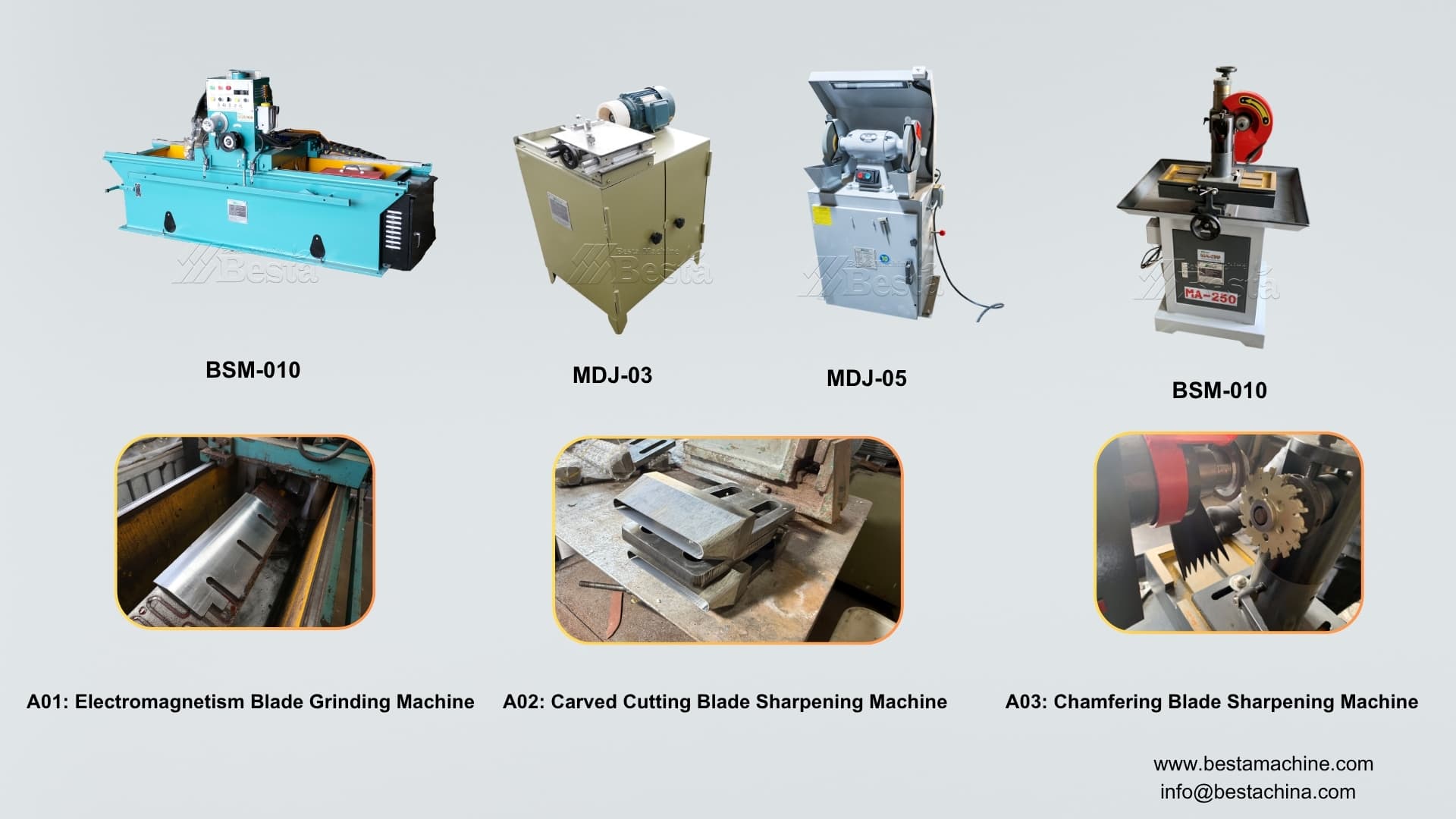

| 7 | Electro-magnetism Blade
Grinding Machine |
Grinding wood rotary cutting blade and press bar |

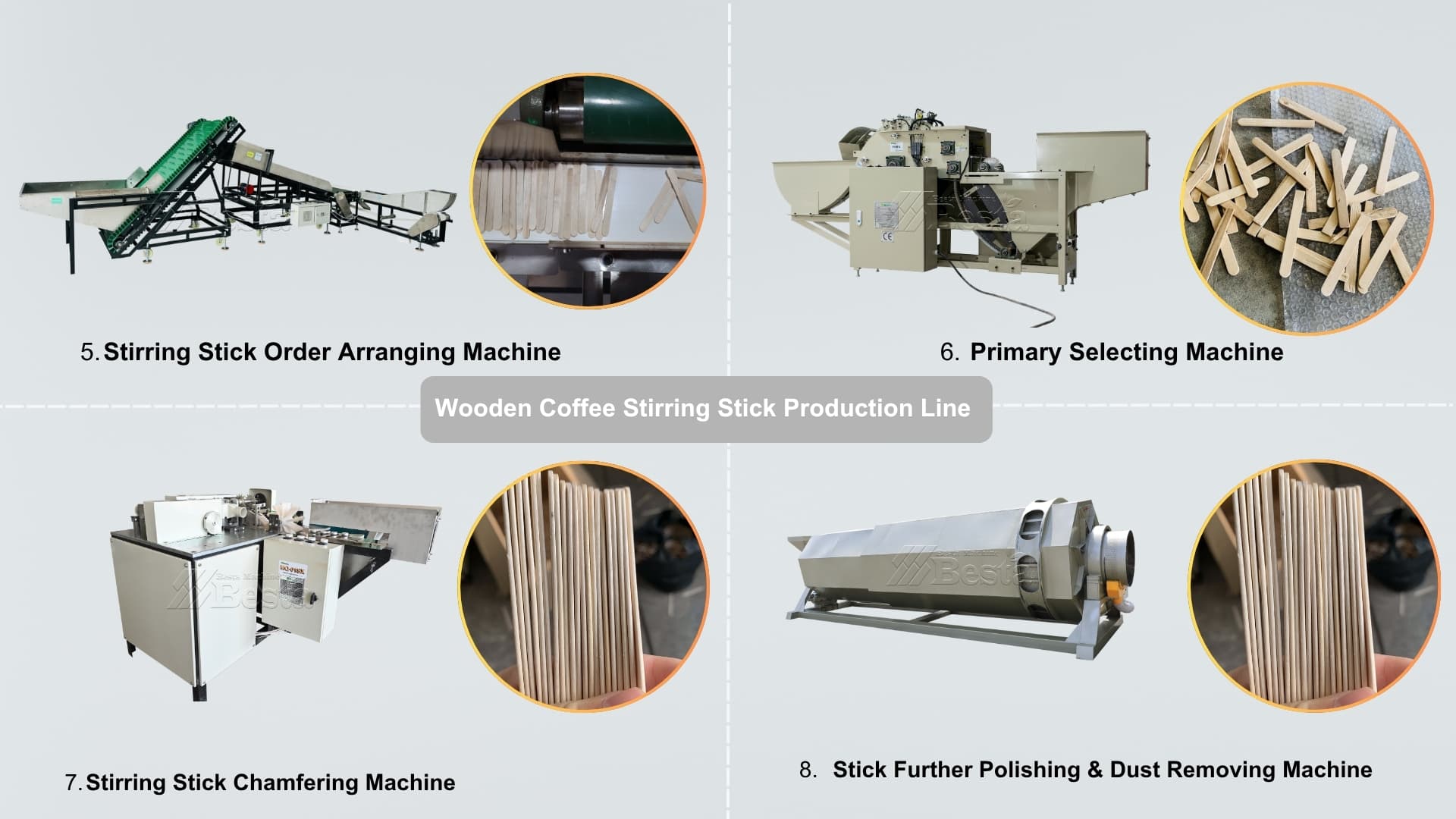

| 8 | Stick Order Arranging Machine | Order arranging the wooden coffee stirring sticks into good order |

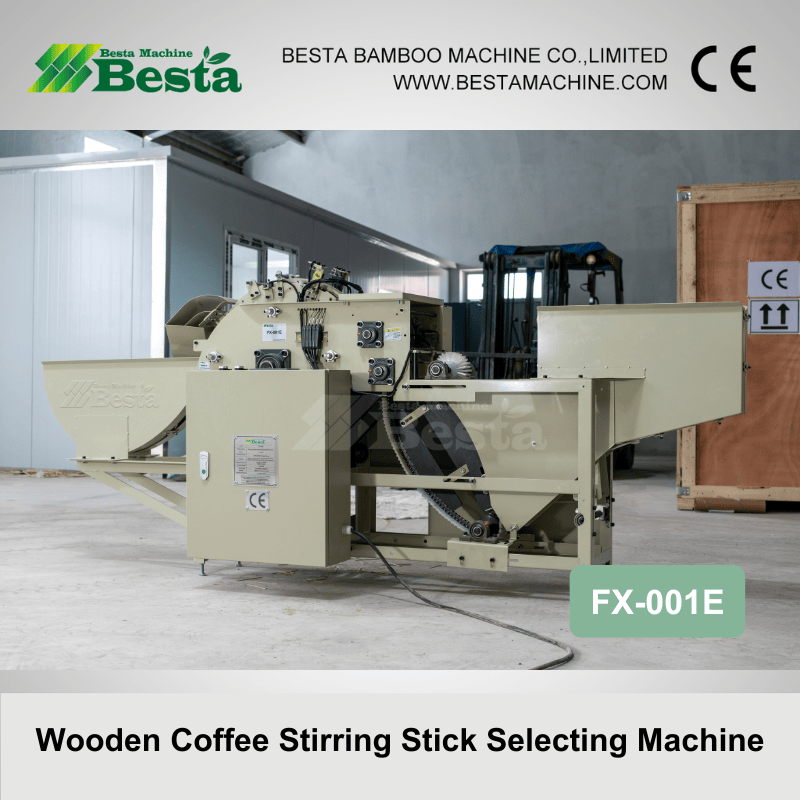

| 9 | Stick Primary Selecting Machine | Remove unqualified wooden coffee stirring sticks which are regarded as wood wastage.
Product Size: 110MM*5MM, 140MM*5MM Or 160MM*5MM |
| 10 | Wooden Ice Cream Stick Chamfering Machine | Make a semi-circular chamfer on the rectangular wooden coffee stirring sticks |
| 11 | Dust Removing and Further Polishing Machine | After removing the wooden coffee stirring sticks, dust will accumulate. We will then further polish and remove dust from the beveled wooden coffee stirring sticks |

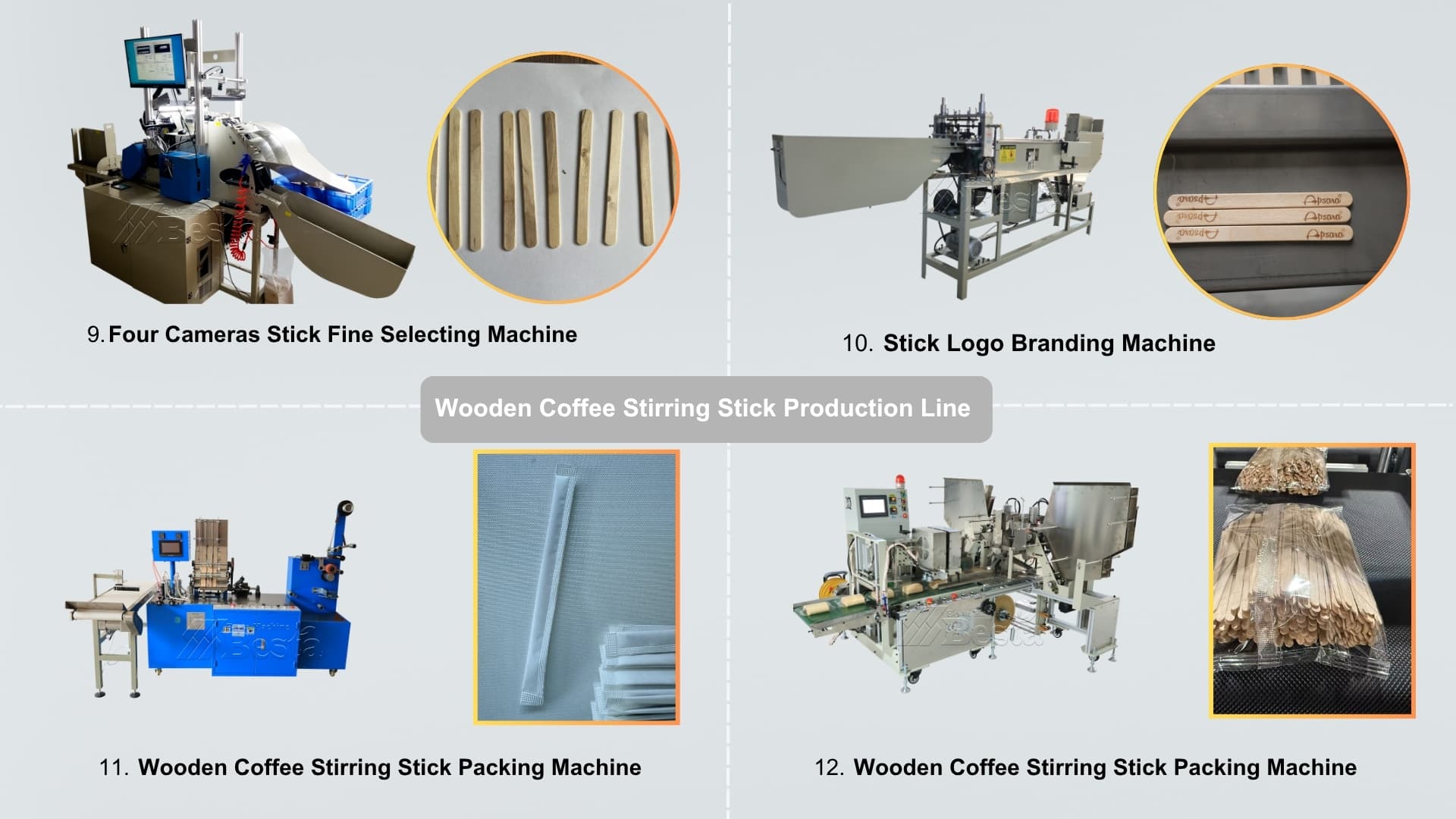

| 12 | Wooden Ice Cream Stick Image Detecting Selecting Machine | Selecting ice cream sticks using a visual system |
| 13 | Wooden Ice Cream Stick Logo Branding Machine | Based on the design provided by the customer, we create a branding mold and then perform the branding process. |

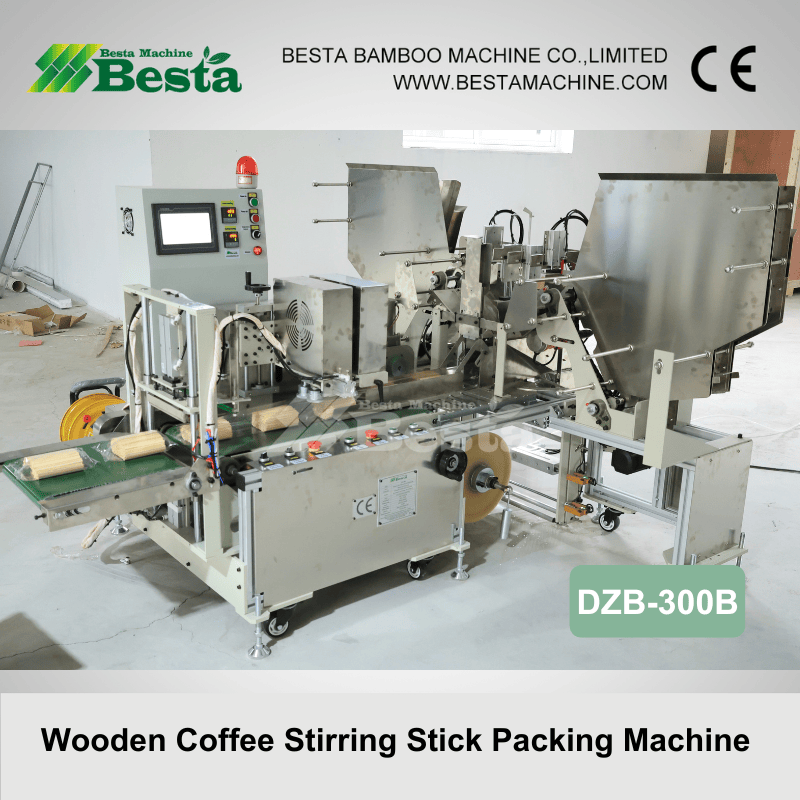

| 14 | Wooden Ice Cream Stick Bundling Machine | Ice cream stick bundling, 50 PCS/Bundle |
| 15 | Conveyors | Used for machine-to-machine connections to enable automation. |
| 16 | Steam Boiler | This equipment is an auxiliary device that provides steam. |
| 17 | Dust Collector | Worked with further polishing machine |
| 18 | Air Compressor | Used in conjunction with ice cream stick primary selecting machine, visually selecting machine, bundling machine |
The Crafts of Making wood into wooden coffee stirring sticks
Cut the wood into certain length –> Wood Steaming or wood boiling –> Wooden Bark Peeling –> Rotary Cutting of wood into chips of a certain thickness (2.18MM) –> CNC punching machine to cut into 110mm*5mm or 140mm*5mm wooden coffee stirring sticks–> Product drying –> Obtaining dried wooden coffee stirring sticks–> Arrange wooden coffee stirring stick into good order–> Initial selection (removing products considered unqualified waste, those with obvious thin/narrow/bent problems) –
Chamfering and surface removal (Making round edge) –> further polishing the coffee stirring stick –> Arrange the wooden coffee stirring sticks into good order again –> Wooden coffee stirring stick selection, using a ice cream stick visual selecting machine to further select the chamfered wooden coffee stirring stick , making the inspection process more precise –> If the product needs to be branded, use wooden wooden coffee stirring stick branding machine –> If branding is not required, use a bundling machine to bundle 50 sticks/bundle –> Finished product, boxed.
Feel free to contact us for professional services and advice.
