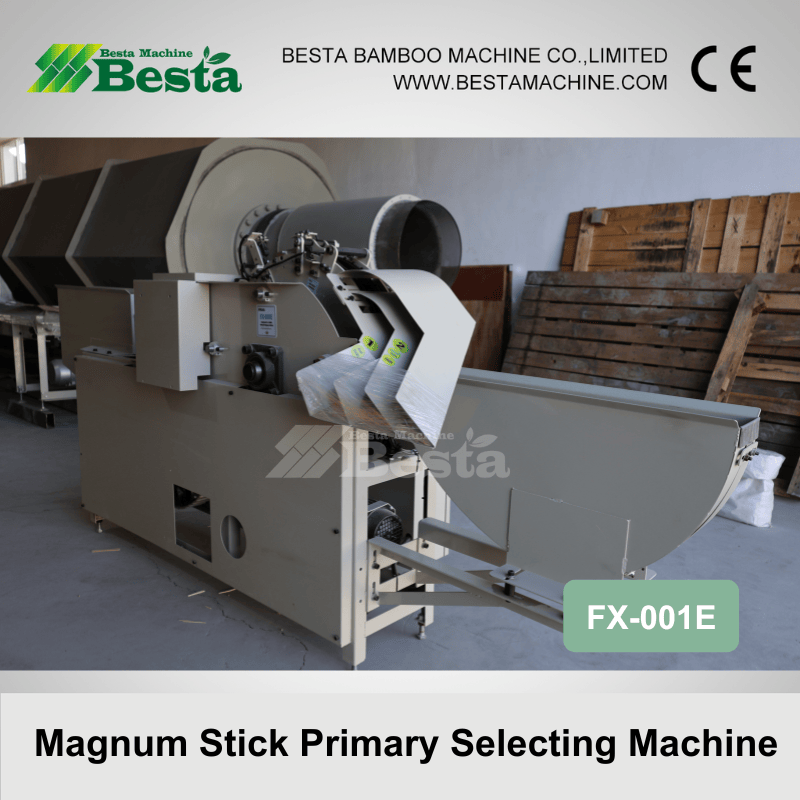

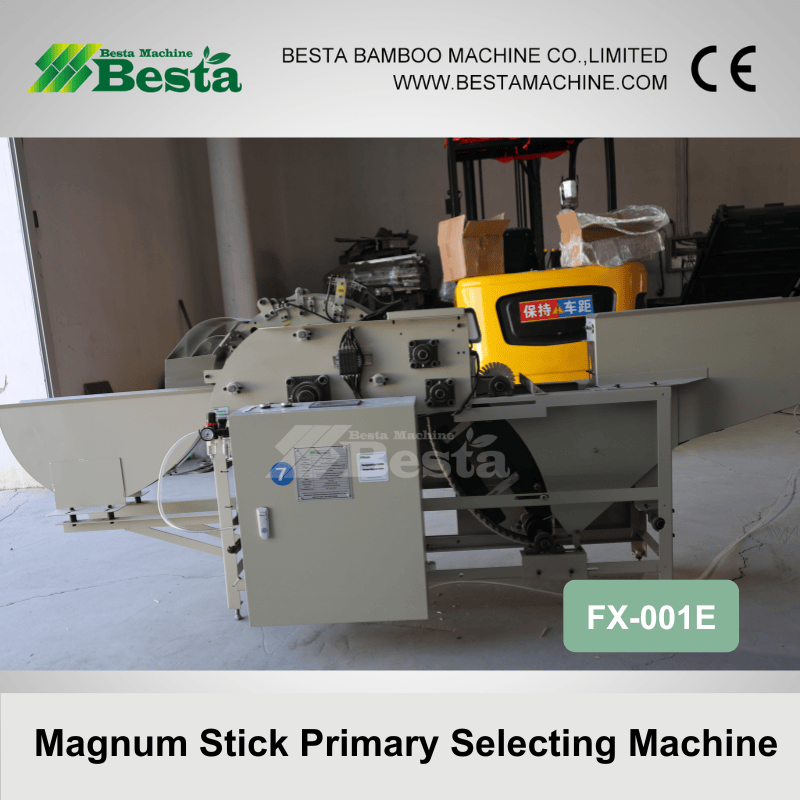

FX-001E 94MM Magnum Stick Selecting Machine

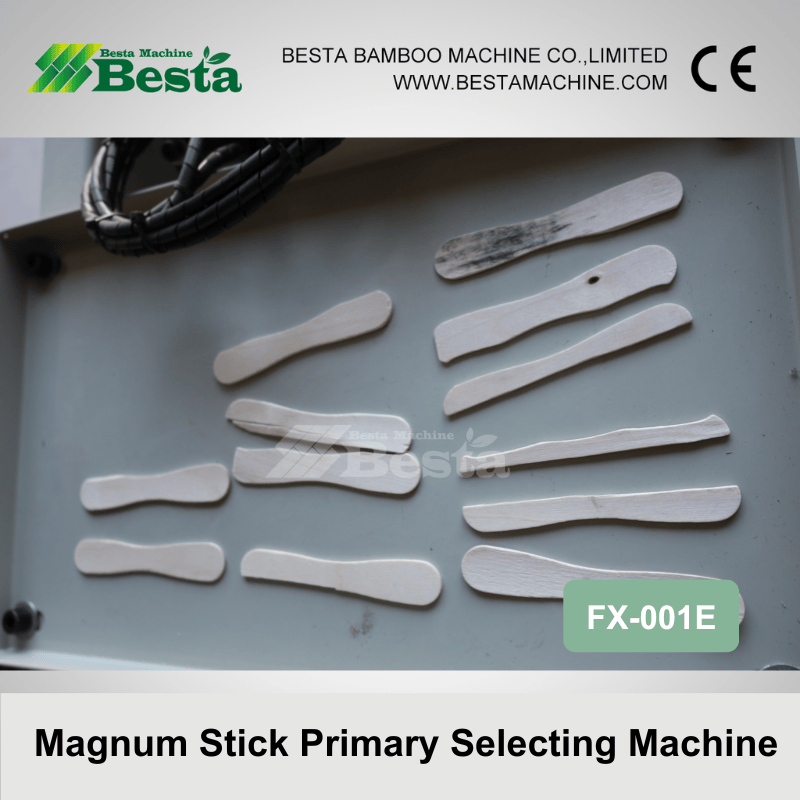

This equipment is specifically designed for the initial selection process of 94mm ice spoon. It automatically detects and rejects defective products due to insufficient thickness, excessive width, bending or deformation, or incorrect length. Rejected defective products are considered waste and cannot be sold.

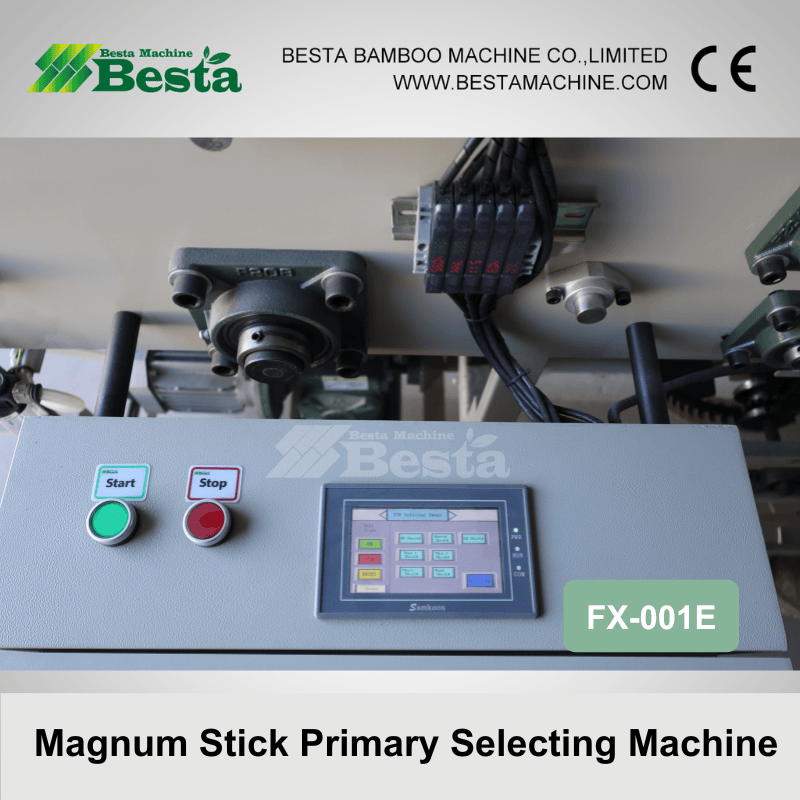

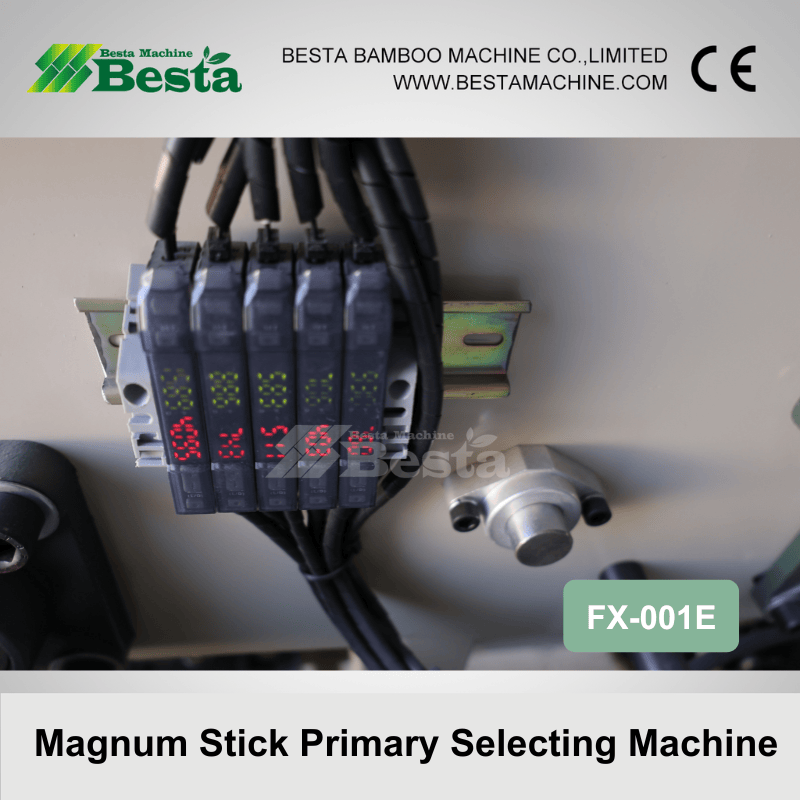

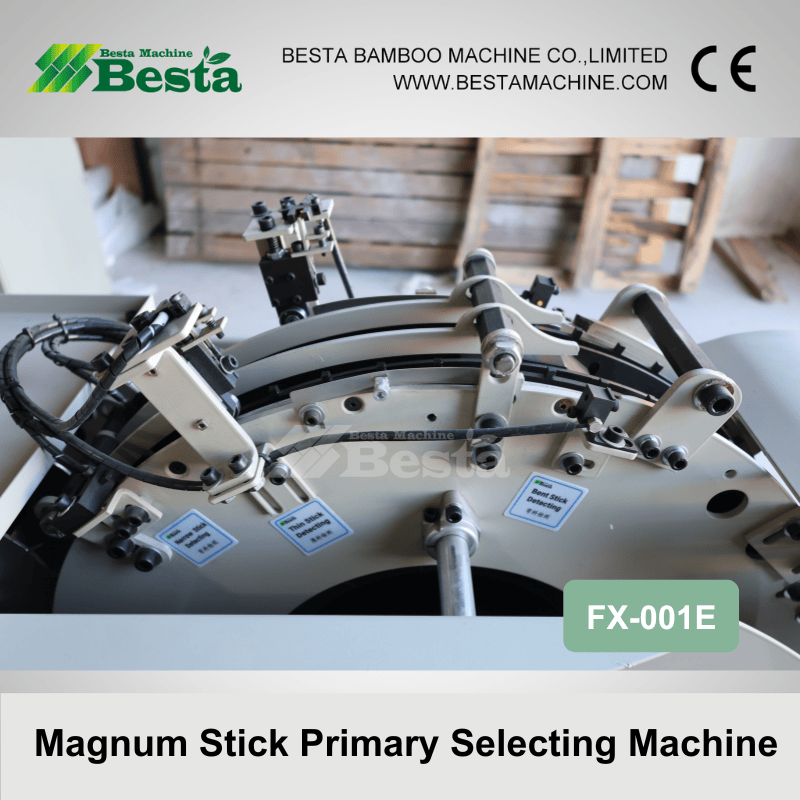

The equipment is equipped with multiple sets of high-precision fiber optic sensors to detect the bending degree, thickness, width, and length of the ice scoops, enabling multi-dimensional quality assessment. Operation is simple and intuitive.
Technical Data
| Model | FX-001E |
| Product Name | Stick Selecting Machine |
| Power | 1.1 KW |
| Working Voltage | 220V, 50HZ (Single Phase) |
| Function | This machine can be used in 94MM Magnum Sticks |
| Brand | Besta Machine |
| Selecting Items | It can remove horizontal bent sticks, narrow sticks, thin Sticks. |
| Remarks | This machine is specially designed according to 94mm*17/11*2mm wooden magnum sticks |
| Output | About 17,000 to 22,000 PCS/HOUR |
| Machine Weight | 228 KGS |
| Machine Size | 2700*900*1300 MM |
We will provide you with detailed operation tutorial videos to help you quickly master the use and maintenance methods.
Feel free to contact us for professional services and advice.
