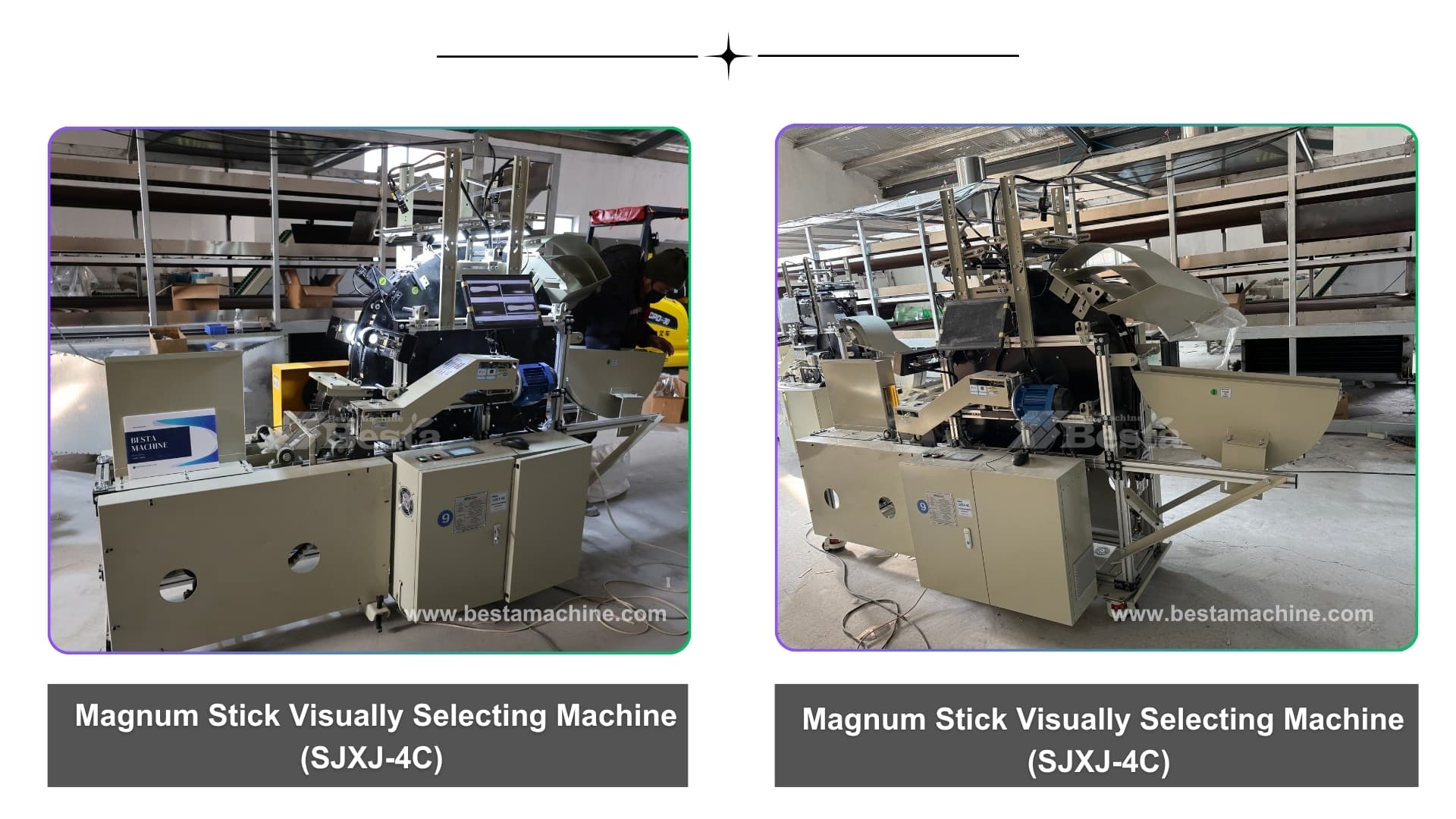

SJXJ-4C Visually 94MM Magnum Stick Selecting Machine (Image Detecting)

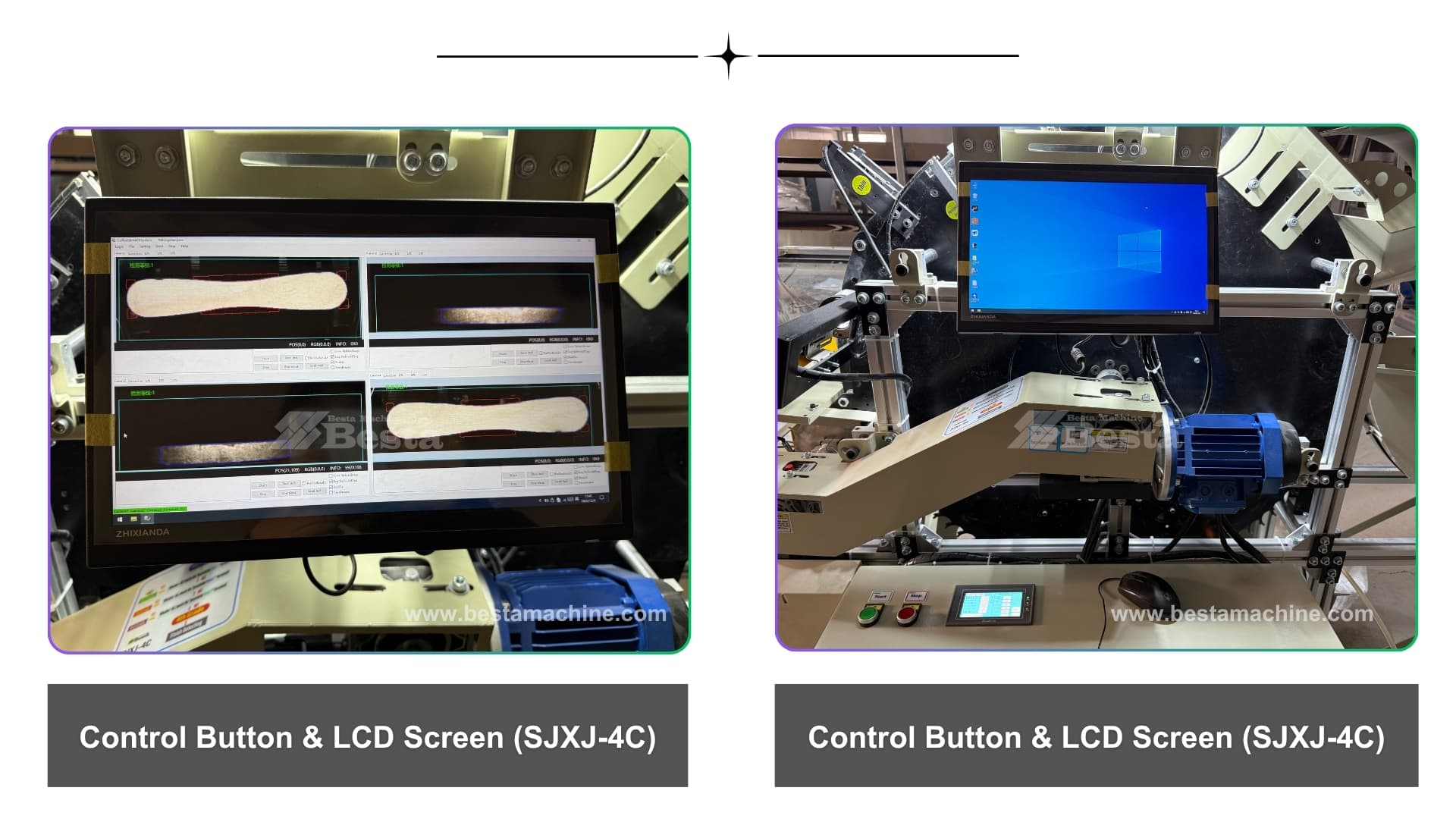

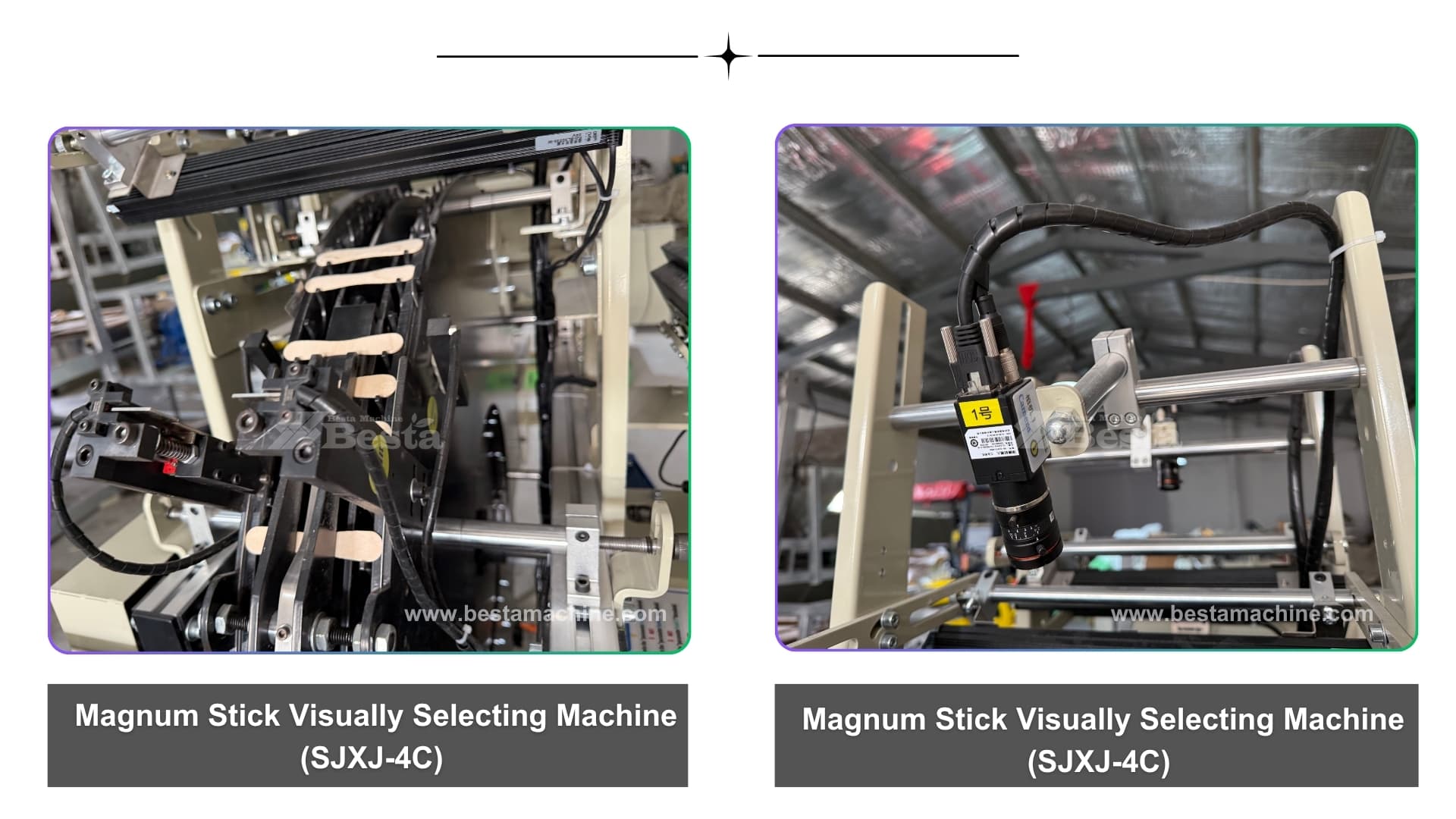

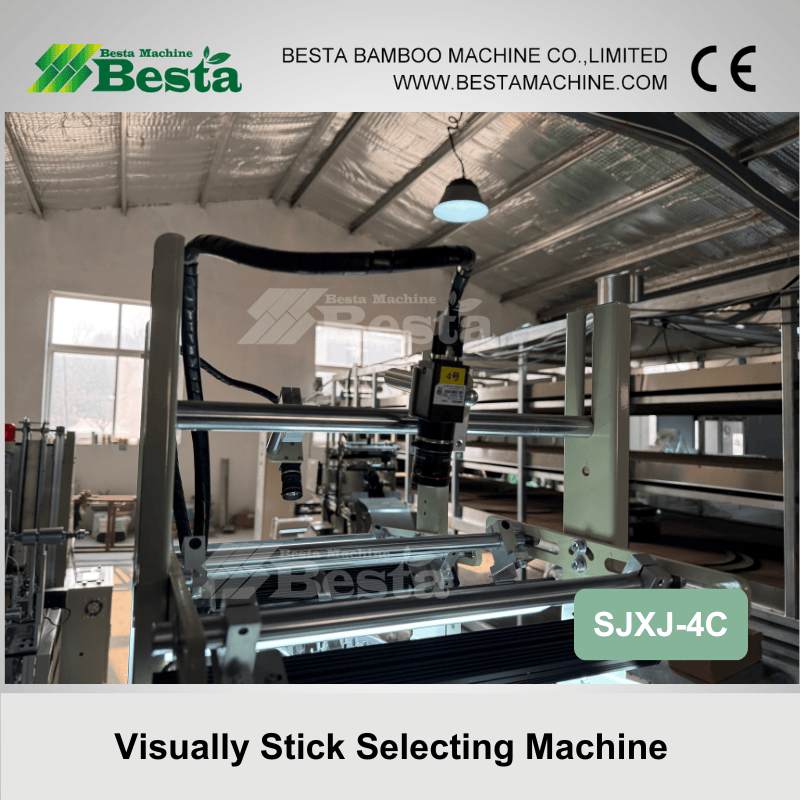

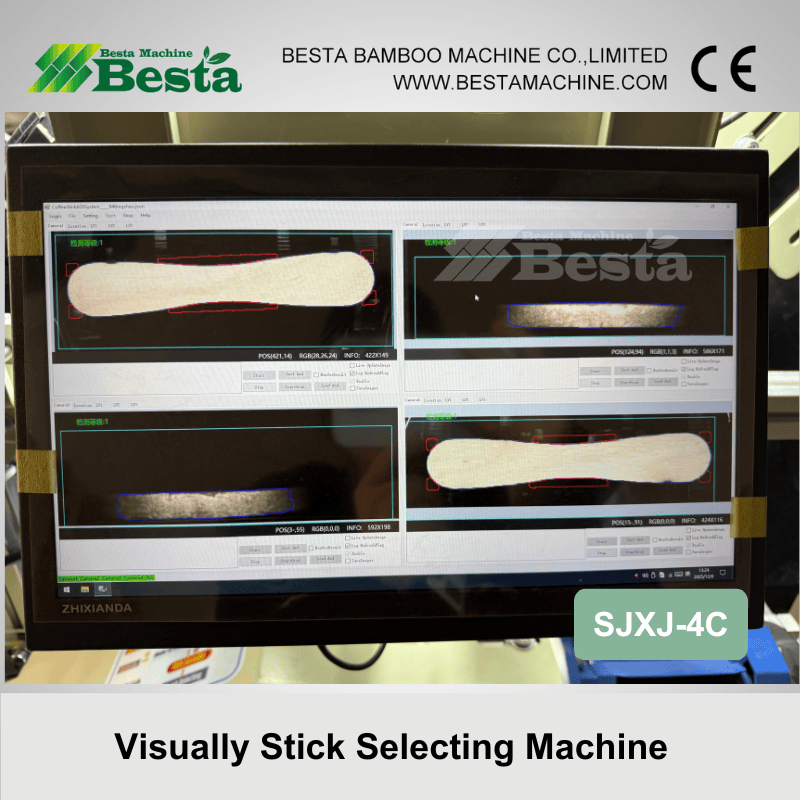

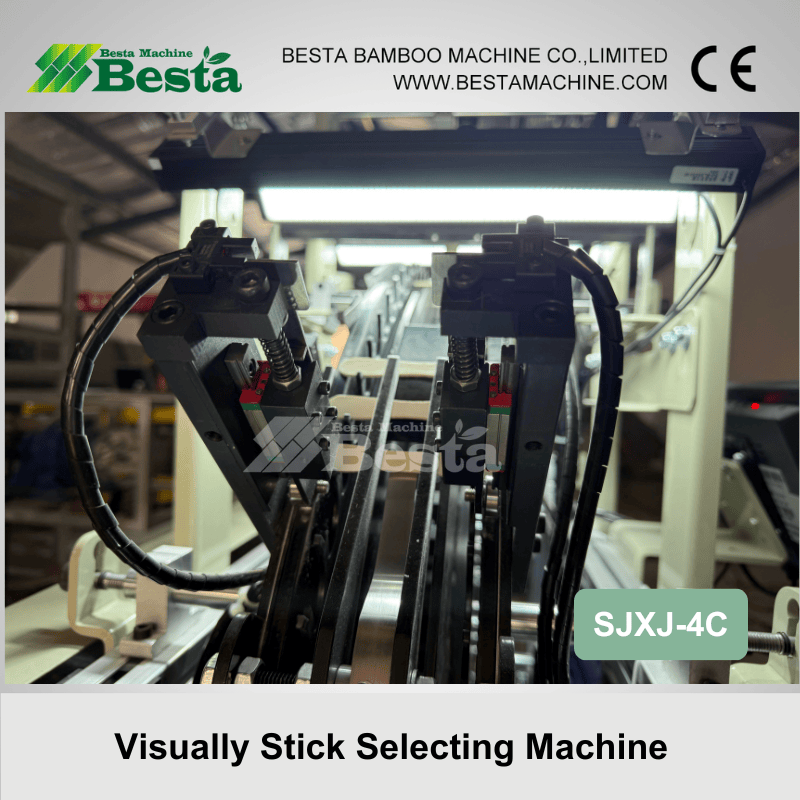

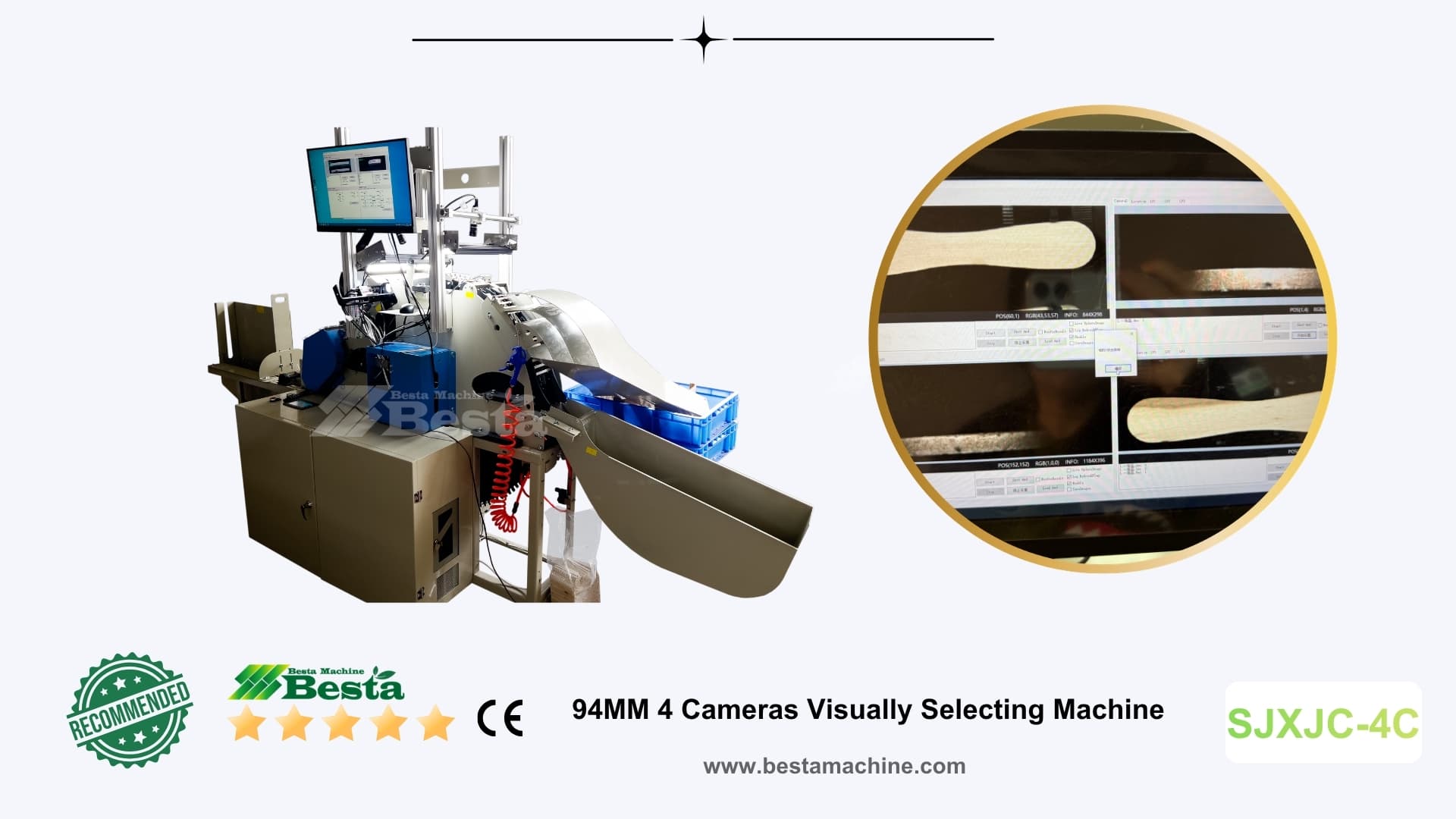

This machine is a 94mm ice spoon visual sorting machine (fine quality control machine), integrating fiber optic sensing and a four-lens color vision system, representing a leading sorting solution on the market. Through high-precision detection and intelligent analysis, the equipment achieves an overall product qualification rate of 97%.

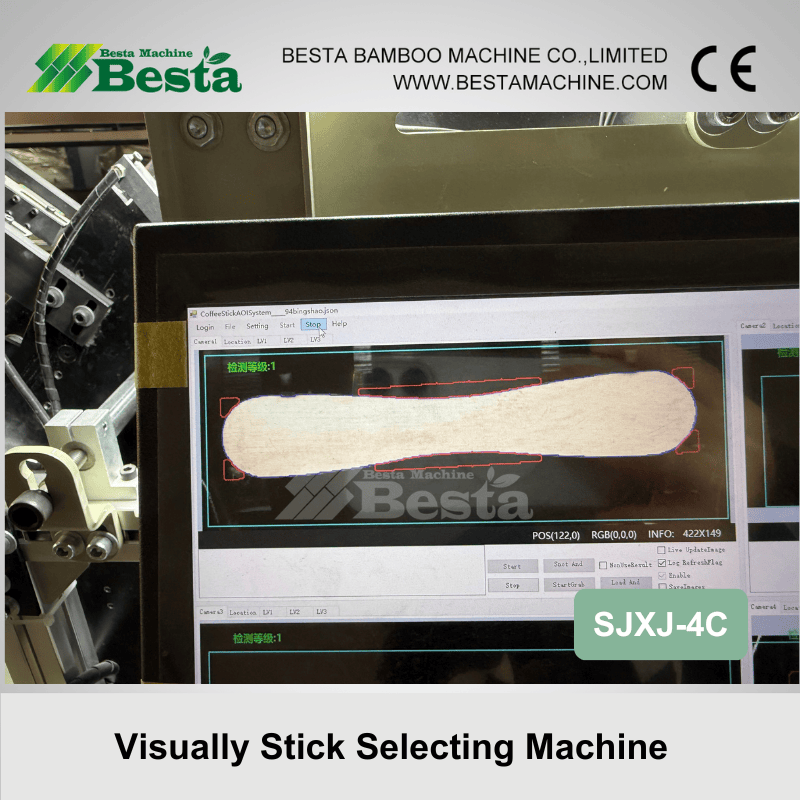

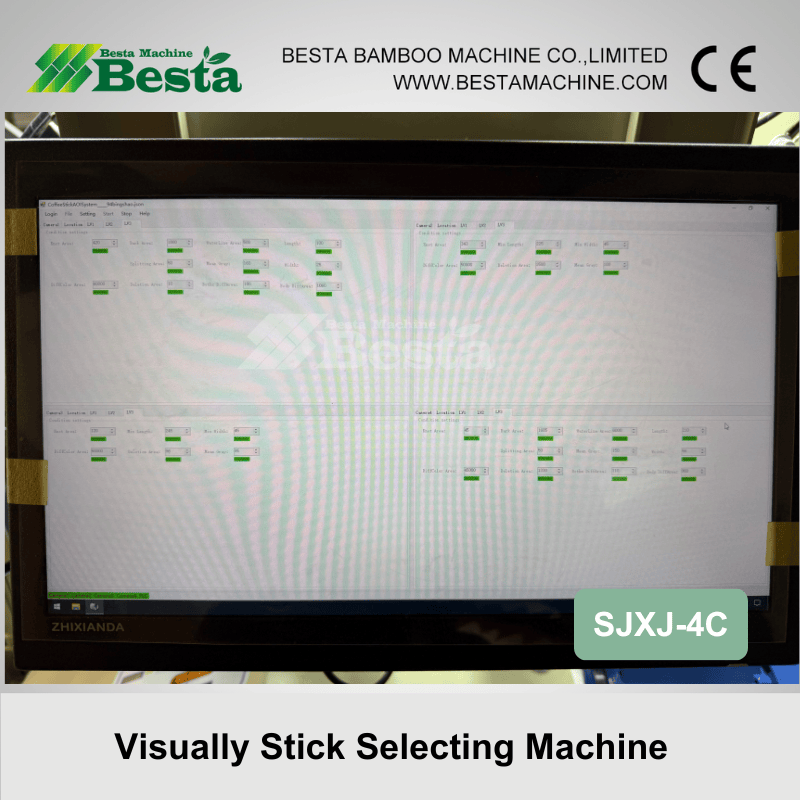

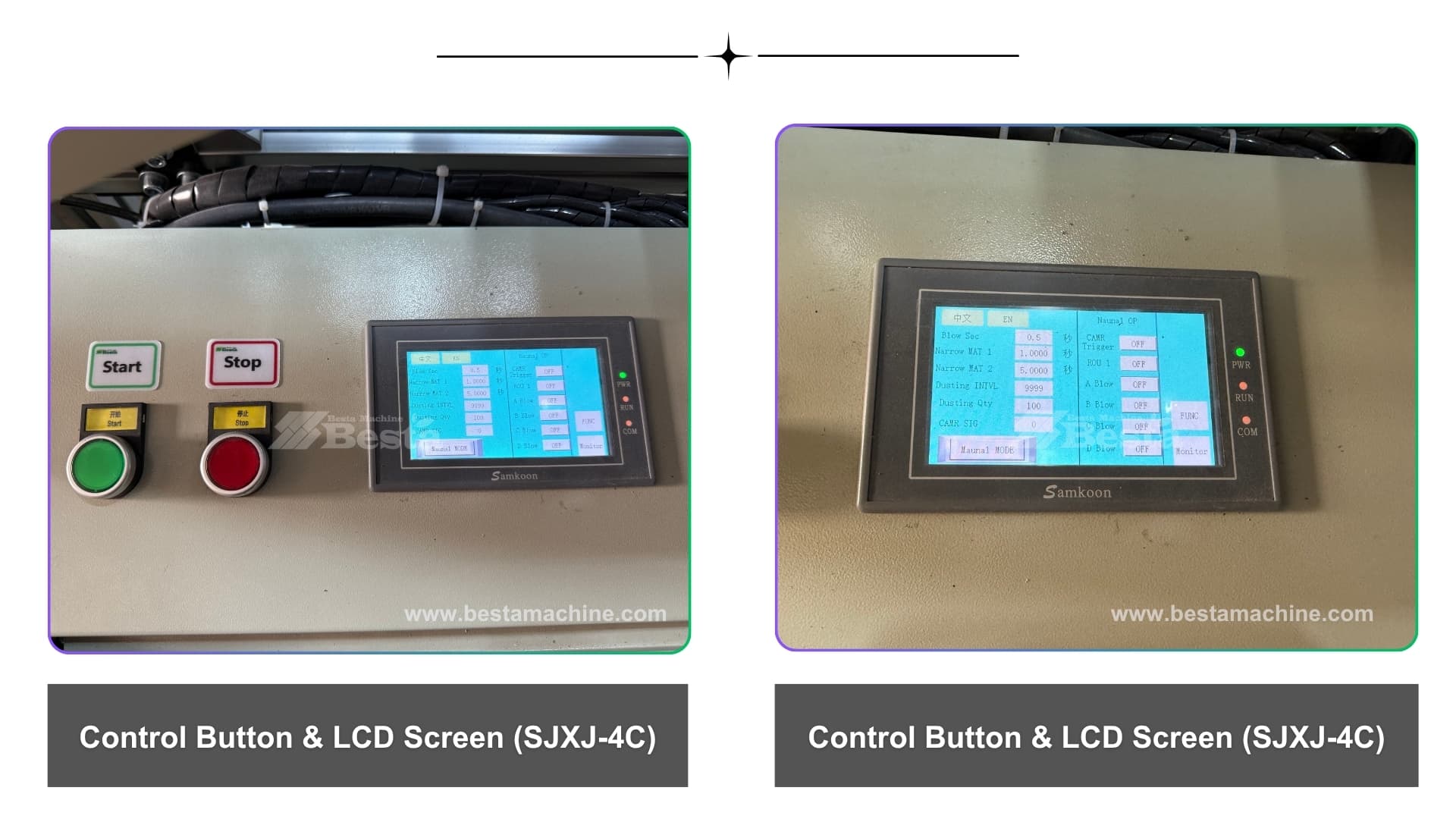

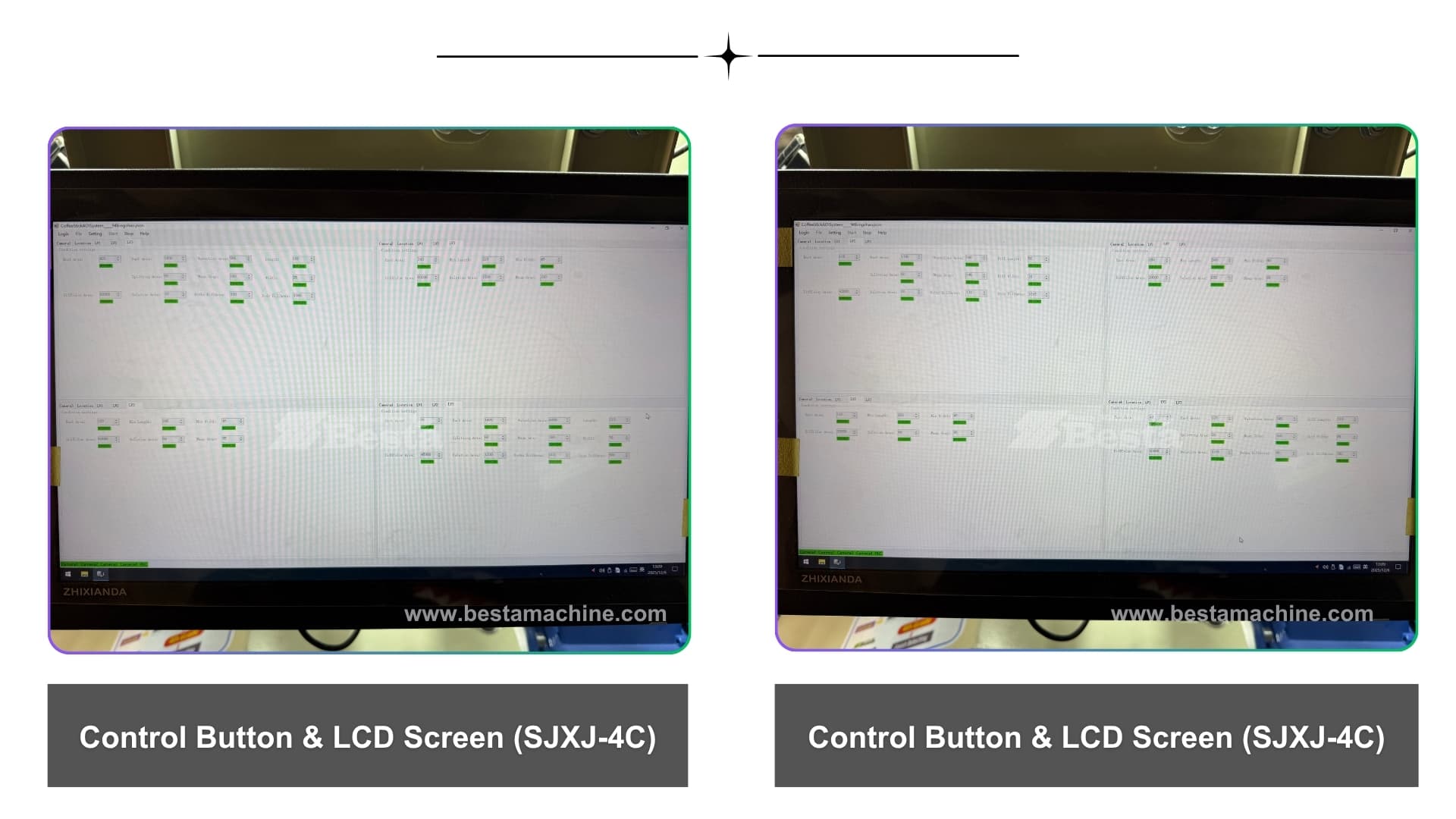

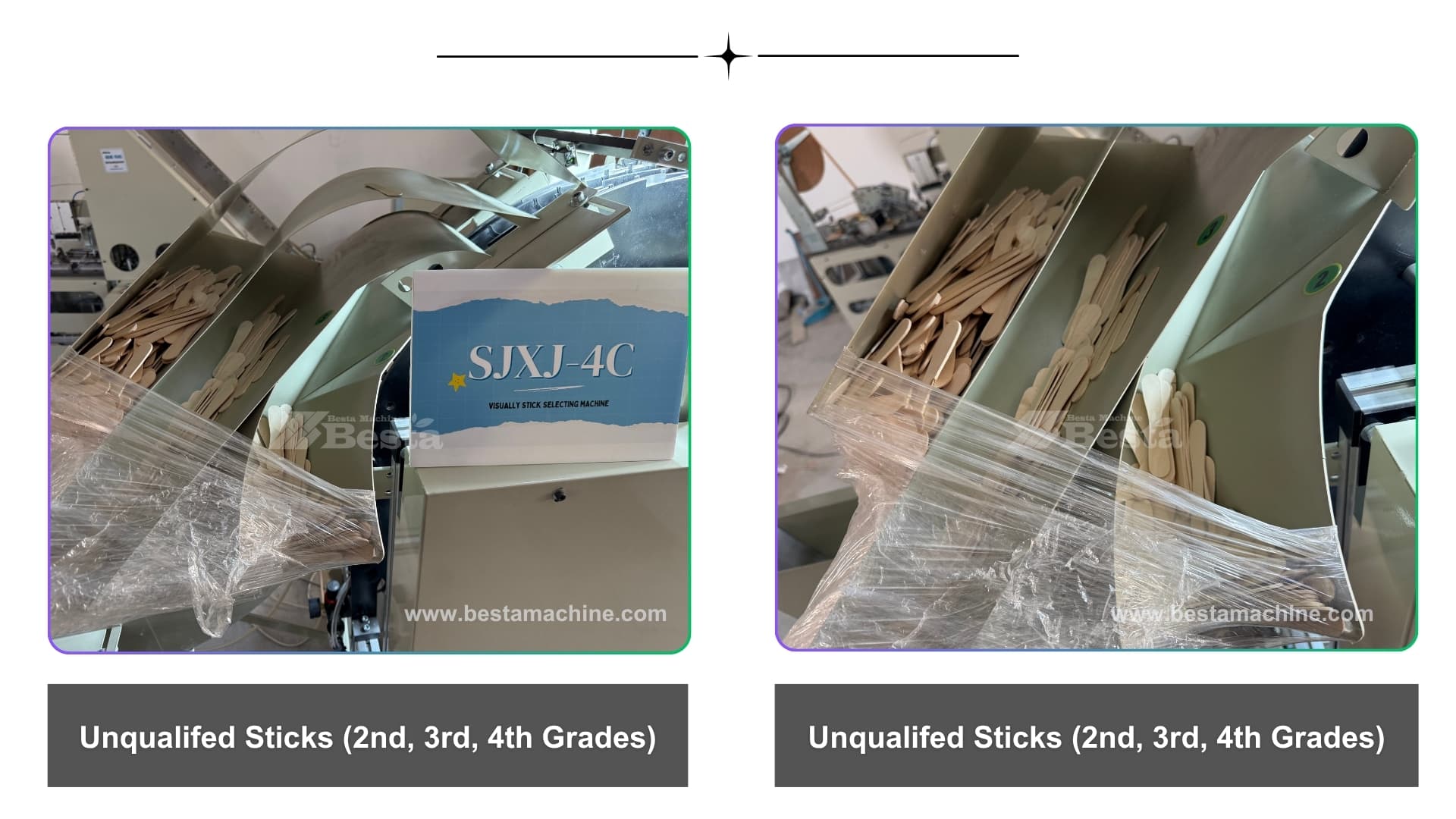

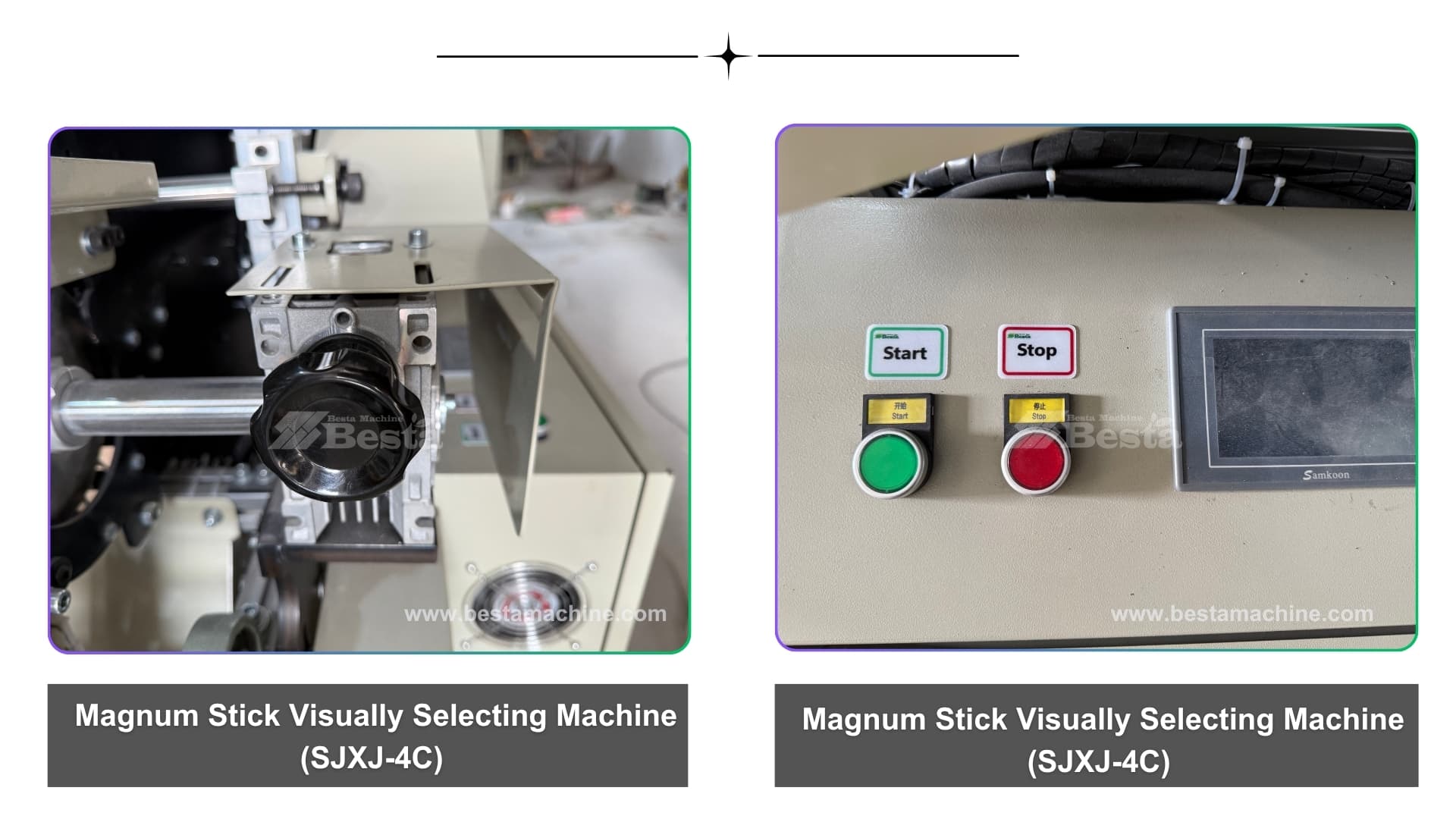

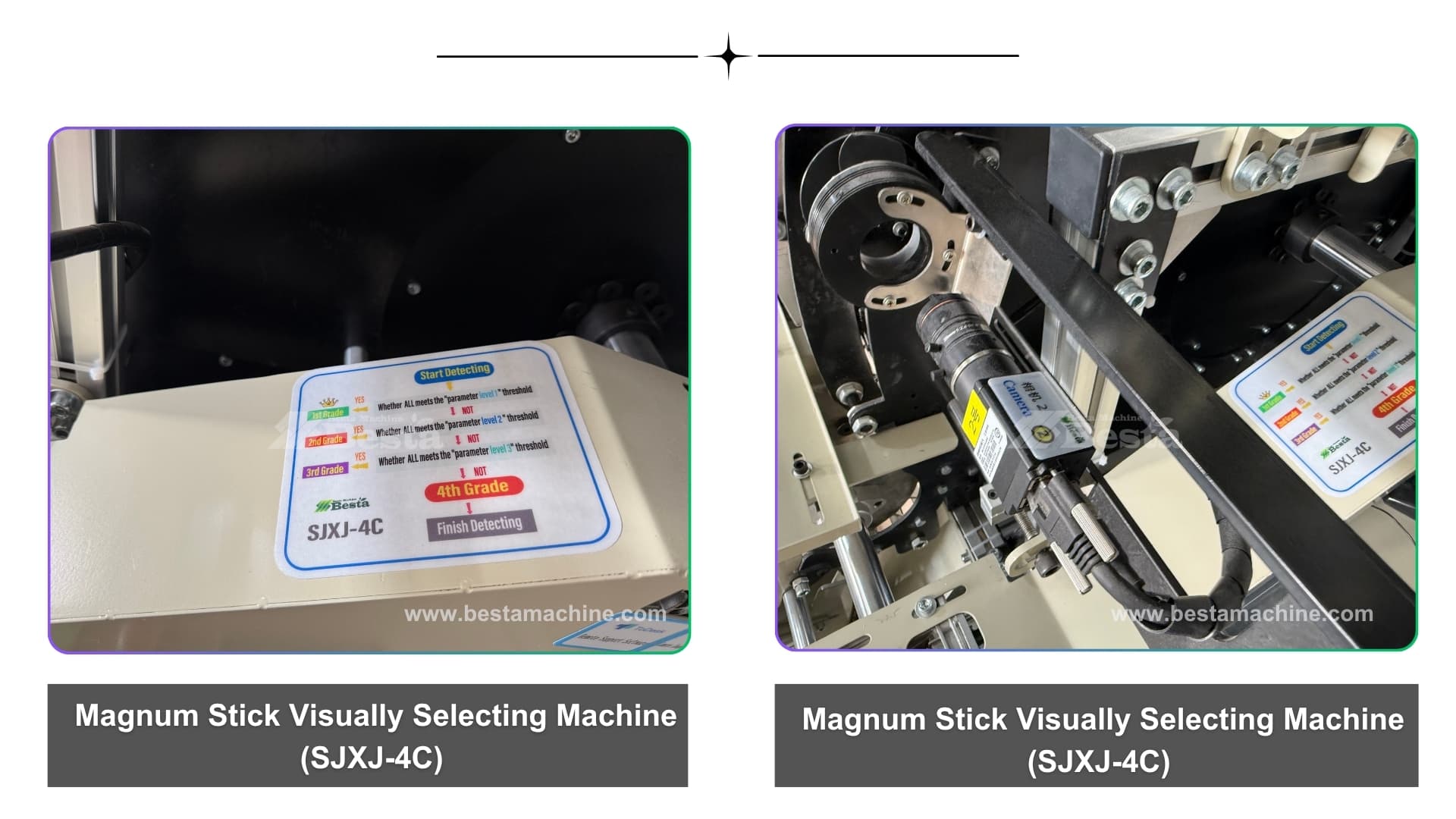

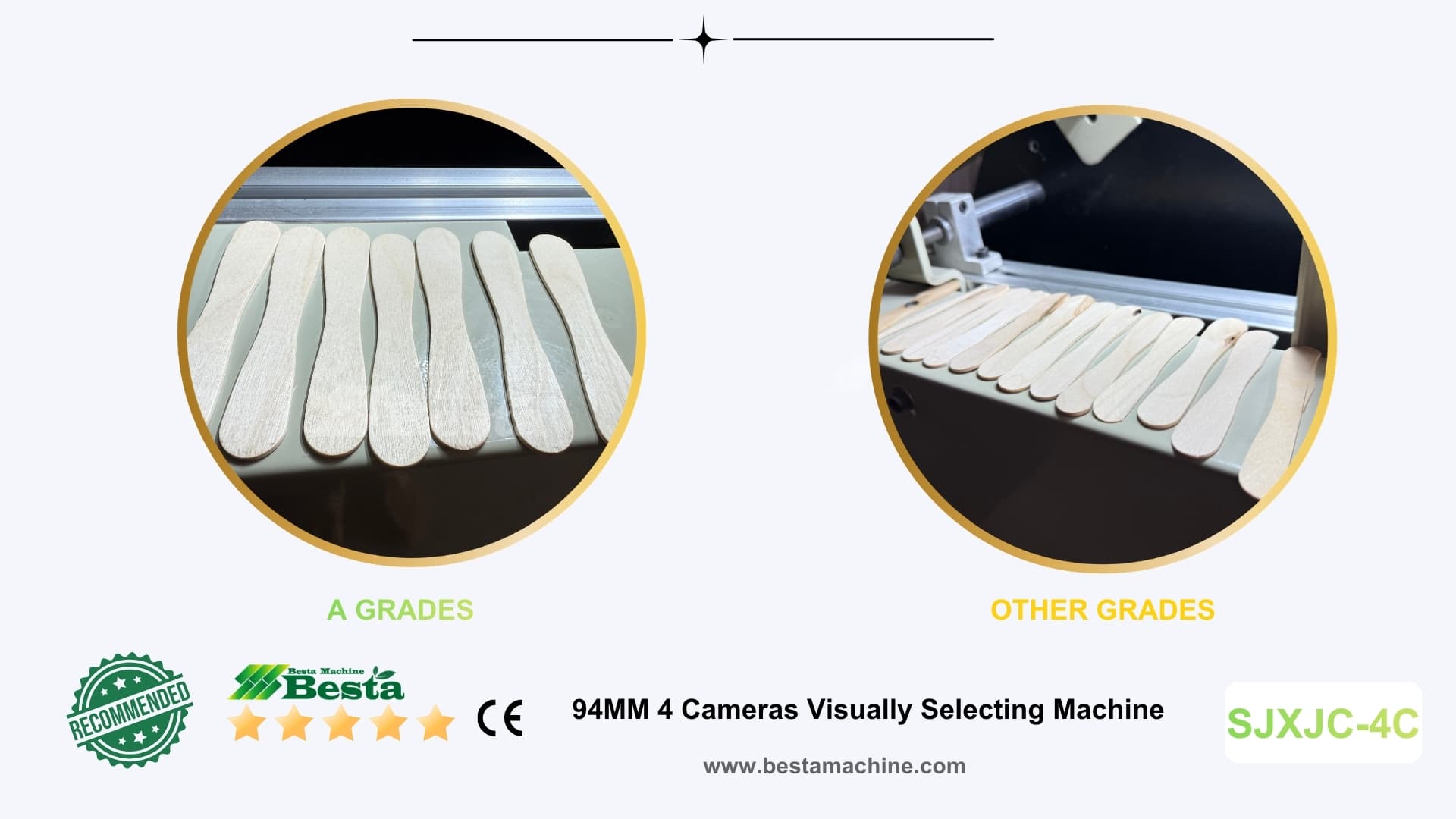

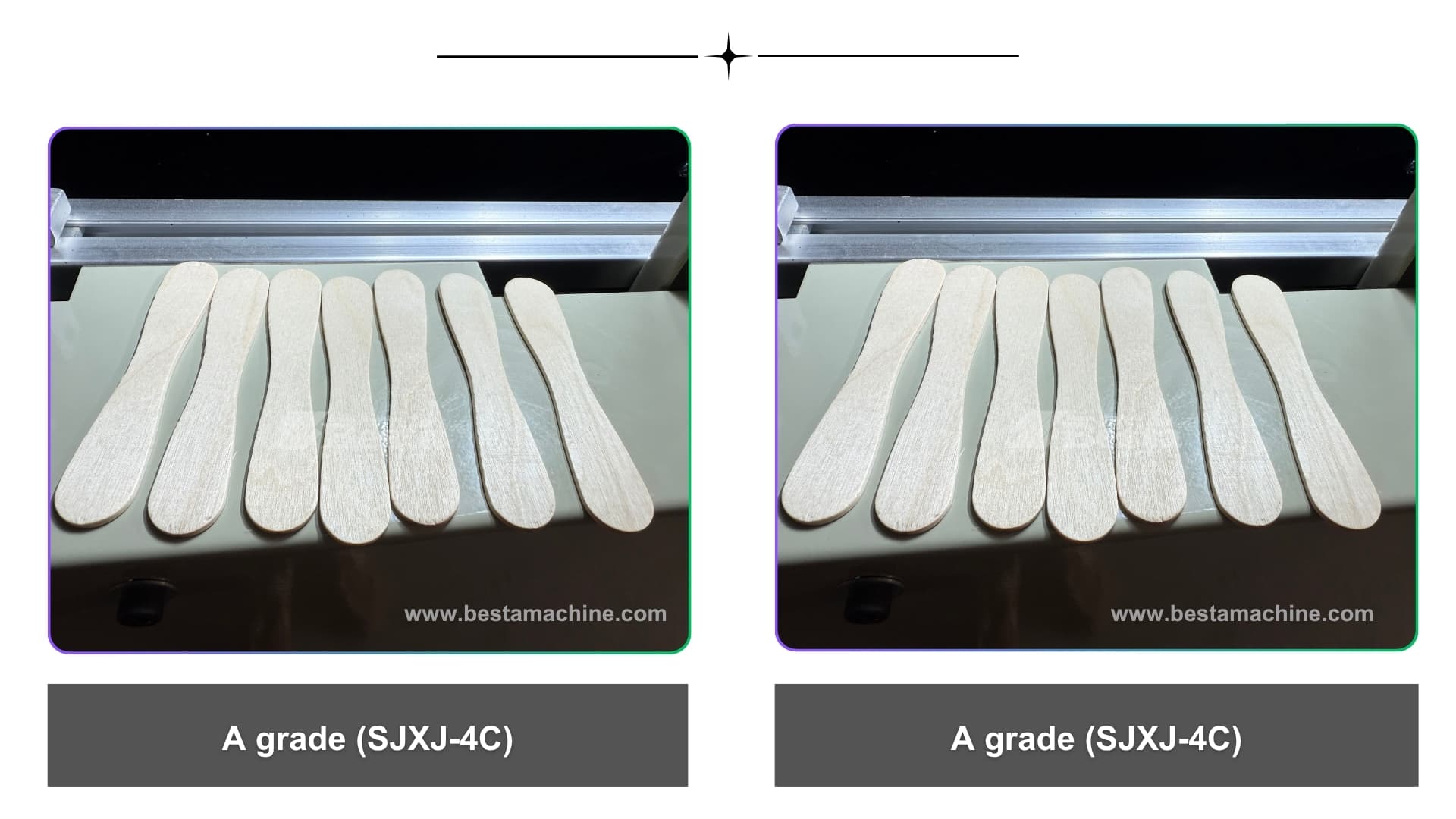

The software allows for customizable quality thresholds, and the system automatically classifies ice spoons into four grades: A (first-class), B, C, and D, achieving refined quality grading. The equipment is easy to operate and supports remote operation and maintenance and technical support.
This equipment is particularly suitable for those with high requirements for finished product quality. Its core function is to perform high-precision visual sorting after the initial screening removes most of the waste material, thereby ensuring the stability and excellence of the final product quality.
| Model | SJXJ-4C |
| Product Name | Visually Stick Selecting Machine |
| Power | 1.0 KW 220V, 50HZ (Single Phase) |
| Characteristic | Adopting Colorful Camera, Advance Image Detecting |

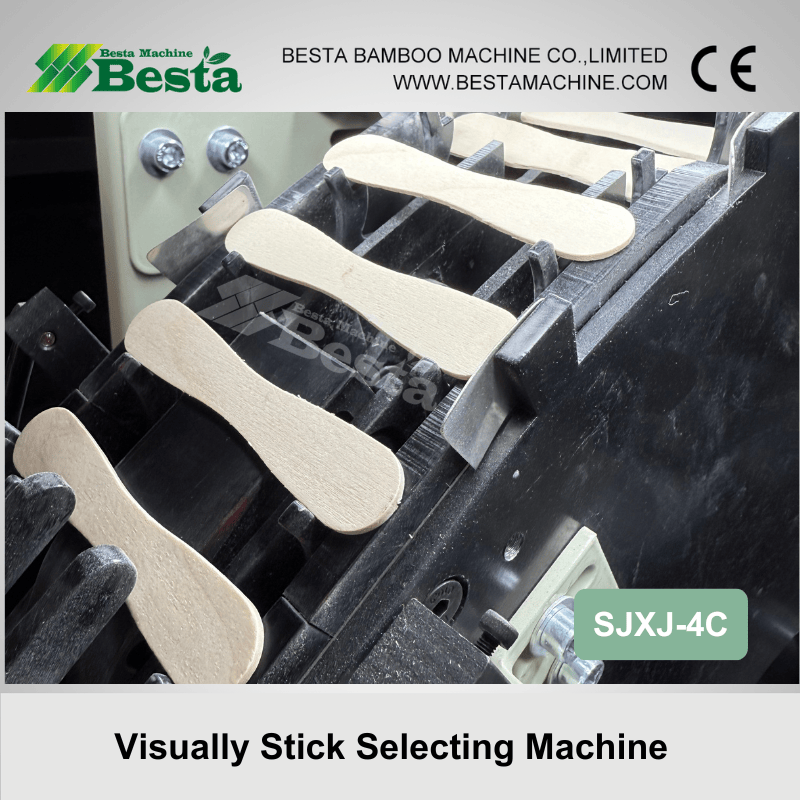

| Designed for | 94MM Magnum Sticks |
| Selecting Type | It is for further selecting &fine selecting |

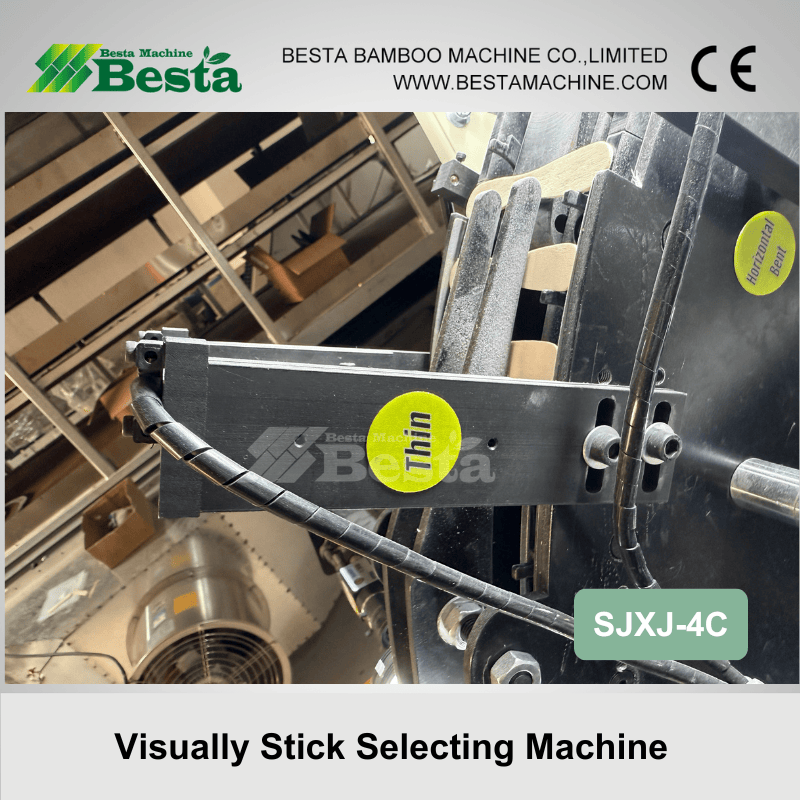

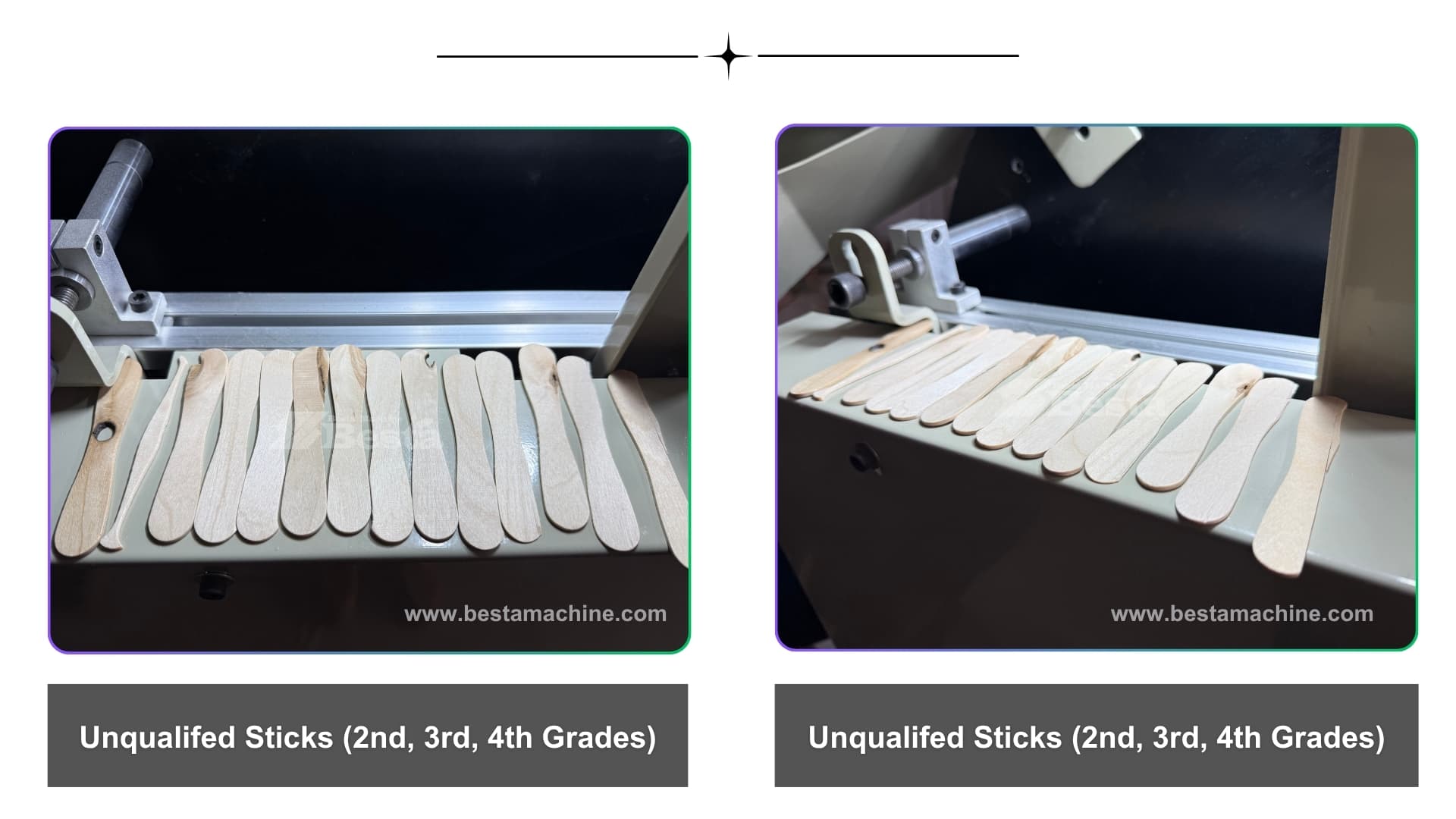

| SELECTING ITEMS | 1. Bent Stick 2. Thin Stick 3. Narrow Stick
4. Short Sticks 5. Color Problems (color difference/other problems which need visual selecting systems) |
| Output | About 17,000 TO 25,000 PCS/HOUR |
| Machine Weight | 400 KGS |
| Machine Size | 3200*950*1700MM |
