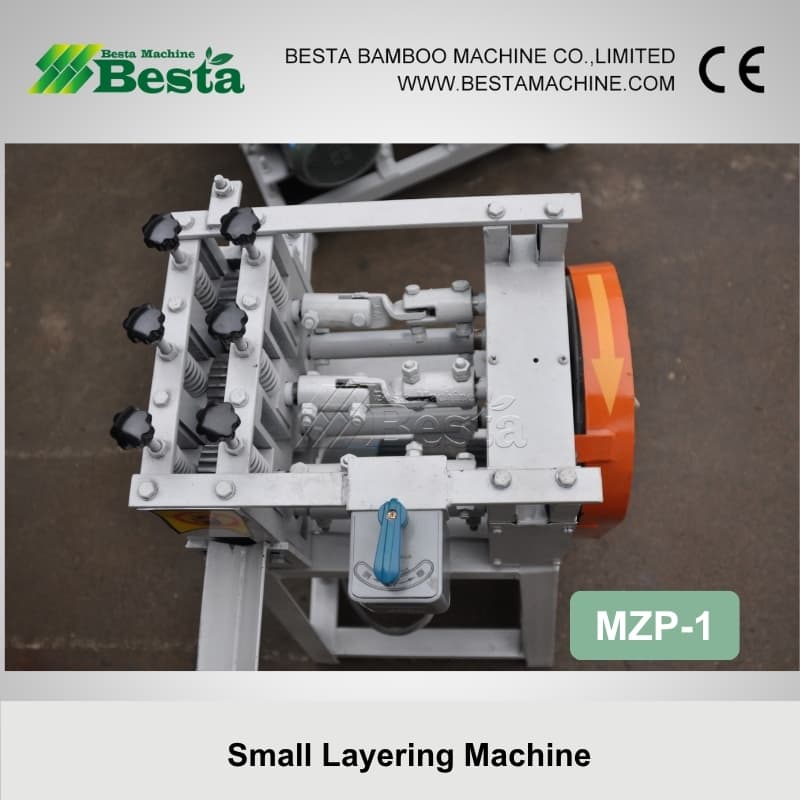

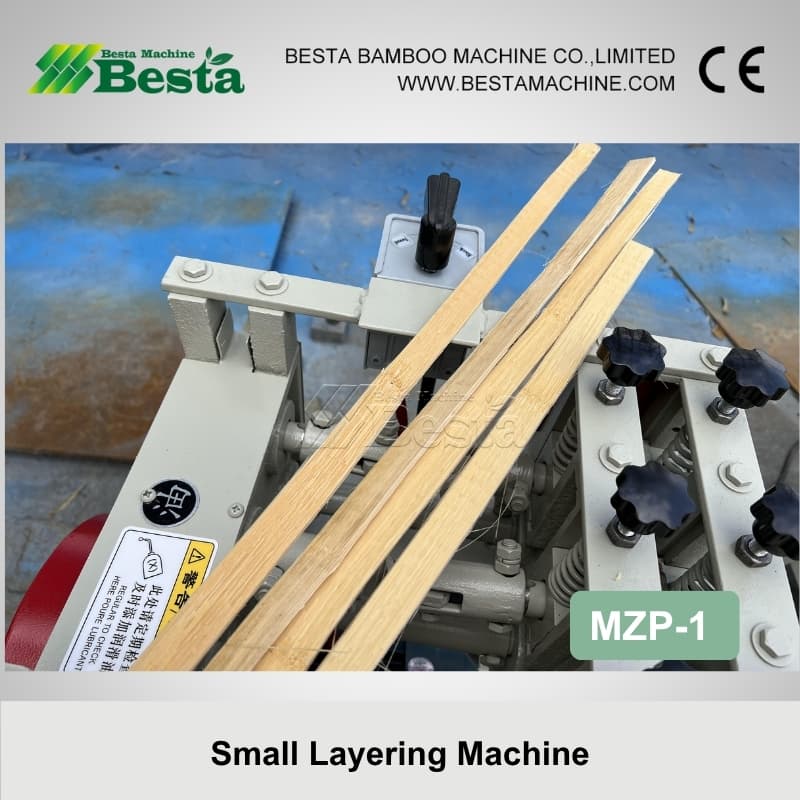

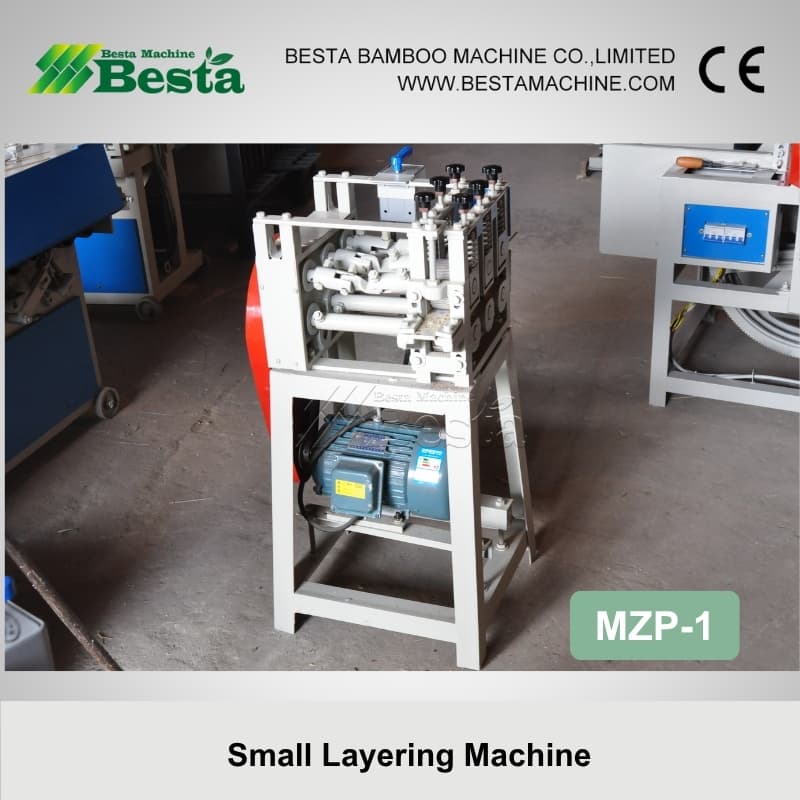

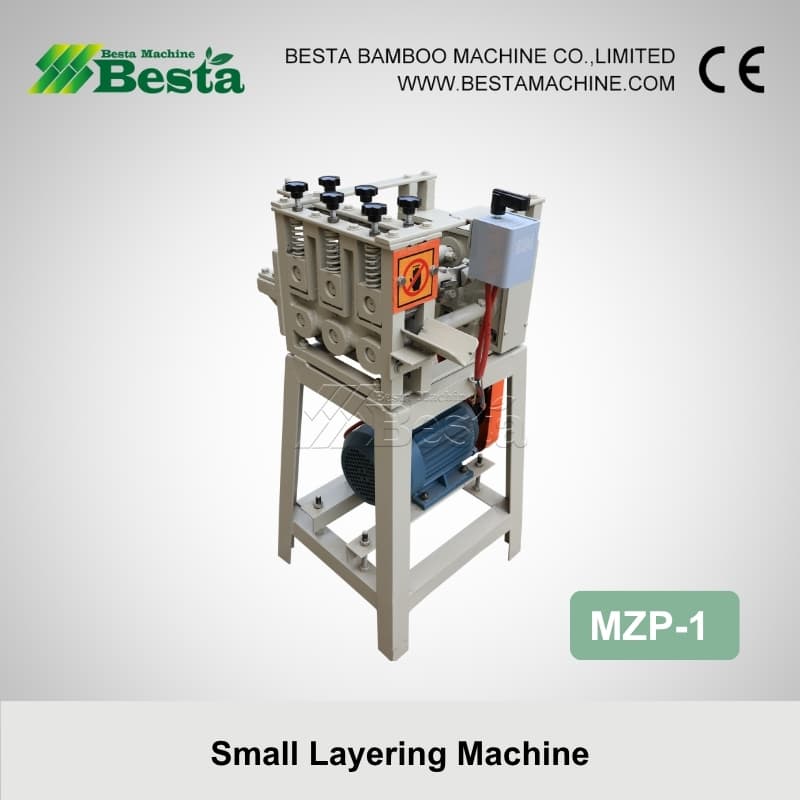

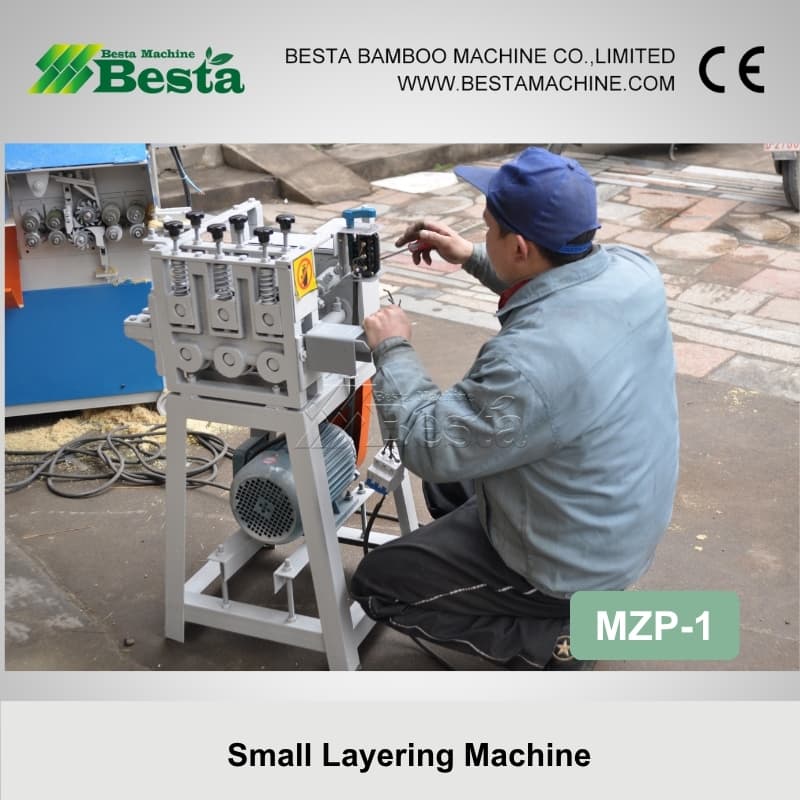

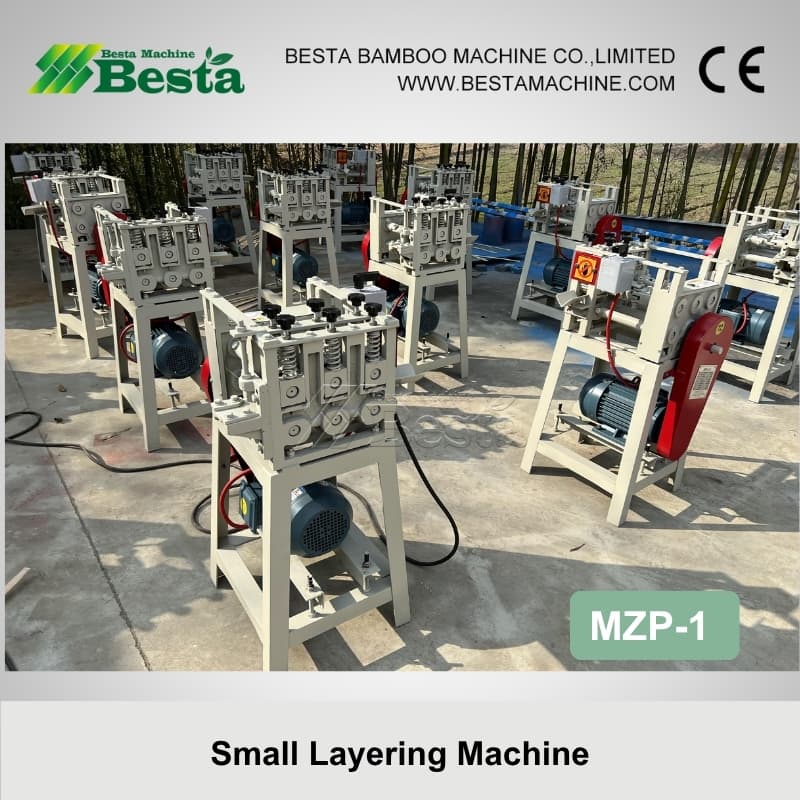

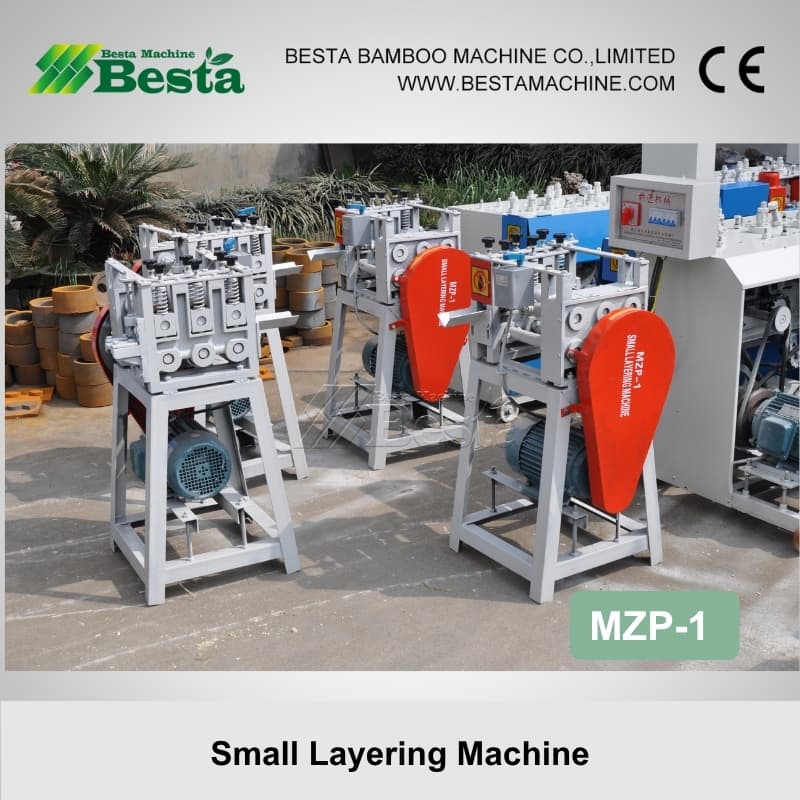

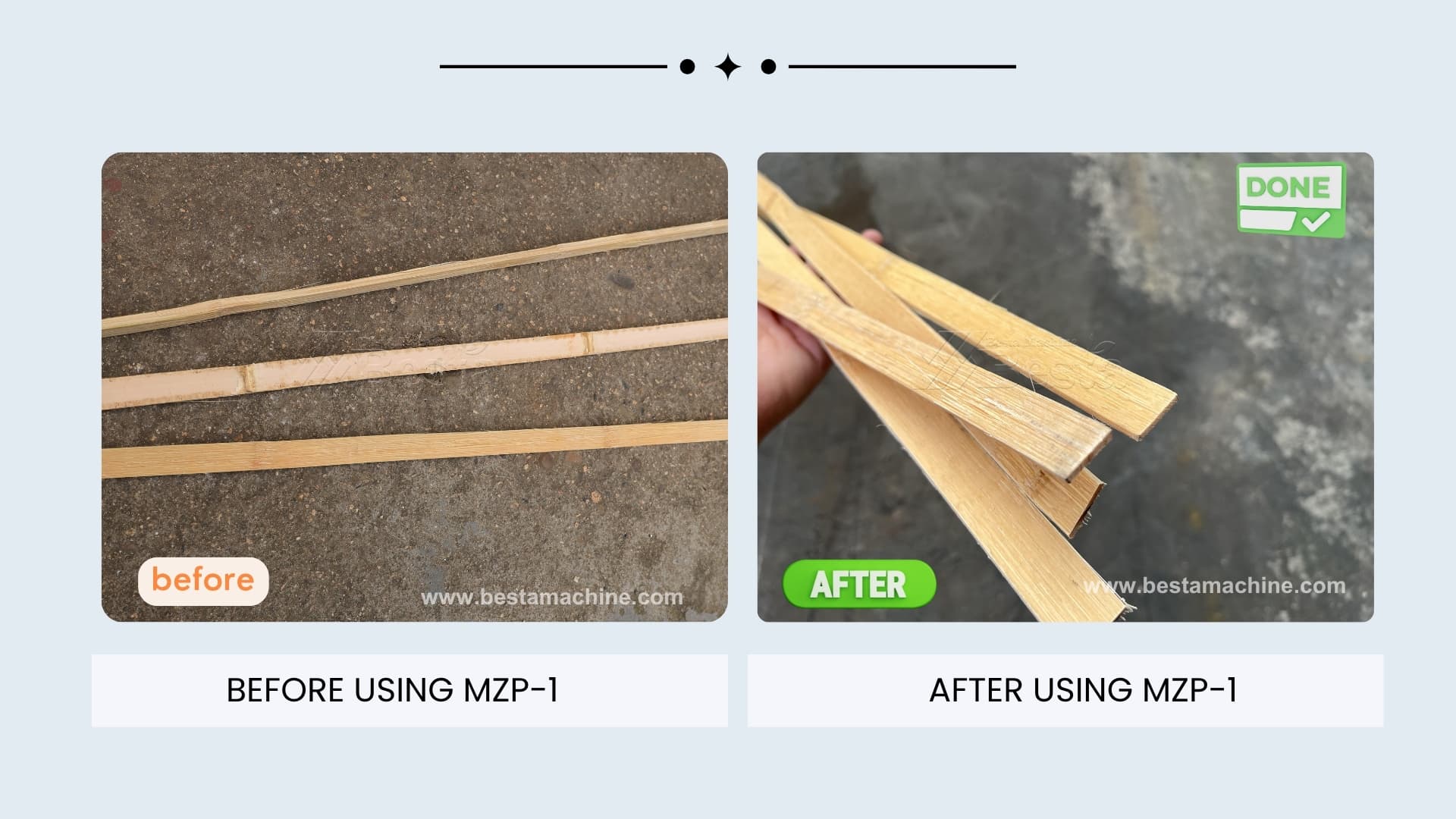

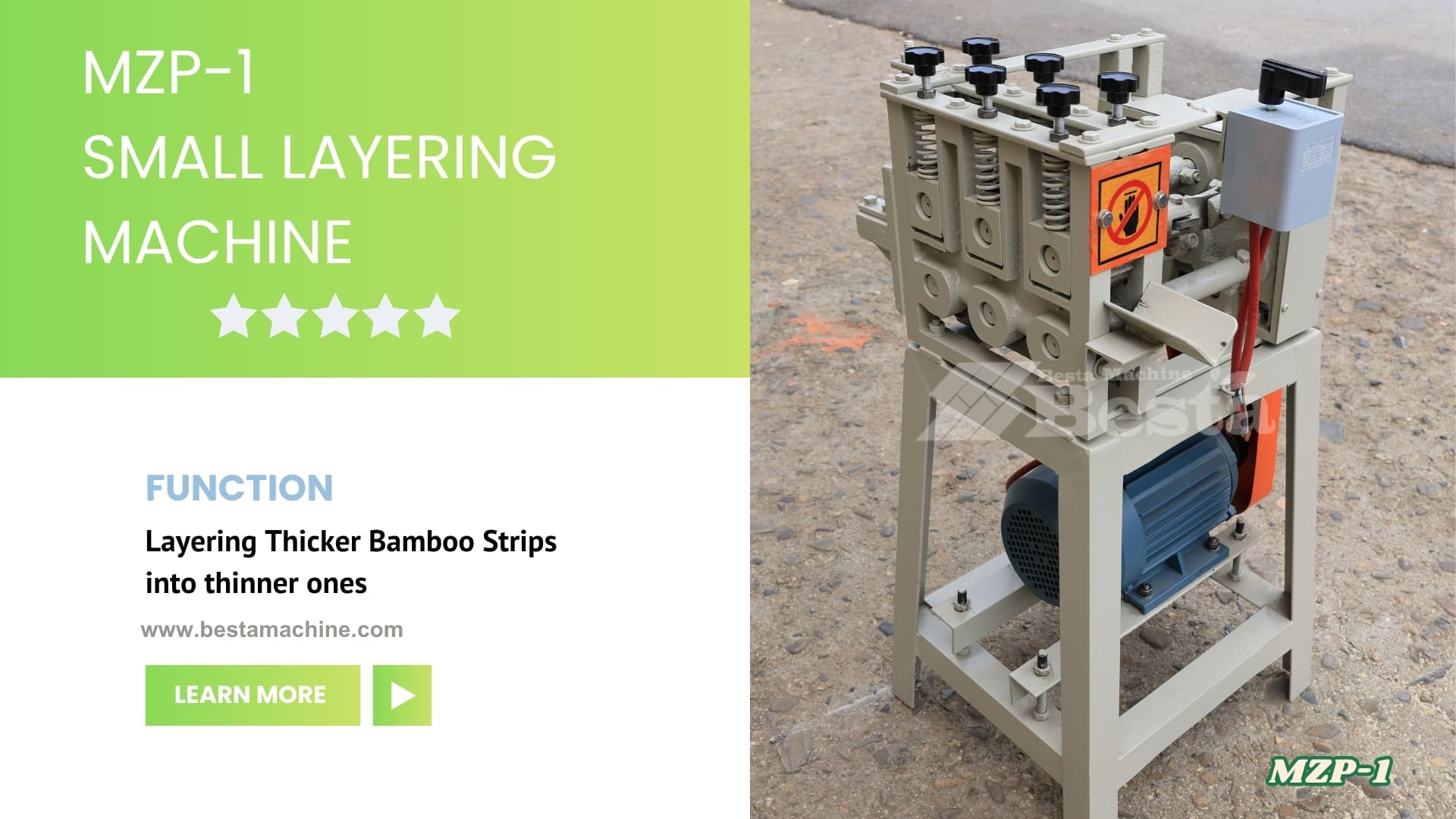

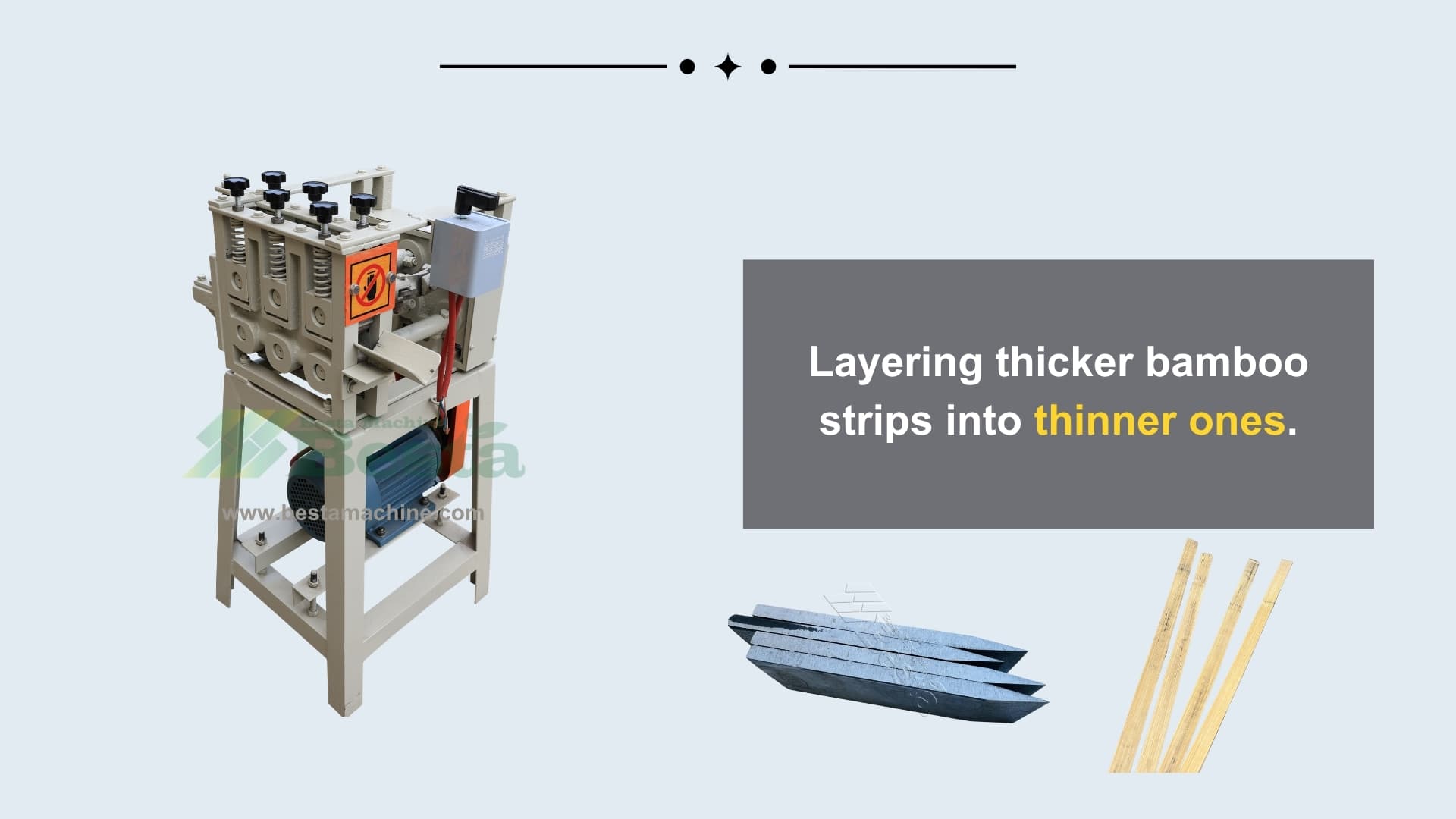

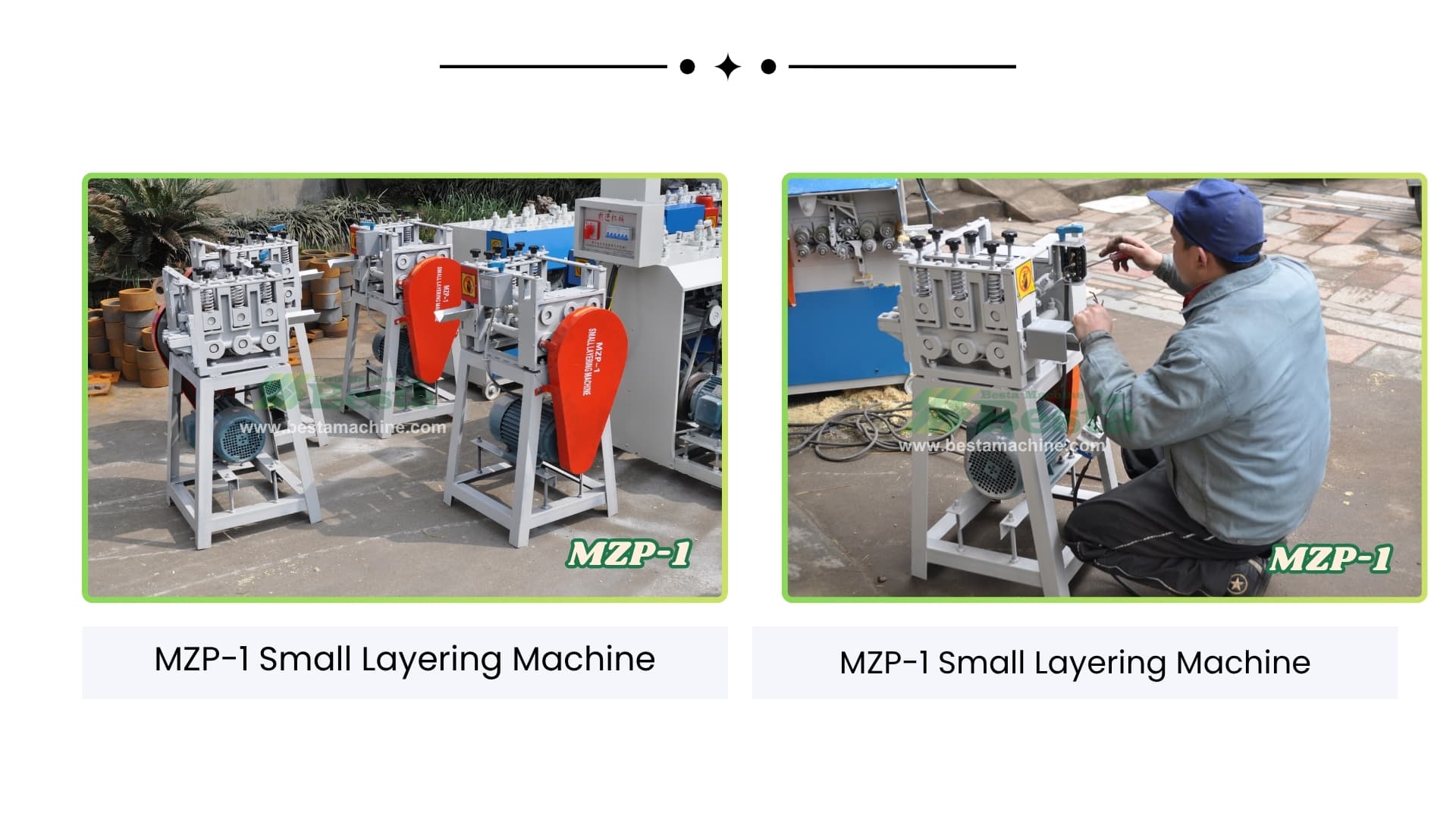

MZP-1 Small Layering Machine is an essential component in the bamboo stick making production line. The main function for this machine is for precise layering thick bamboo strips (known as yellow part bamboo strips) into a desired bamboo strip thickness. For example, we feed a 6mm thickness yellow strip into MZP-1, after layering, we will get 2 pieces of bamboo strips. (one is 3.5mm thickness and the other is 2.5 MM) The desire bamboo bamboo strip (3.5mm) we set will be used for next step bamboo stick making.
Technical Data
|
MZP-1 |
| Name | Bamboo Strip Small Layering Machine |
| Power | 2.2 KW (380 V, 50HZ) |
| Function | Layer thick bamboo strip into thinner ones |
| Process Thickness | Max. 15 MM |
| Weight | 120 KGS |
| Machine Size | 540*570*960 MM |

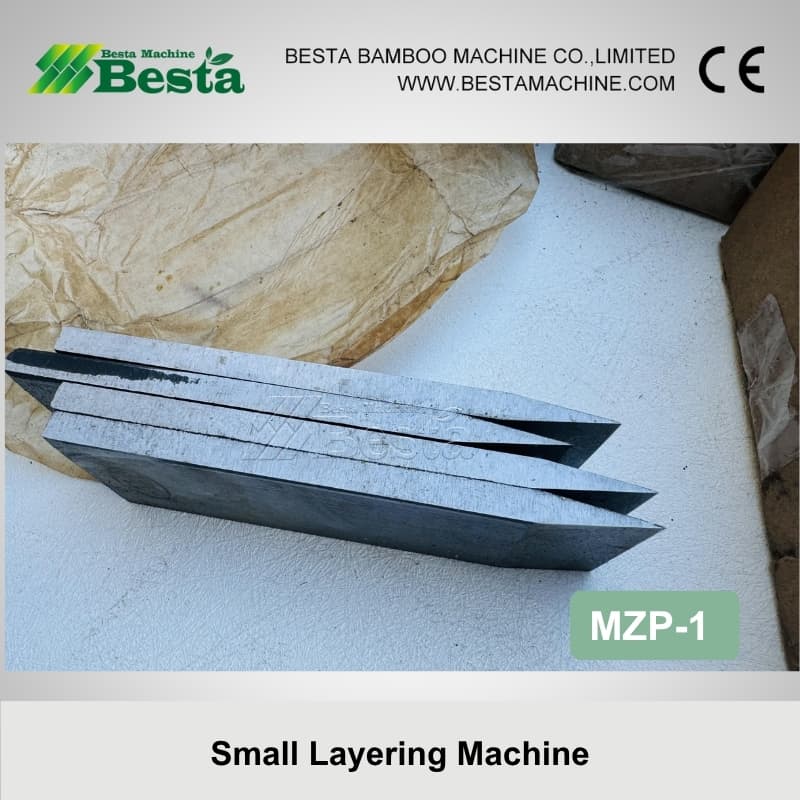

You can set the strip thickness by adjusting the layering blade.
Feel free to contact us for professional services and advice.
