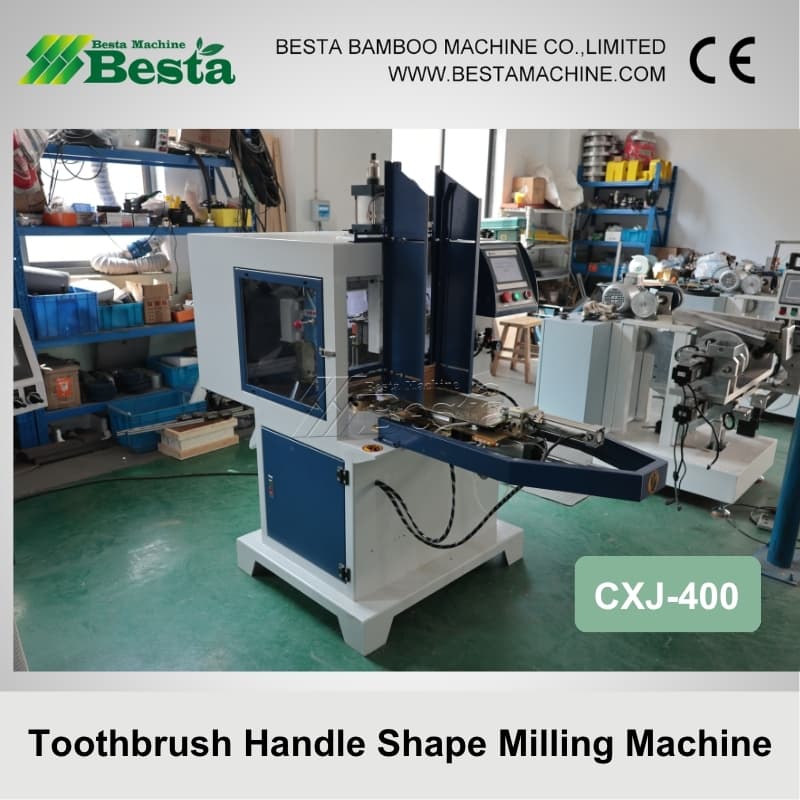

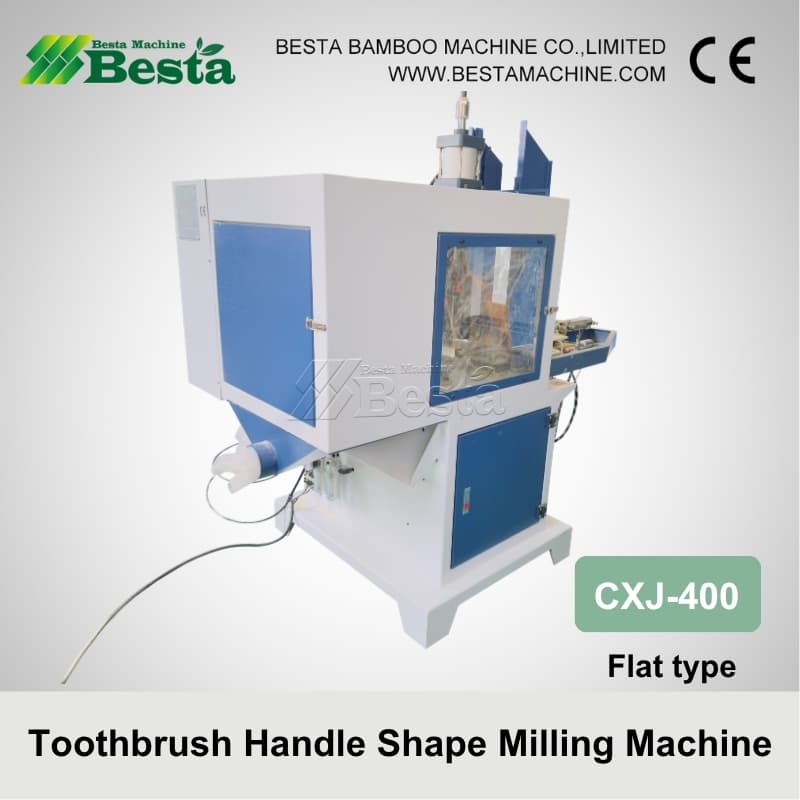

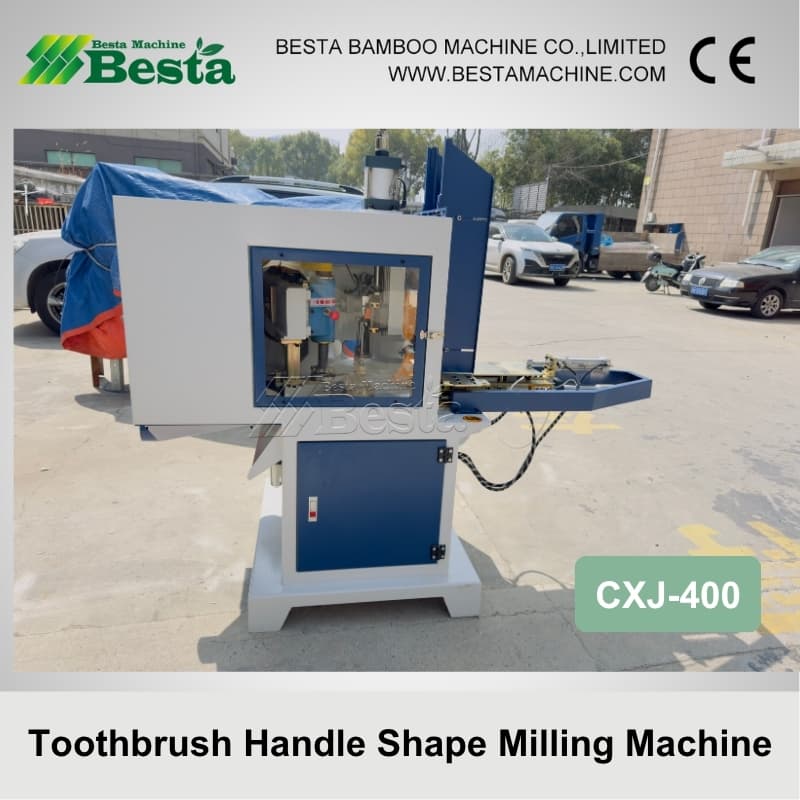

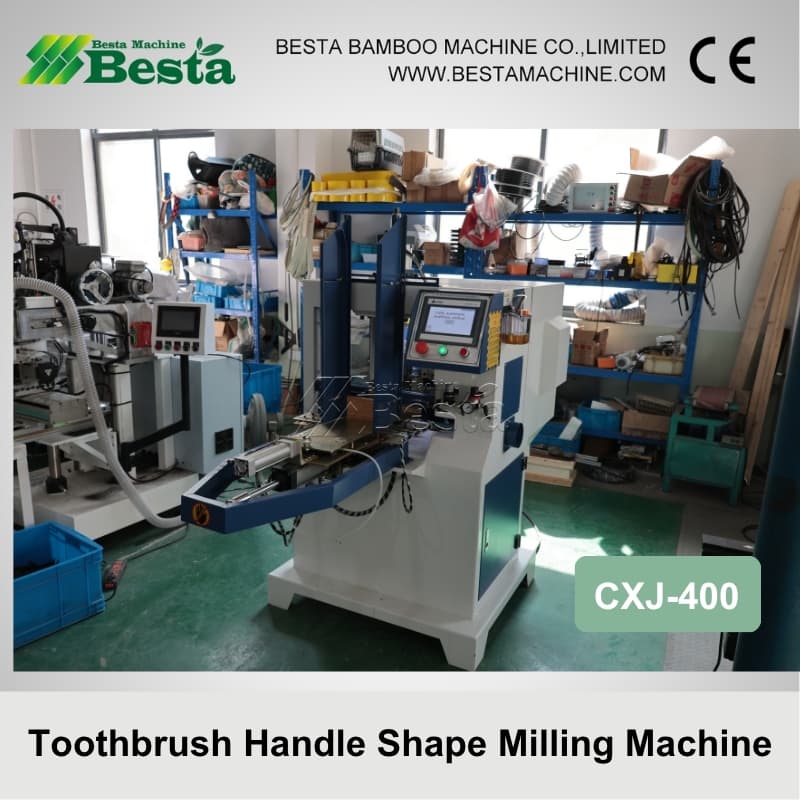

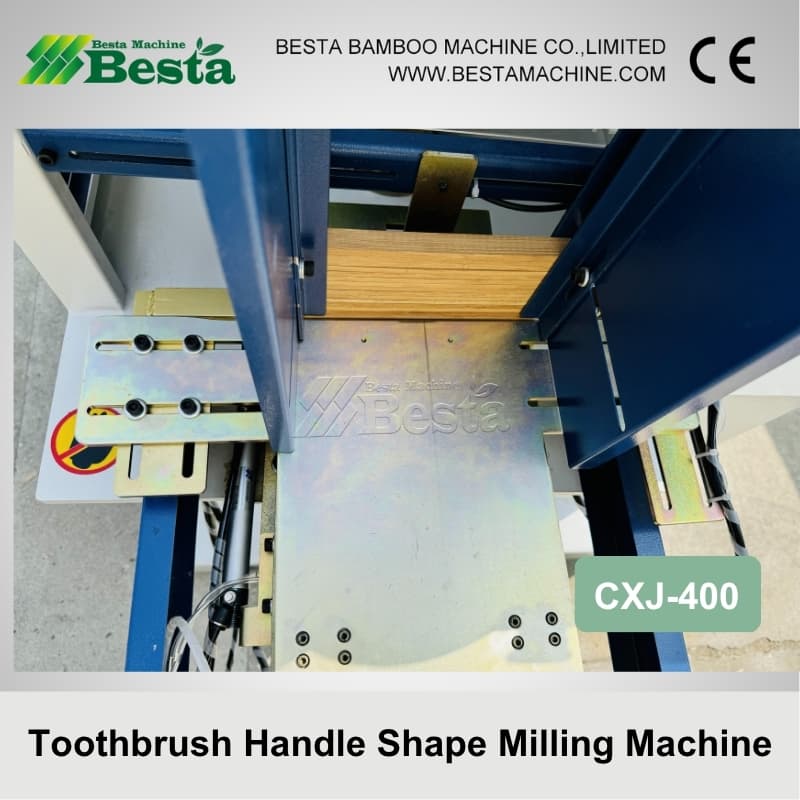

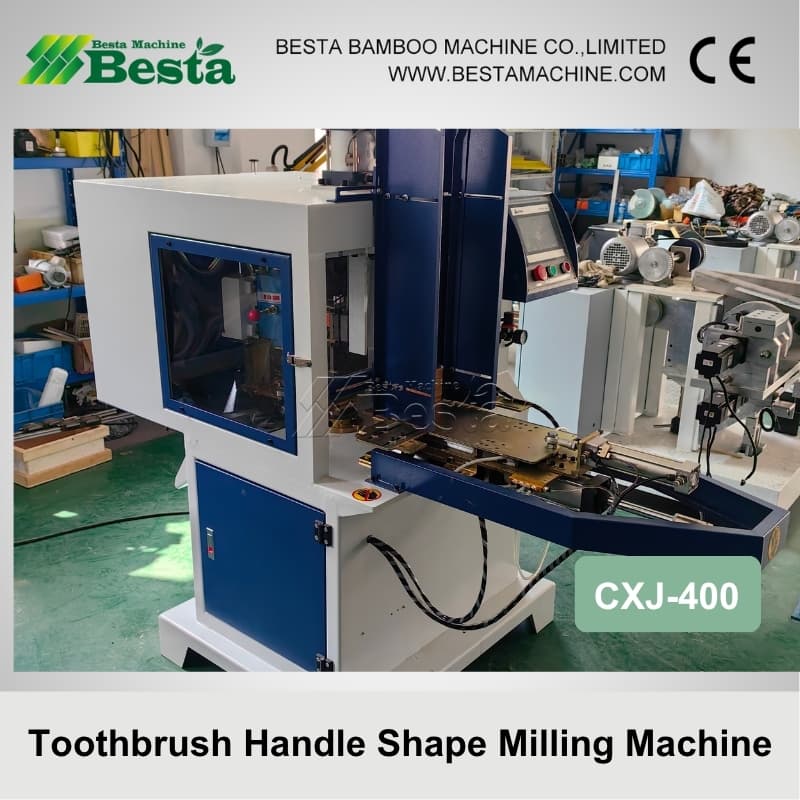

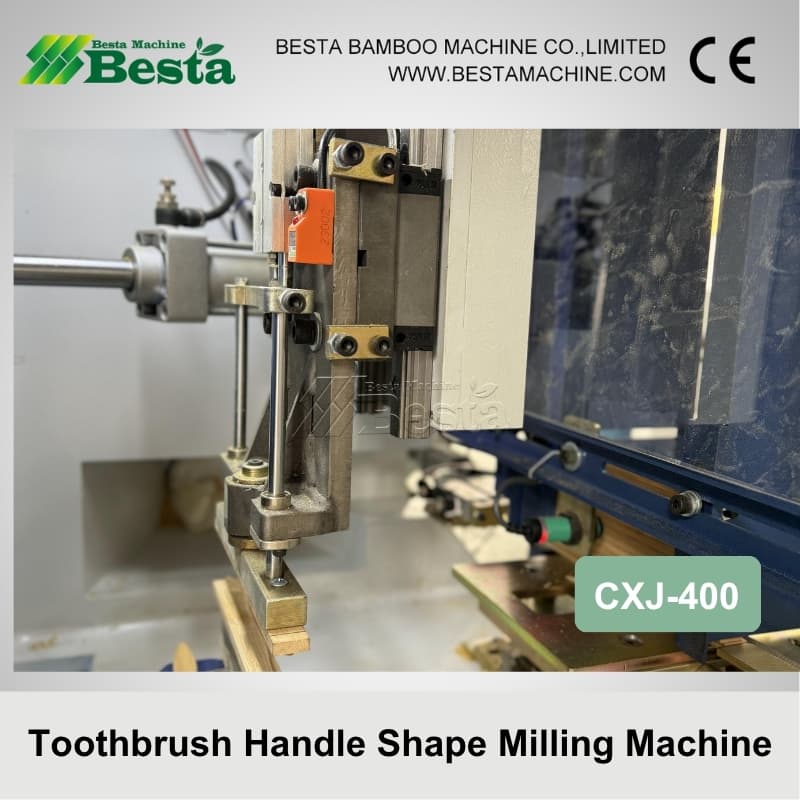

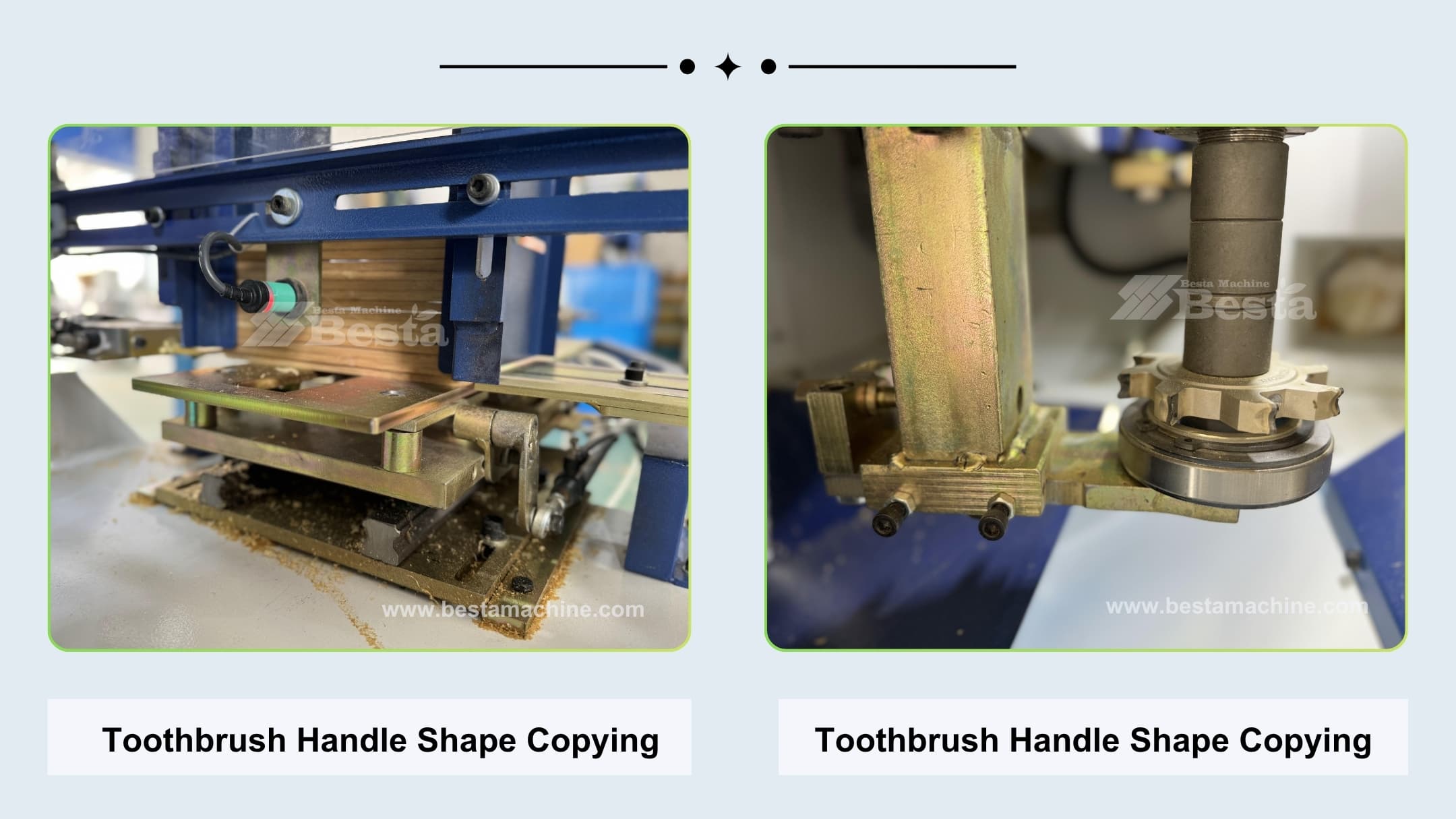

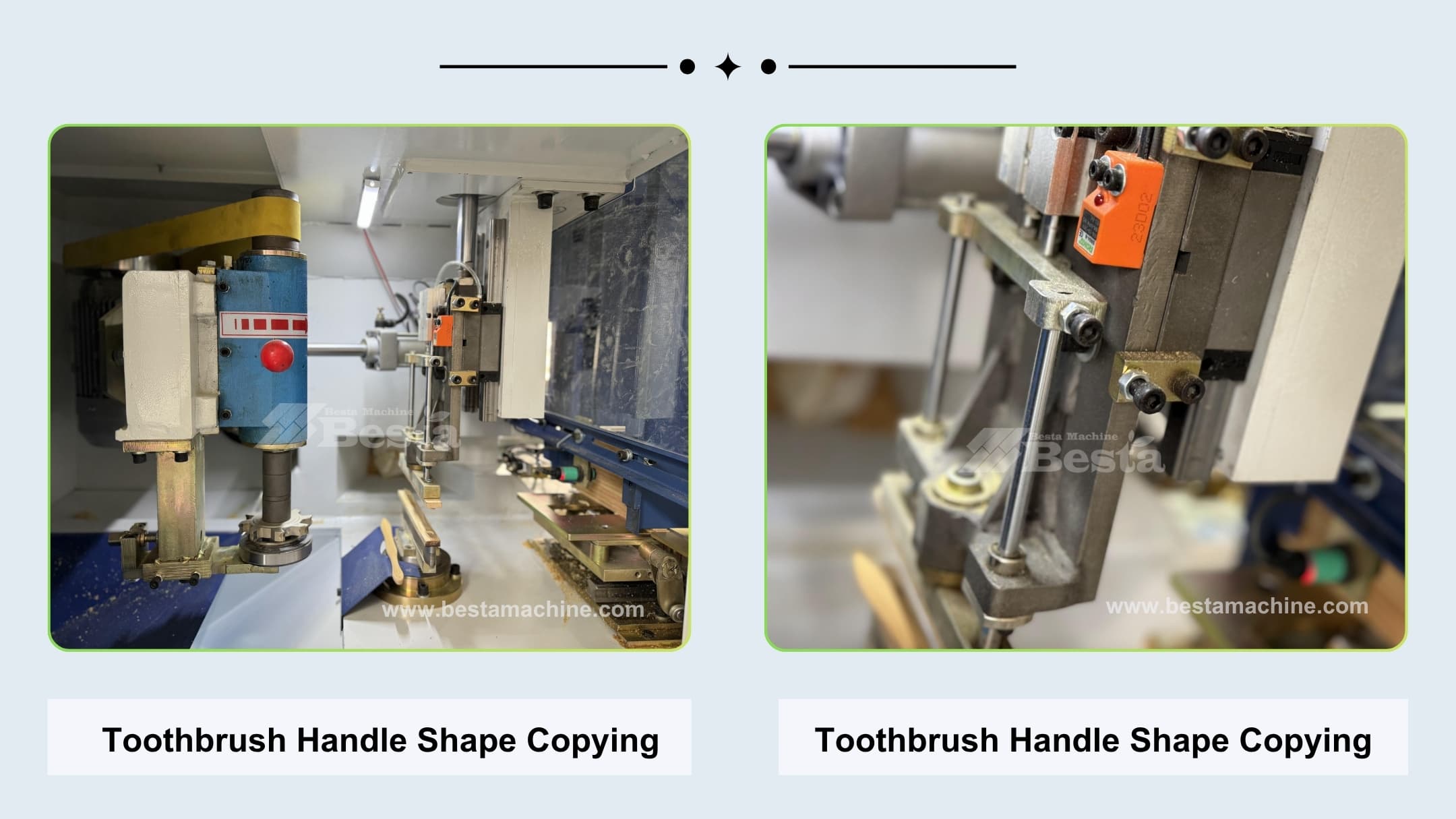

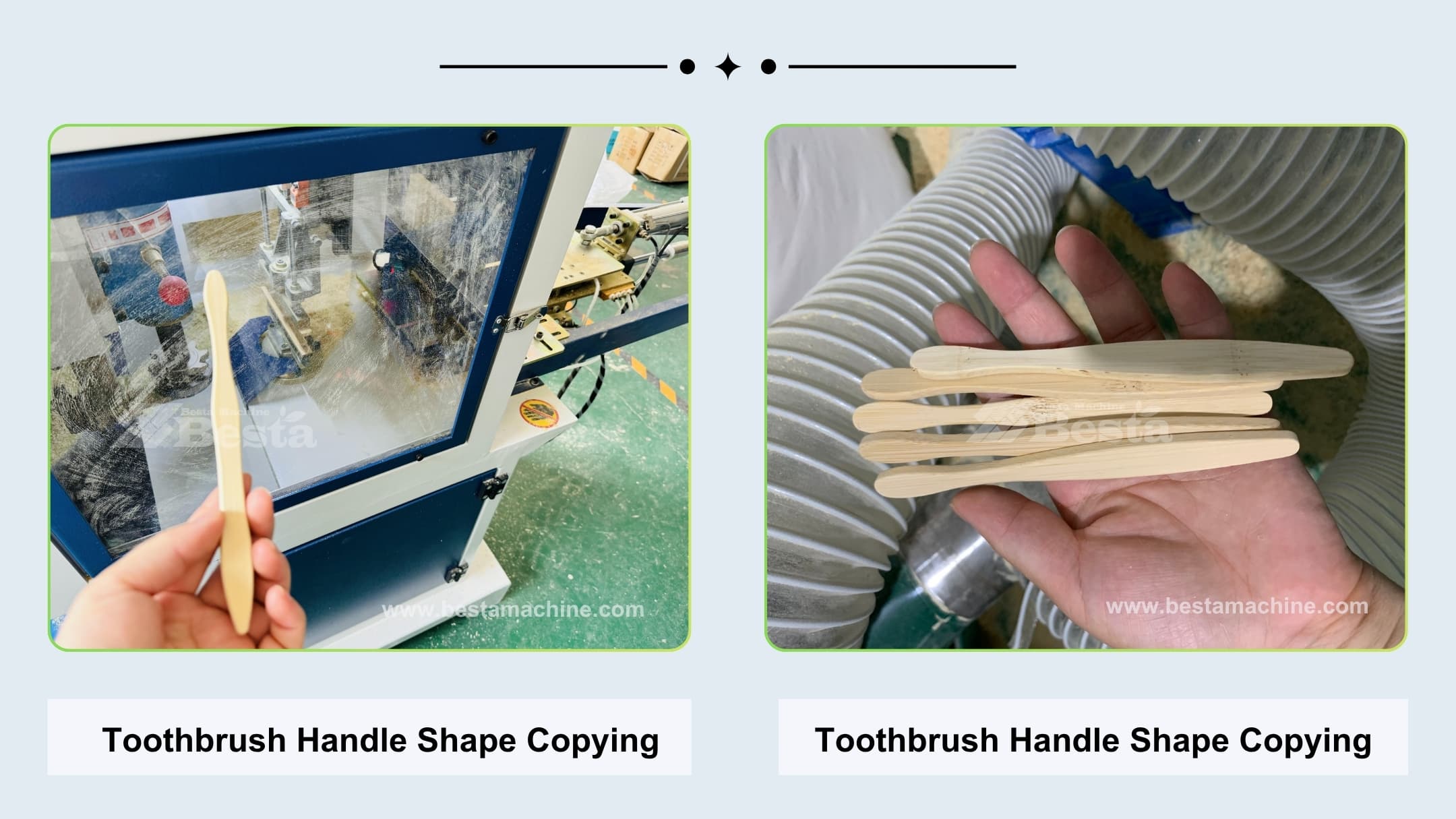

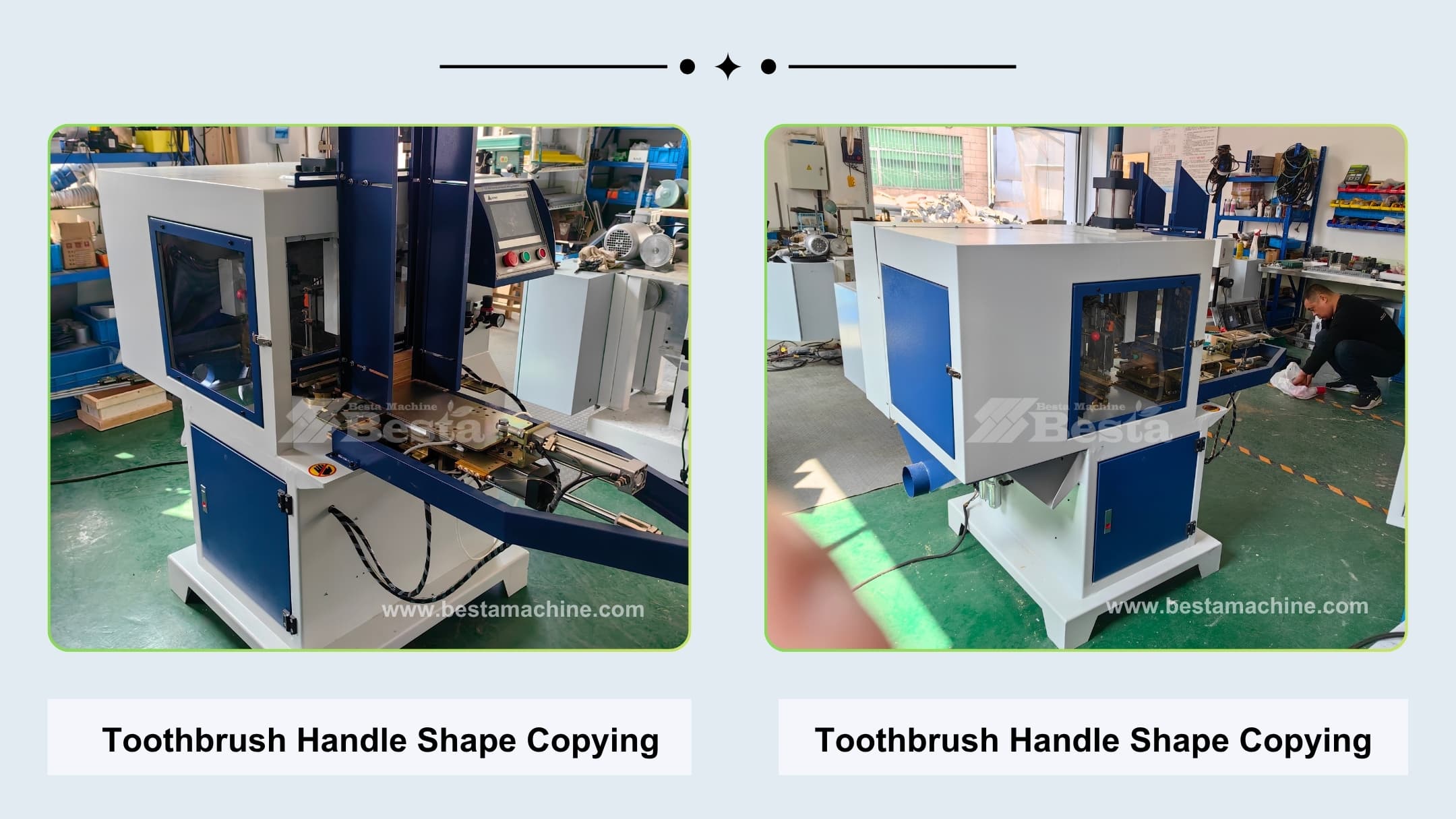

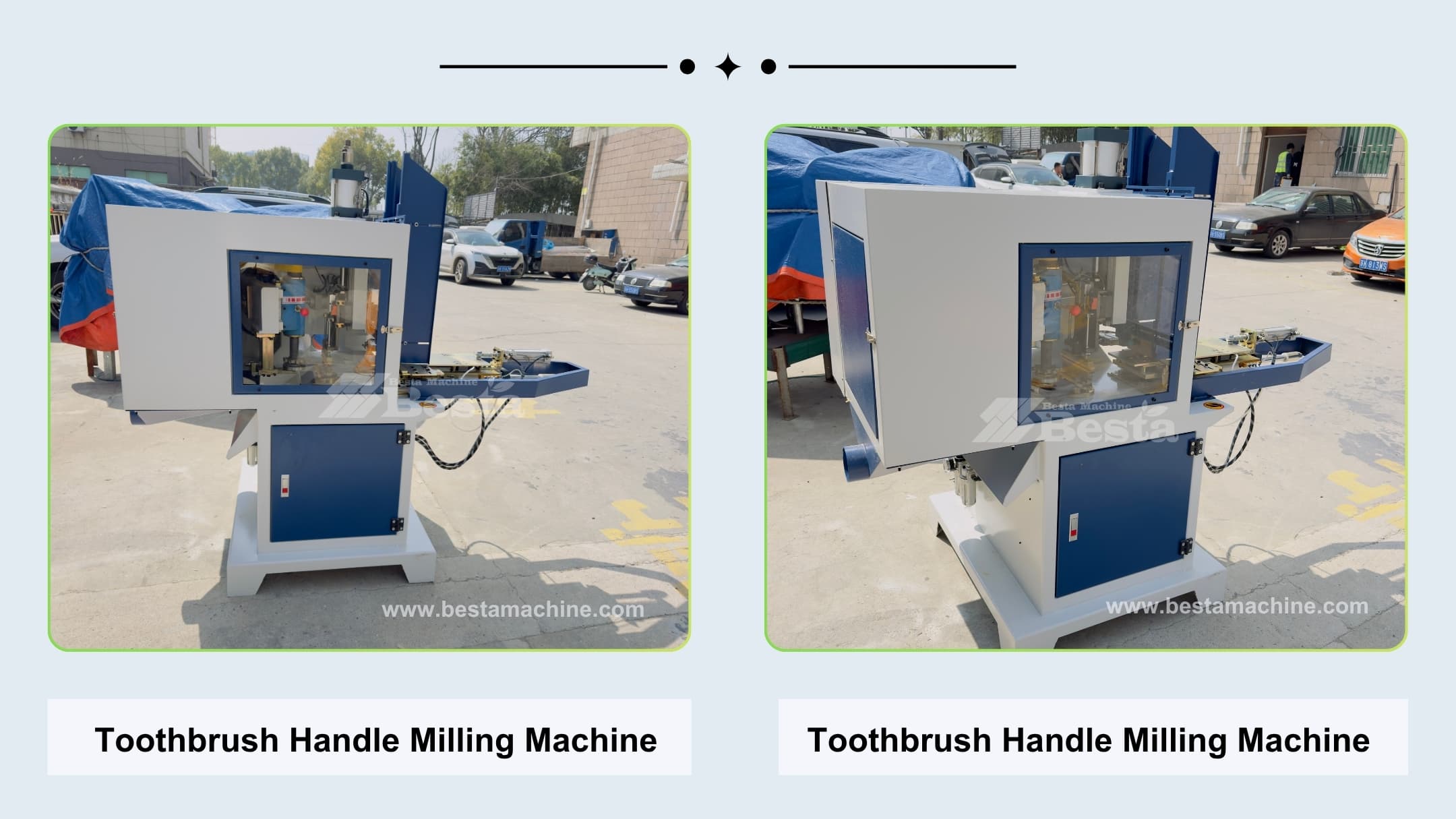

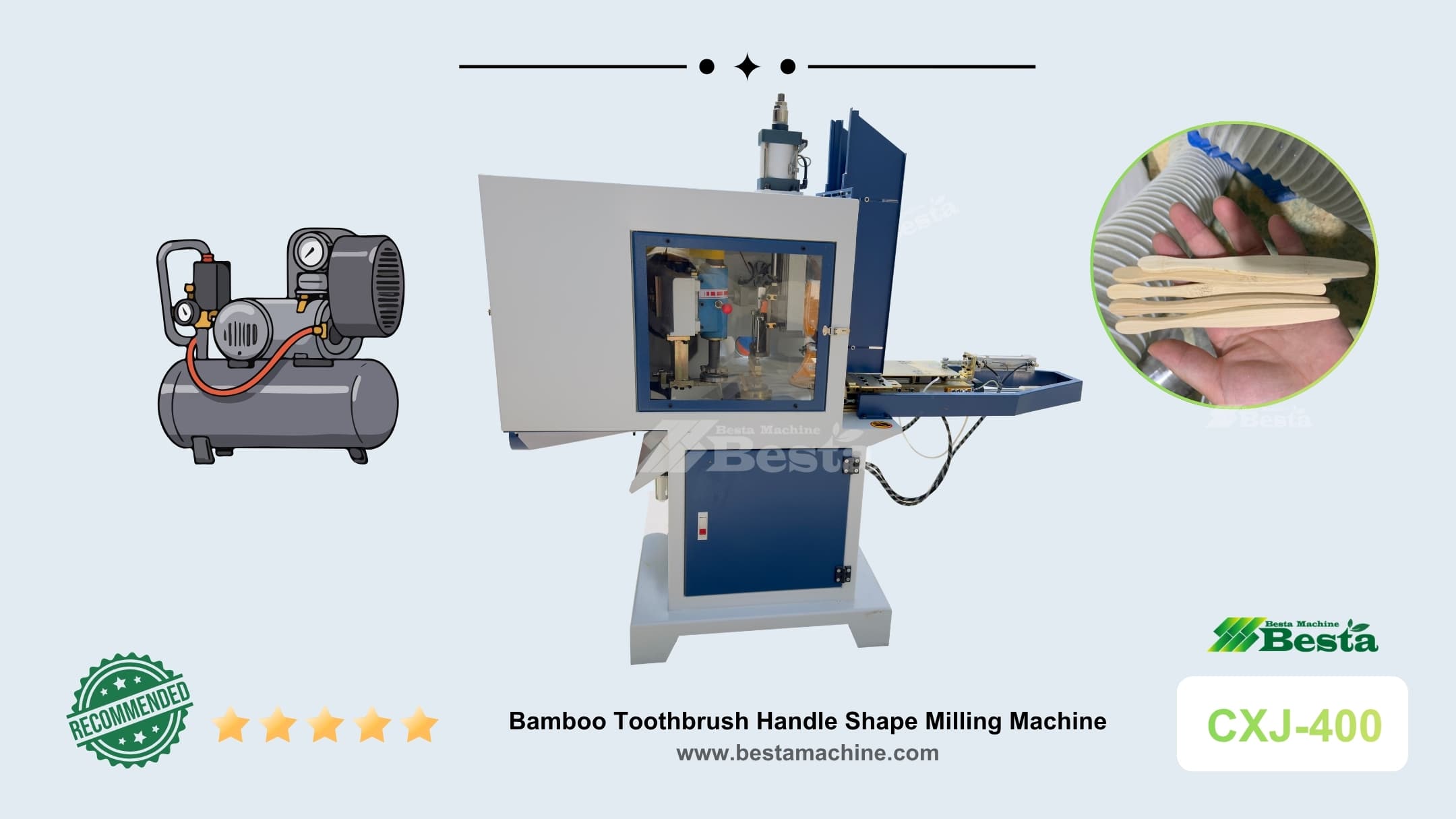

CXJ-400 Toothbrush Handle Shape Copying Machine is also called Toothbrush Handle Shape Profiling machine. It is used for milling bamboo strips into toothbrush handle. This machine is mainly used for flat shape toothbrush handle shape milling. The shape of the toothbrush handle is related to the handle shaping mould.This machine is suitable for the production of toothbrush handles for both adults and children.
Bamboo Toothbrush Shape Copying Machine, Toothbrush Handle Milling Machine
| Product Name | Toothbrush Milling Machine |
| also called | Toothbrush Handle Shape Copying Machine (type 1) |
| Model | CXJ-400 |
| Function | Shape forming strips into toothbrush handle |

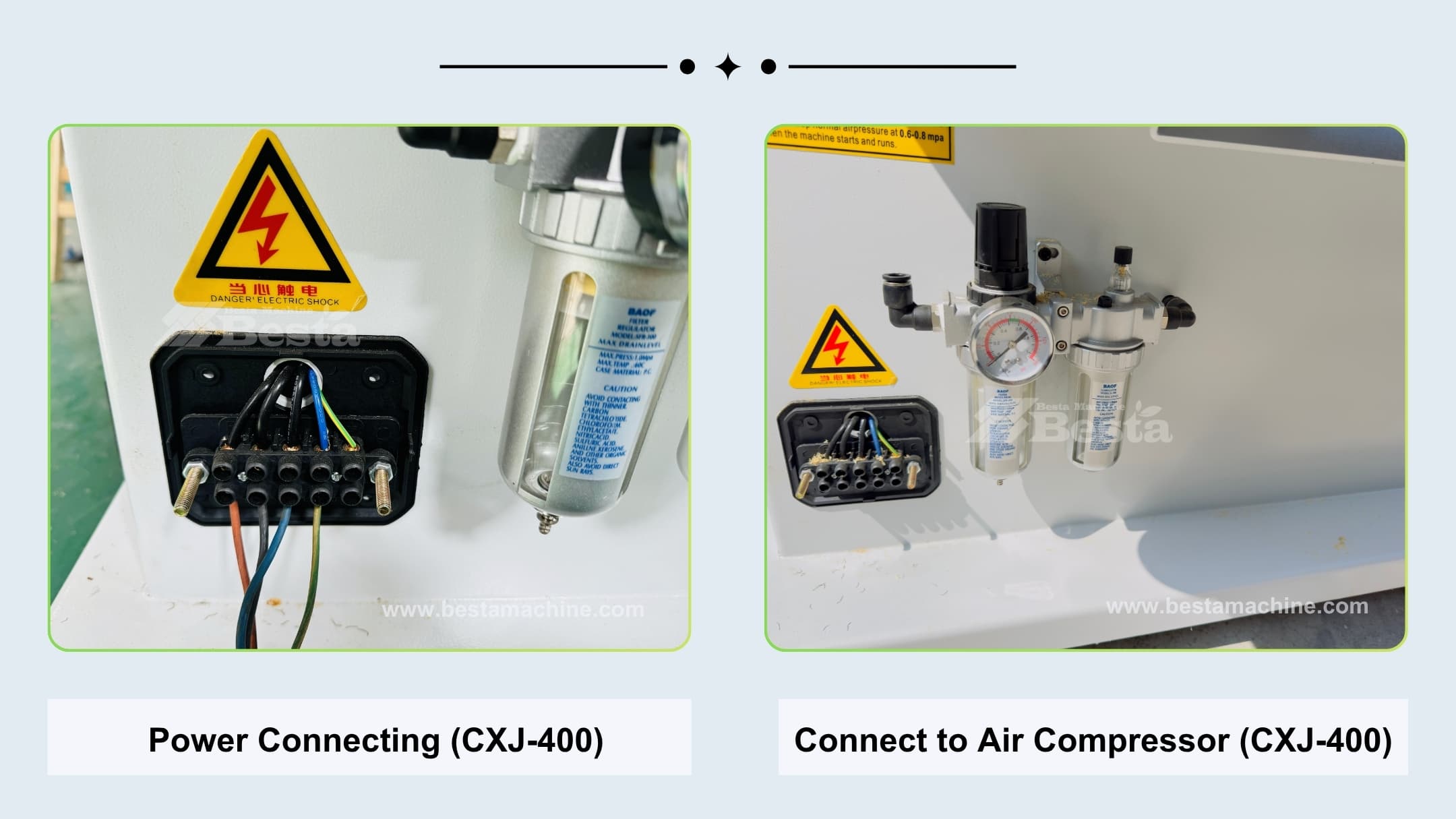

| Power | 5.5 KW (380V,50HZ) |
| Main Axis Rotating Speed | 12000 R/MIN |
| Feeding speed with frequency control | 4 to 20 R/MIN |
| Processing Length | 50 to 400MM |
| Processing Width | 15 to 200MM |
| Dust Outlet Diameter | 5 to 50MM |
| Machine Size | 1800*1650*1750MM |
| Machine Weight | 600 KGS |

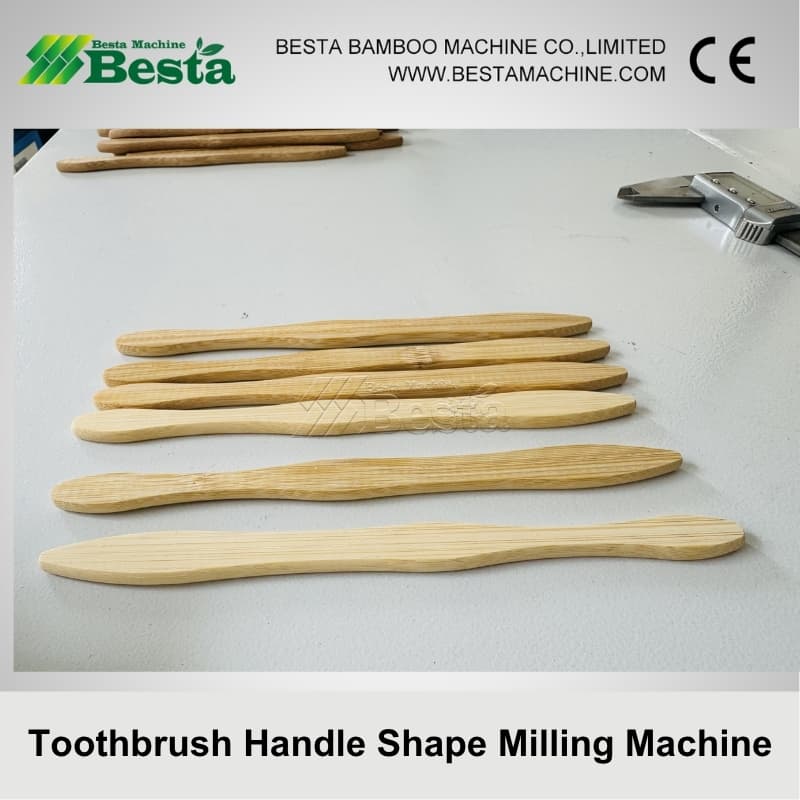

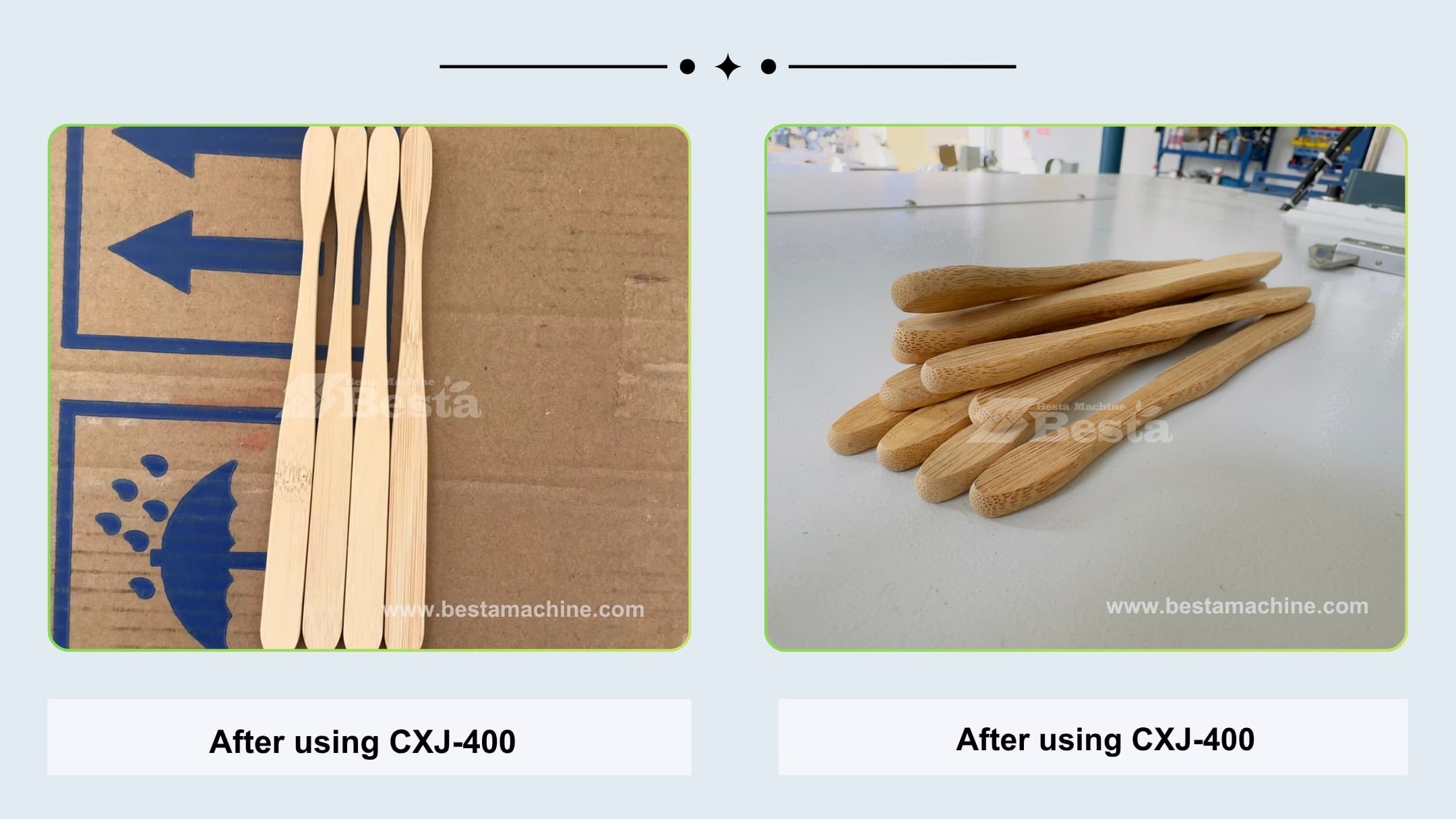

For the regular strips for making adult use toothbrush handle,the bamboo strip size is as follows,
Length: 190 MM
Width: 19~20 MM
Thickness: 5.0MM to 5.5MM
Feel free to contact us for professional services and advice.
