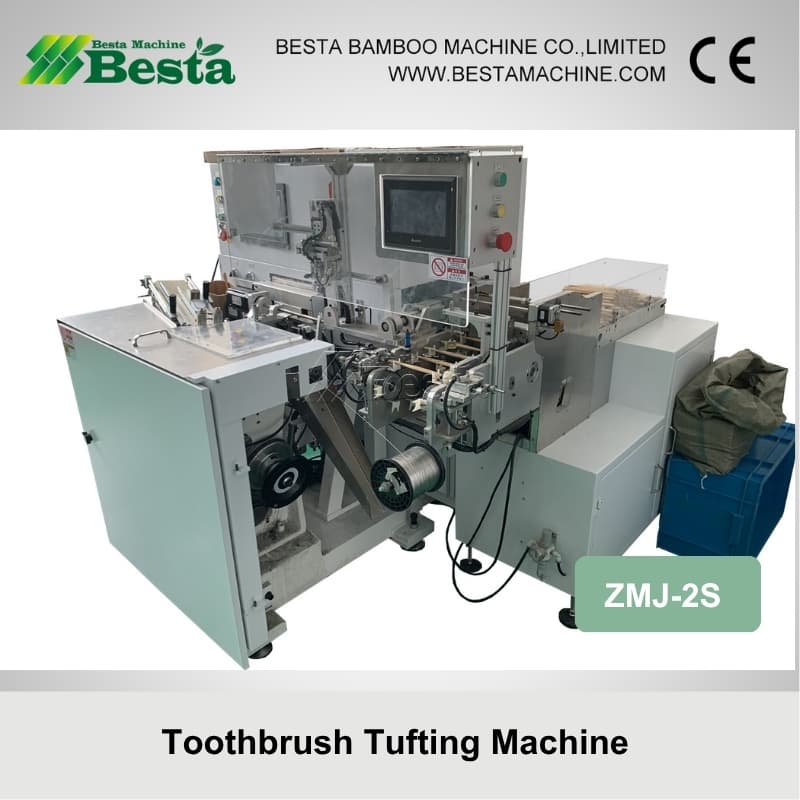

ZMJ-2S AUTOMATIC Toothbrush Tufting Machine is an automatic feeding type toothbrush tufting machine. This machine is suitable for both bamboo and wooden toothbrush tufting.
| Machine Name | Automatic Toothbrush Tufting Machine |
| Model | ZMJ-2S |
| Application | Bamboo or wooden toothbrush making |
| Function | Inserting and securing clusters of bristles (called “tufts”) into the head of a toothbrush. |
| Feeding type | Automatic Feeding |
| Power | 2.5 KW (220V, 50HZ, single phase) |
| Max filament length (mm) | 40mm |
| Machine Size | 1420mm*1250mm*1250mm |
| Filament length range (mm) | 1.2~2.5mm |
| Driving motor | CA servo motor |
| Machine Weight | 950 KGS |
| Machine Size | 1420MM*1250MM*1250MM |
The core mission of this machine is to precisely align and insert tufts of bristles into each pre-set hole in the toothbrush head. By integrating multi-axis control and an automatic feeding system, it can flexibly adapt to various toothbrush head, automatically grasping and arranging bristle. This machine is two-color type Toothbrush Tufting Machine, which can make toothbrush with bristles with 2 colors.
The device can flexibly adapt to different types of toothbrush handles and its hole designs. Its built-in intelligent program library has preset multiple advanced hair planting modes, which can be accurately selected and called according to different needs.
It is a a key component for efficient, large scale toothbrush production.
Feel free to contact us for professional services and advice.
