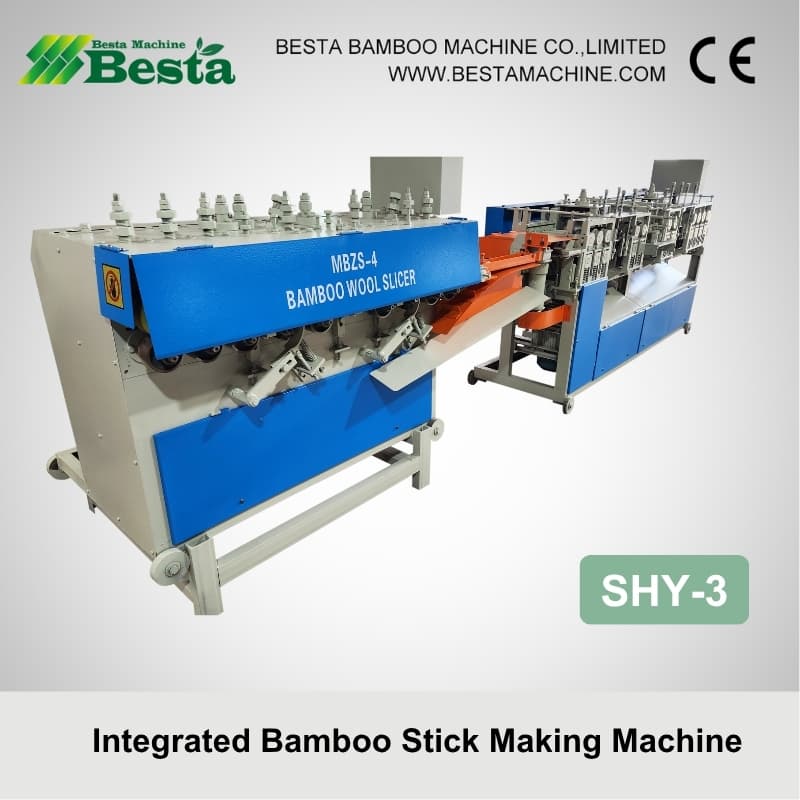

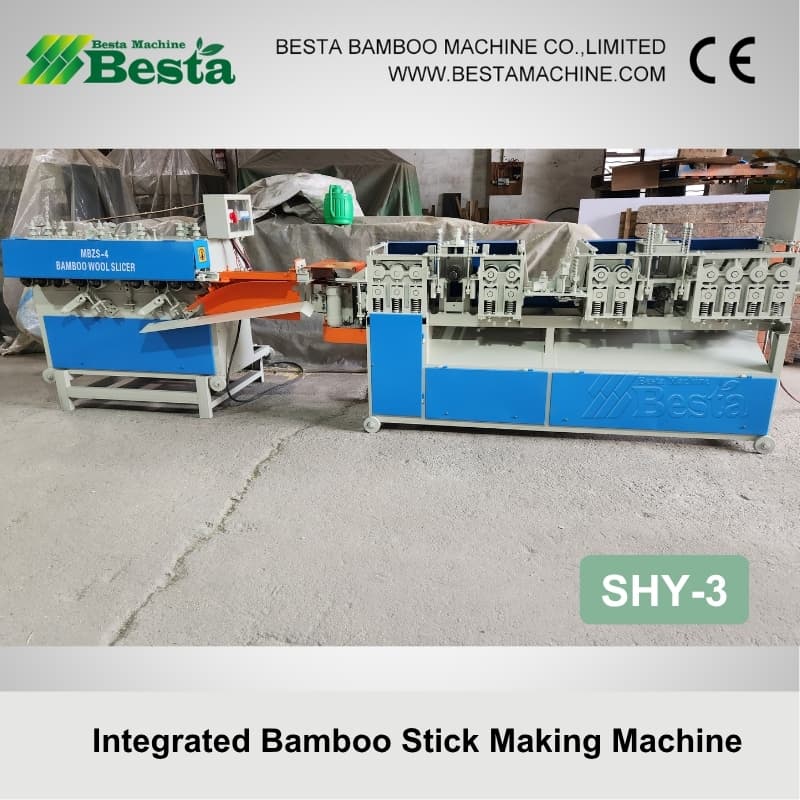

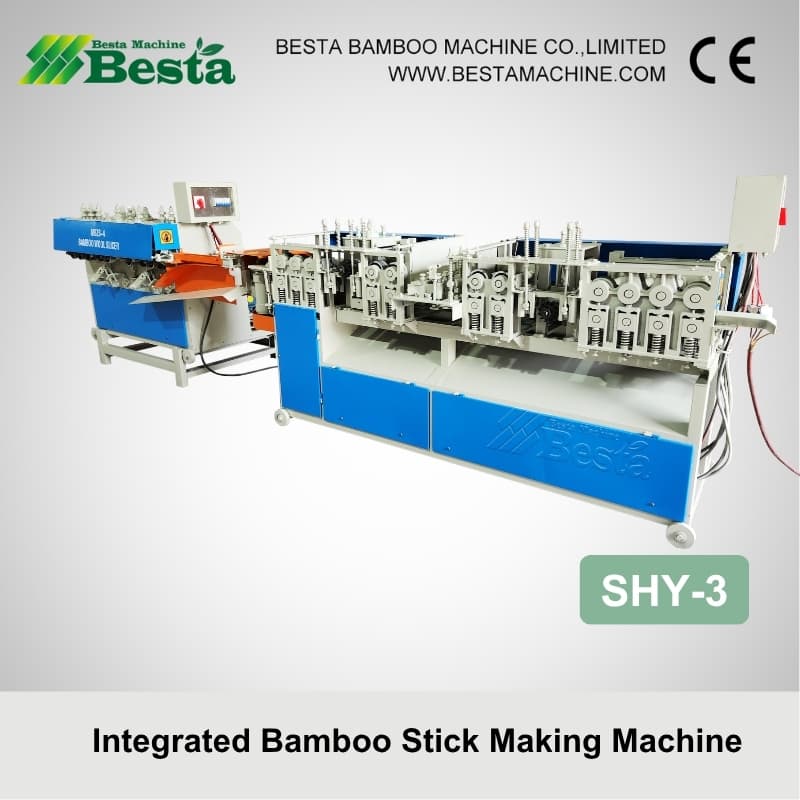

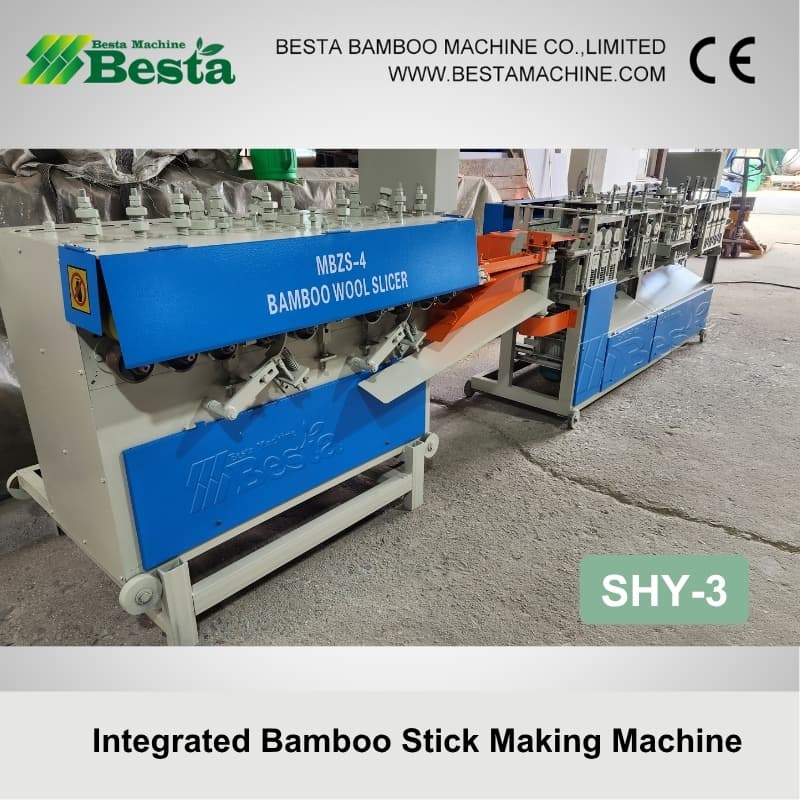

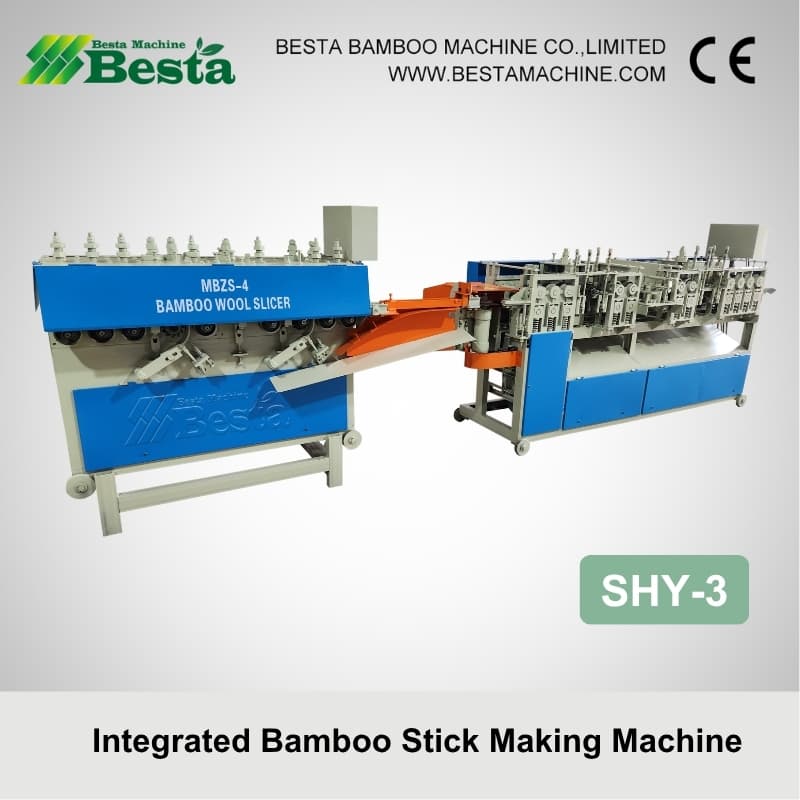

The Combined Round Bamboo Sticks Shape Forming Machine is our latest design. It integrates the MZP-3 Fixed Width-Setting & Layering Machine and the MBZS-4 Bamboo Stick Shape Forming Machine into a single, continuous production line.
Technical Data
| Product Name | Combined Bamboo Stick Shape Forming Machine |
| Model | SHY-3 |
| Power | 23.2 KW (380V,50HZ) |
| Product Size | It is related to shaping blade size equipped on it. |
| Output | Processing 500 KGS fresh bamboo per day |
| Machine Weight | 1150 KGS |
This system automatically processes bamboo strips through width setting, knot removal, and saw-blade layering, directly feeding the prepared strips into the bamboo stick shape forming machine (MBZS-4) for final shaping.
It produces bamboo sticks to precise specifications (e.g., 1.3mm, 2.0mm, 2.5mm), significantly boosting efficiency and output by minimizing manual handling.
We have two designs for choosing.
