Solutions

Bamboo Toothpick Making Production Line

Equipment details and list

Item No.	Machine Name	Function
1	Bamboo Cutting Machine	Cut the bamboo into certain length. (e.g. 1.9 meters)
2	Bamboo Splitting Machine	Splitting the bamboo into bamboo strips with certain width. (We have different models for choosing)
3	Fixed Width Slicer	Setting the width of the bamboo strips, bamboo knots removing and also separating green layer parts from yellow layer part.
4	Small Layering Machine	For very thick yellow part bamboo strips, we will do further layering and set into the thickness for further processing.(e.g. 3.5 MM thickness)
5	Bamboo Stick Shape Forming Machine	Processing the standard bamboo strips into round bamboo stick (for example 2.0mm diameter for toothpick making purpose)
6	Toothpick Length Setting Machine	Set the long bamboo sticks into toothpick length: 65mm
7	Toothpick Polishing Machine	It is a high speed toothpick polishing machine. The function for this machine is for polishing the surface of the bamboo stick into smooth.
8	Toothpick Sharpening Machine	Shape forming 2.0mm*65mm round bamboo sticks into toothpick. For toothpick sharpening machine, we have two models for choosing. One is double-pointed toothpick sharpening machine and the other is single-pointed toothpick sharpening machine.
9	Blade Grinding Machine	This machine is responsible for flat blade, shaping blade grinding.
10	Toothpick Bottle Filling Machine	Packing the toothpick by plastic bottles.
11	Toothpick Packing Machine	Paper packing, individual packing, 1 PC/BAG
12	Shrink Packing Machine	Shrink packing for 12 pieces of bottles of toothpick

Production process and pictures

01 Bamboo

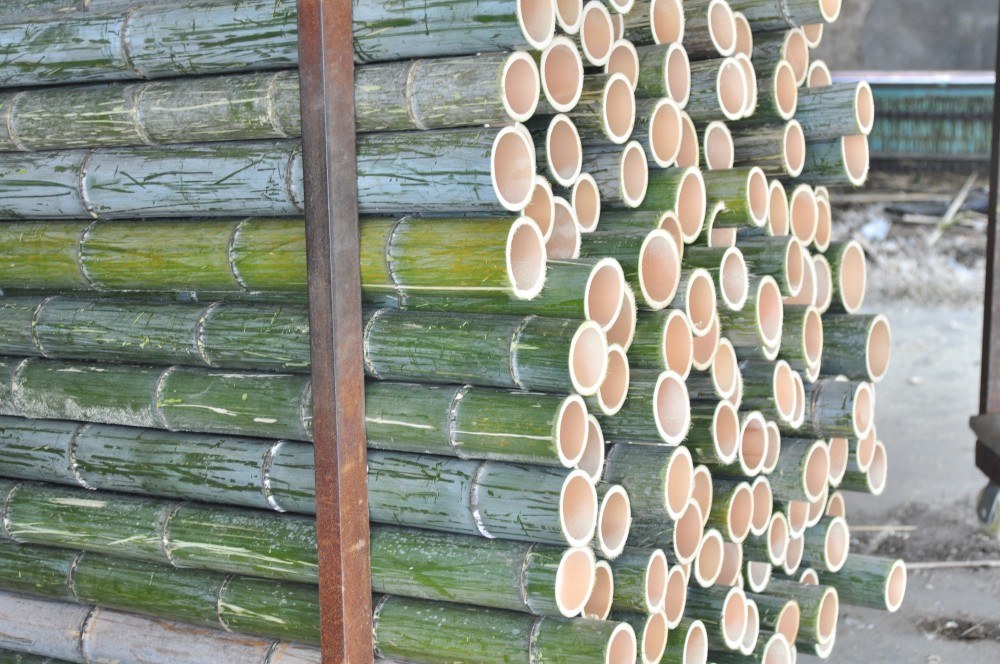

02 After Bamboo Cutting

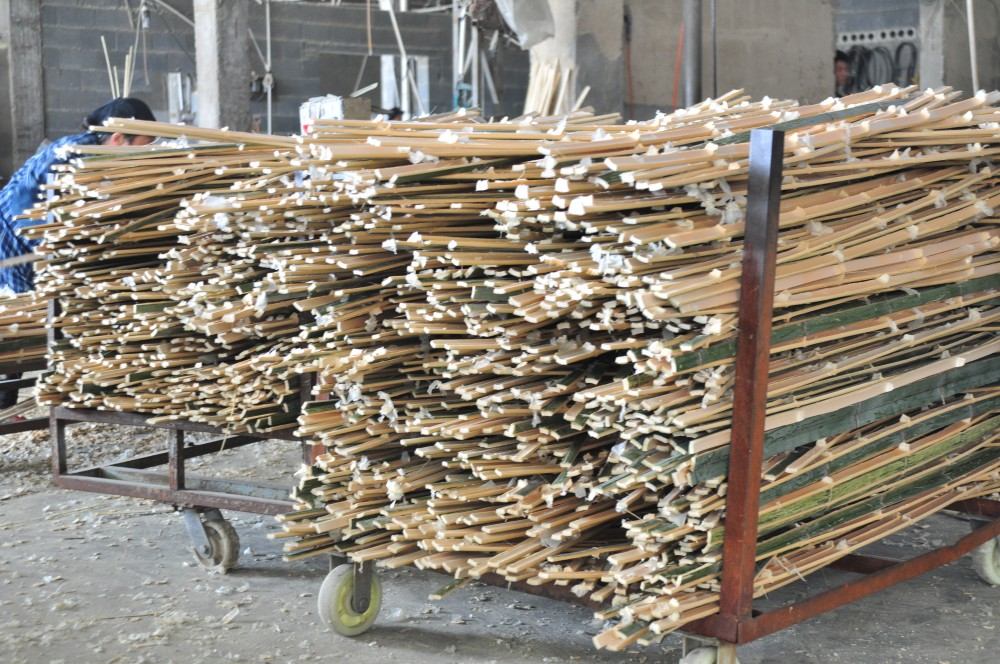

03 After Bamboo Splitting

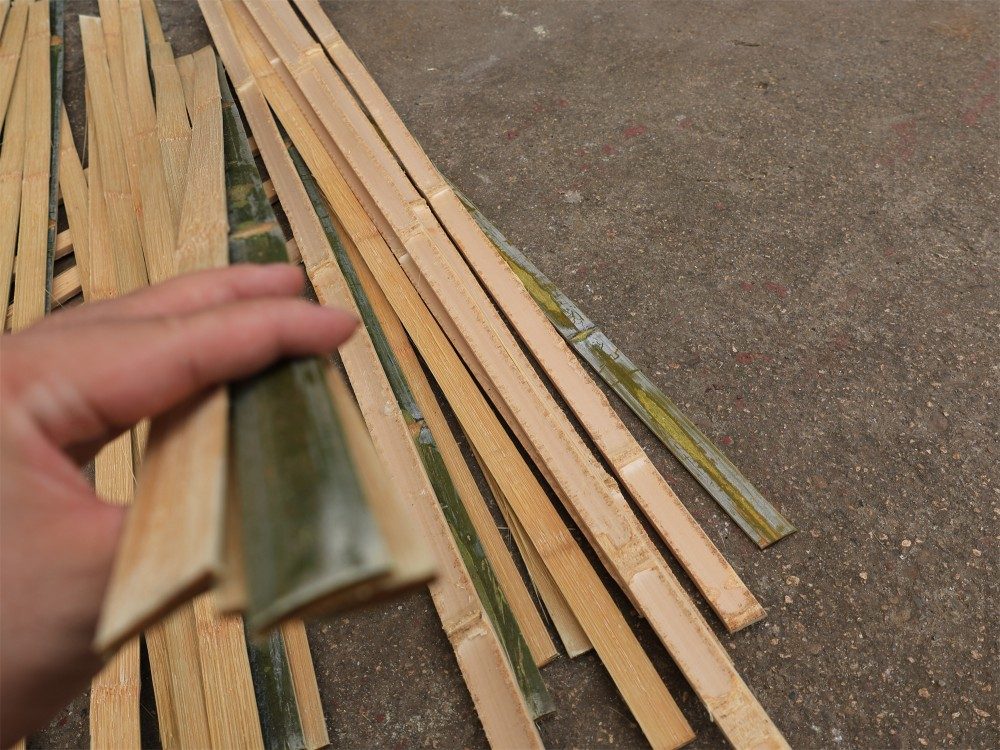

04 After using the MZP 3 width fixed layering machine

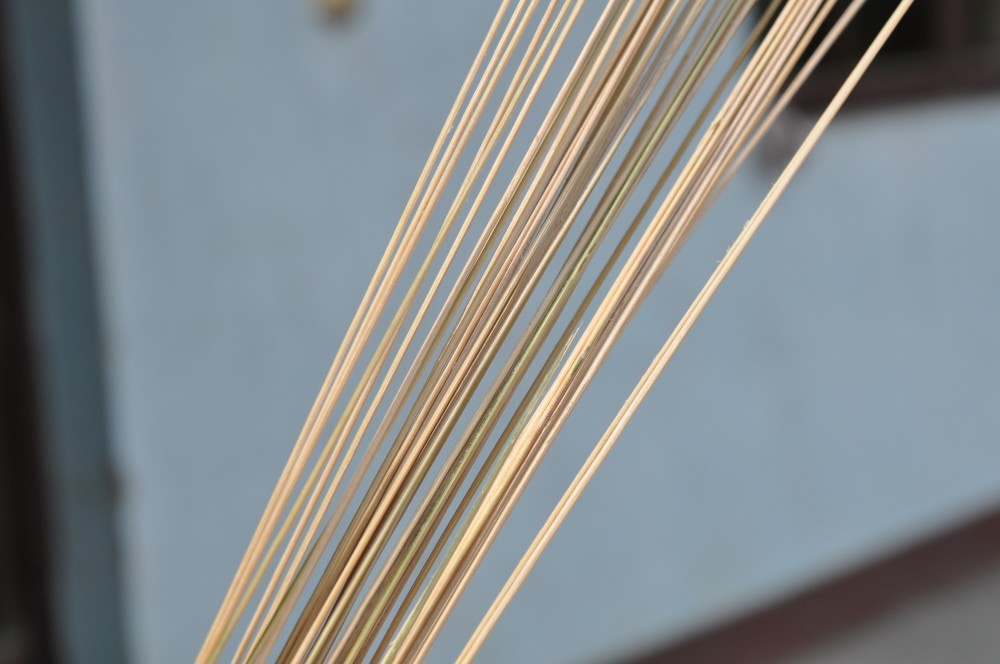

06. 2

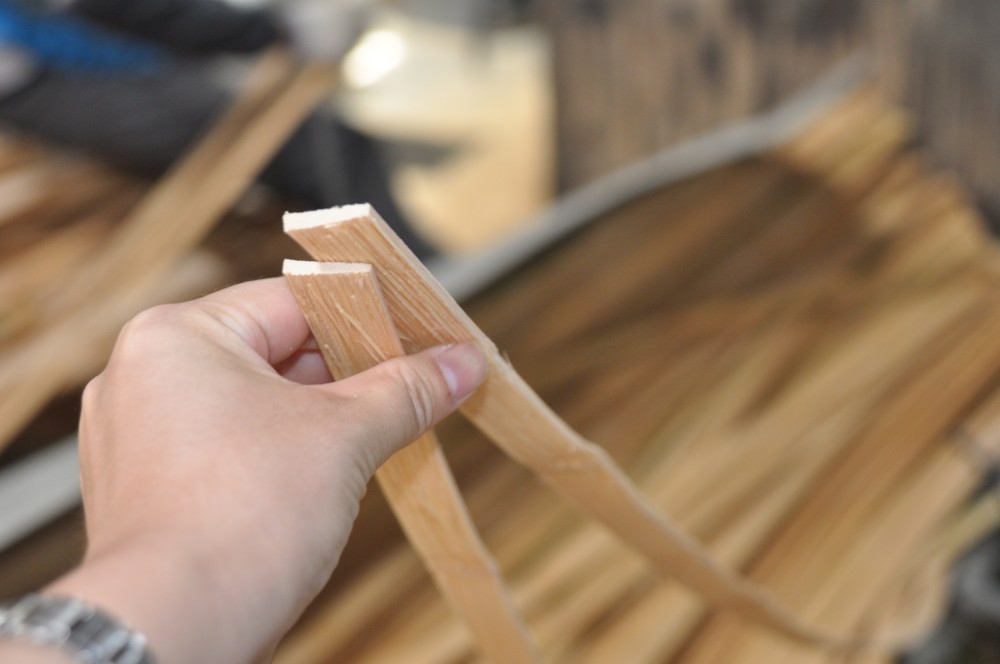

05 After using MZP 1 after layering bamboo strips

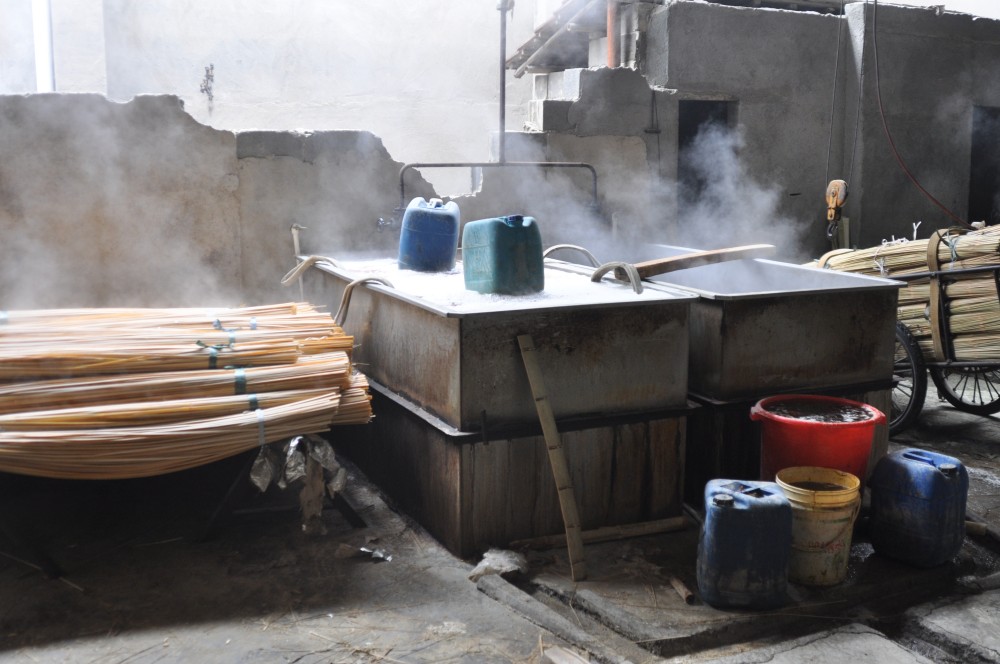

07 Bamboo Stick Chemical Treament

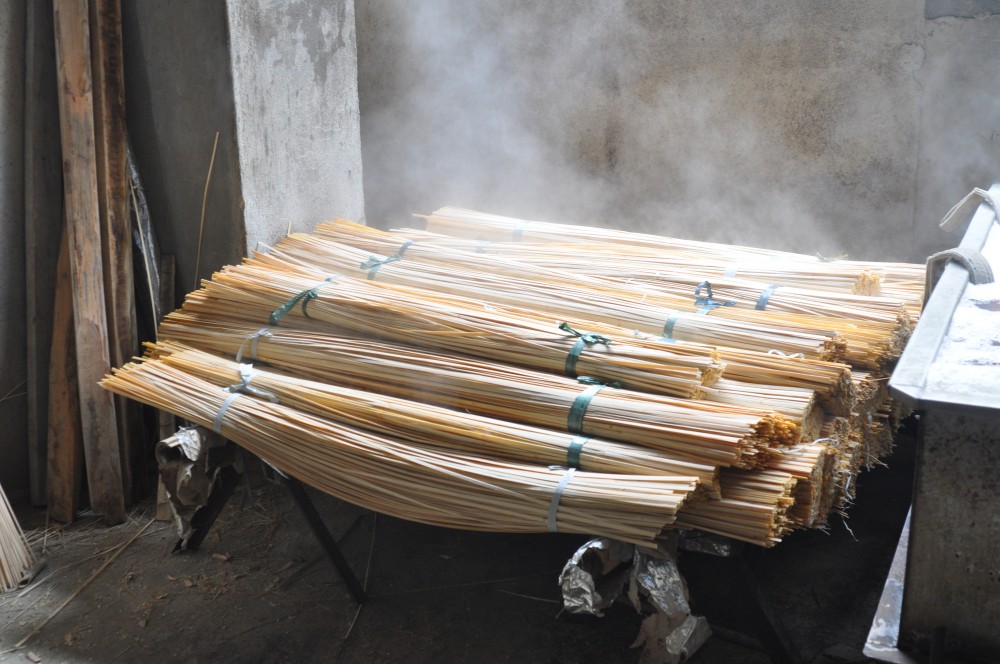

08 After Stick Boiling

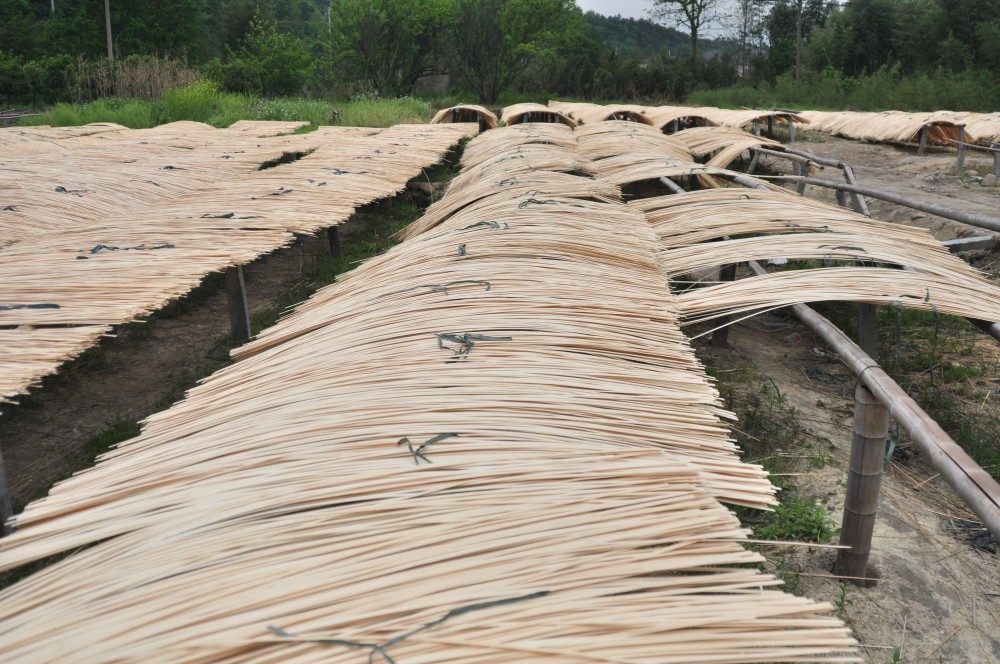

09 Bamboo Stick Drying

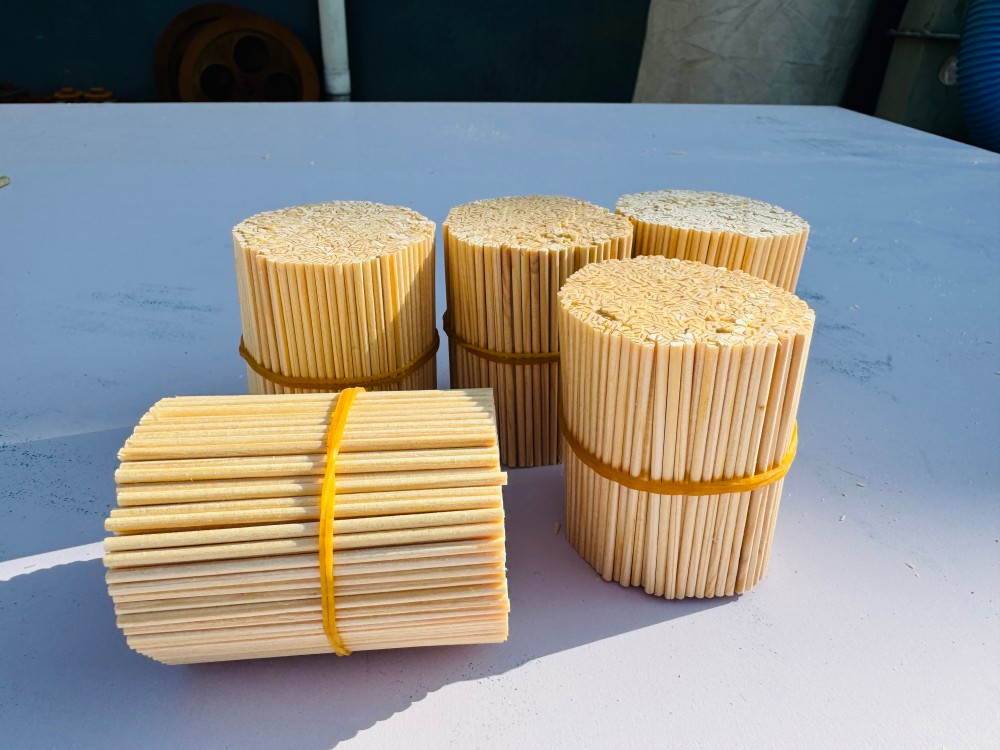

10

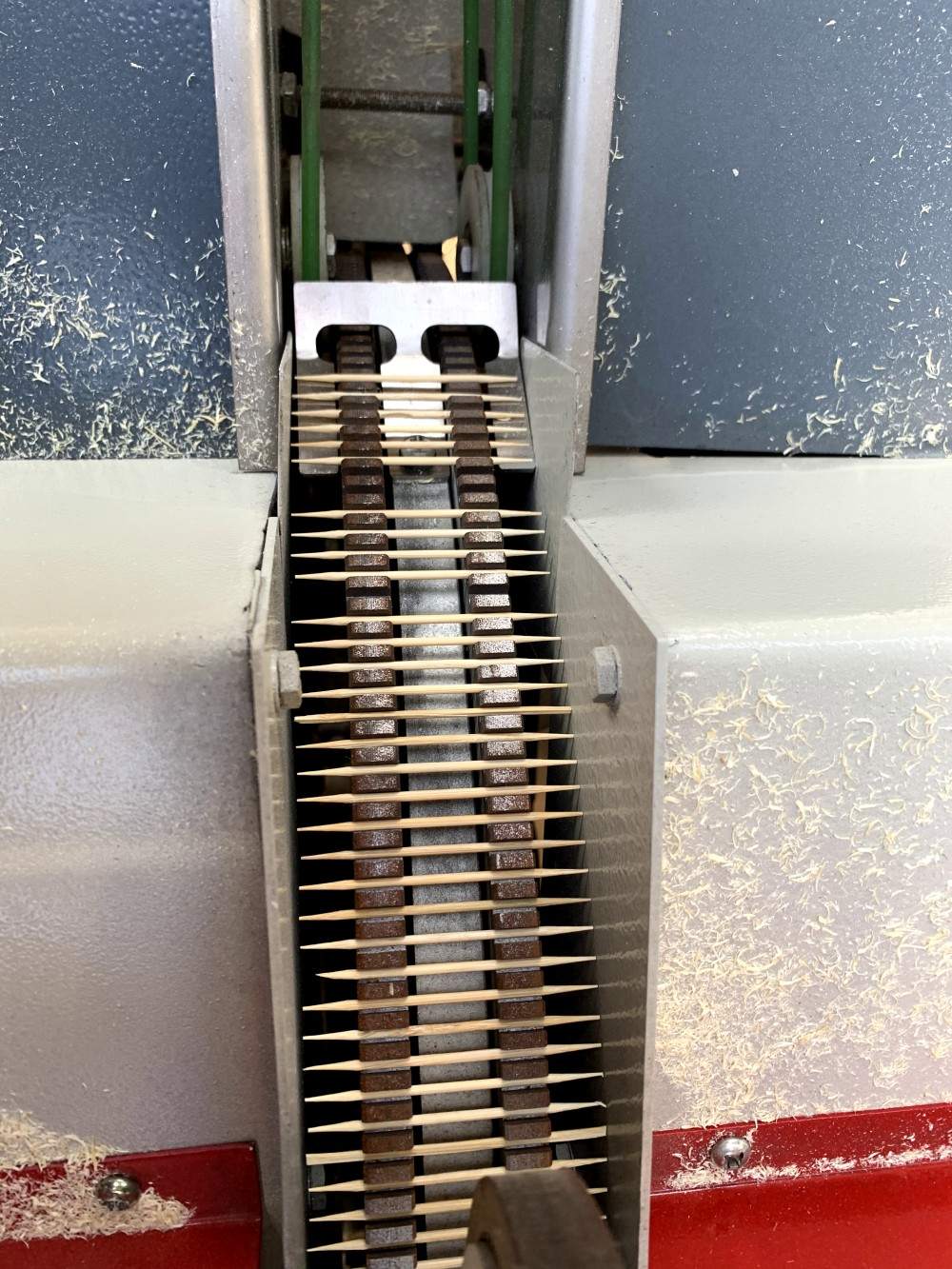

11 Toothpick Sharpening Process

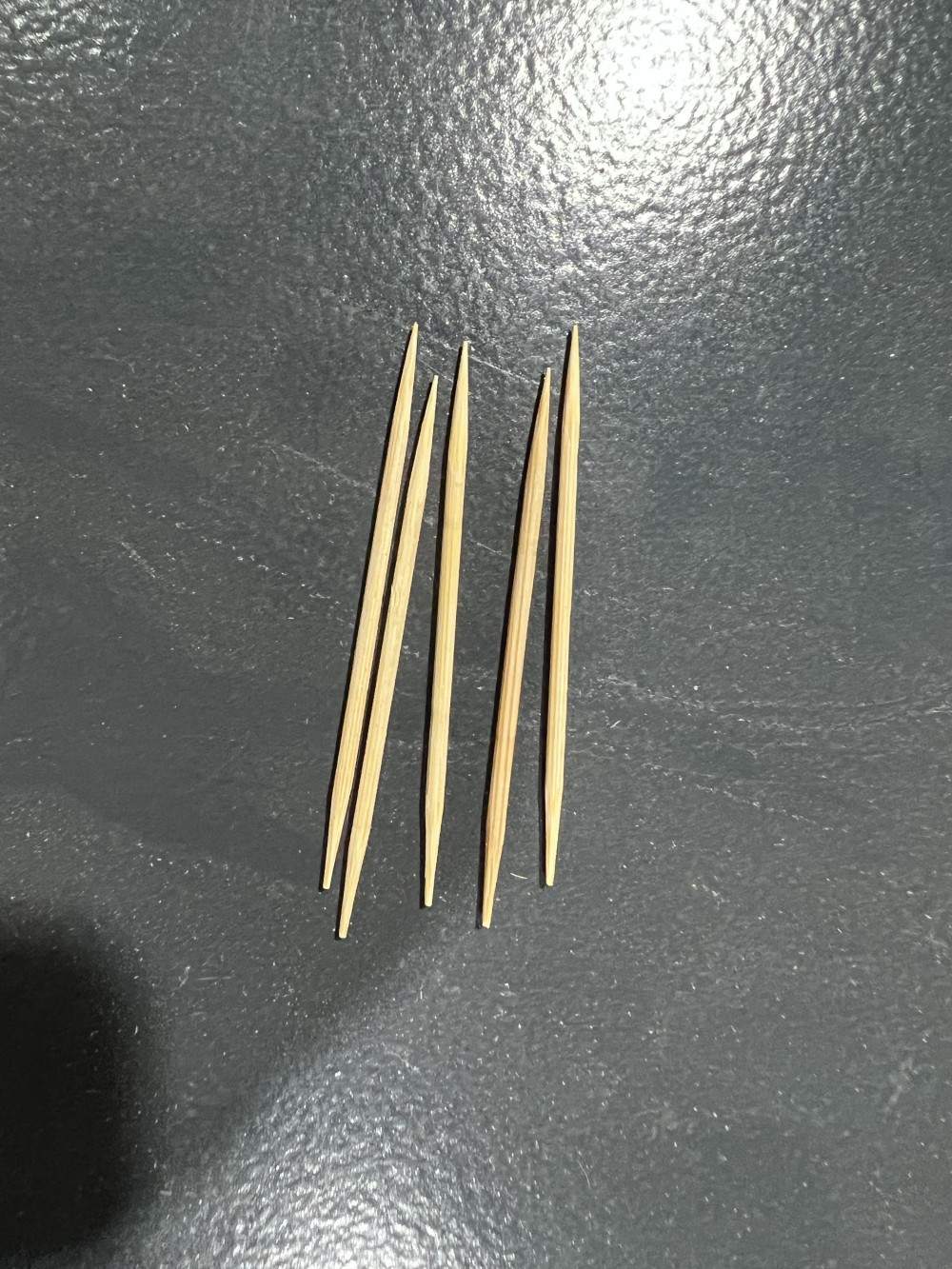

12

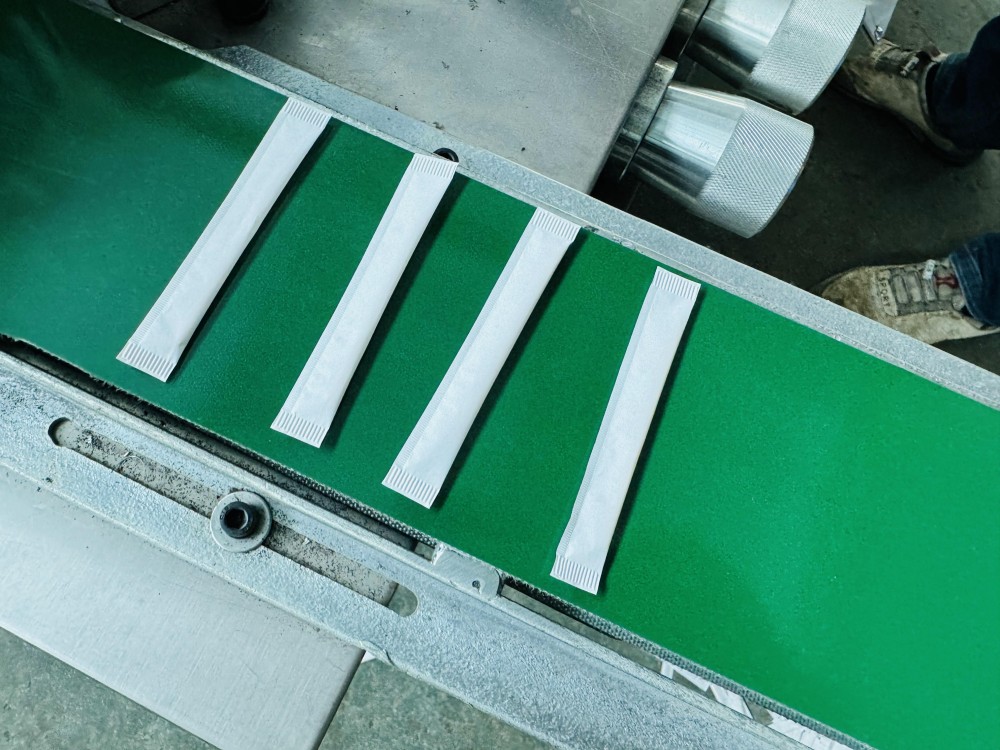

13 single stick packing

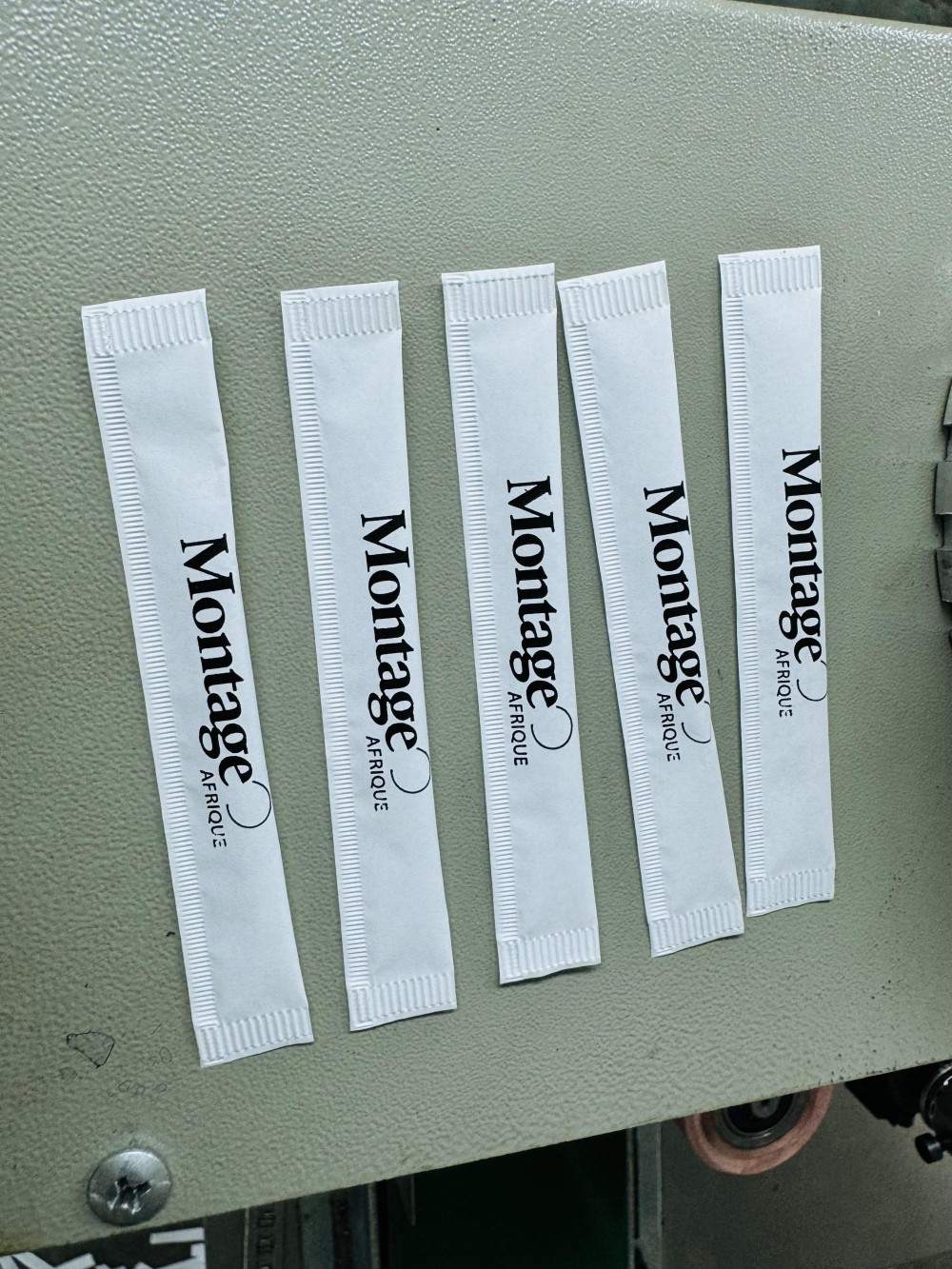

13 single stick packing 1

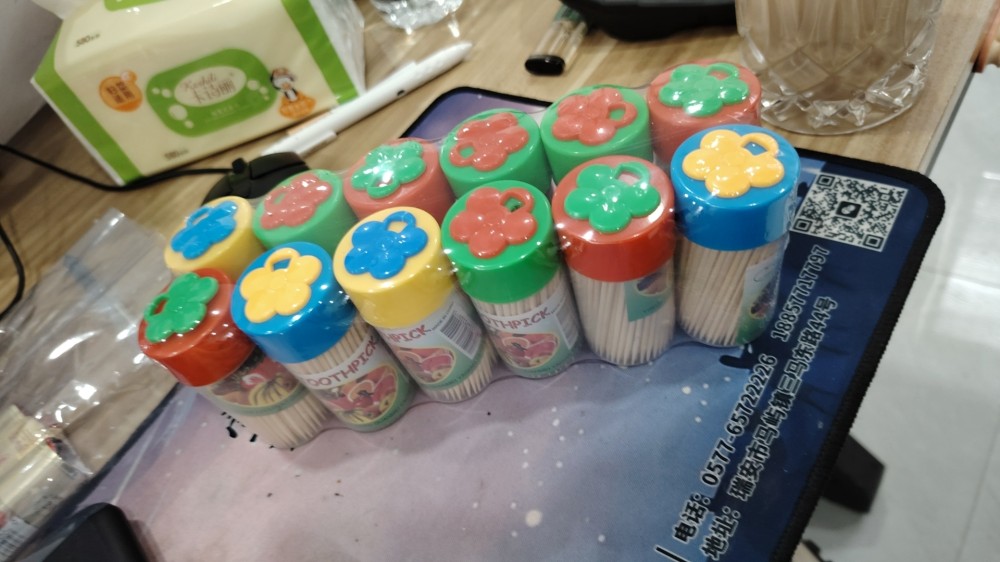

15

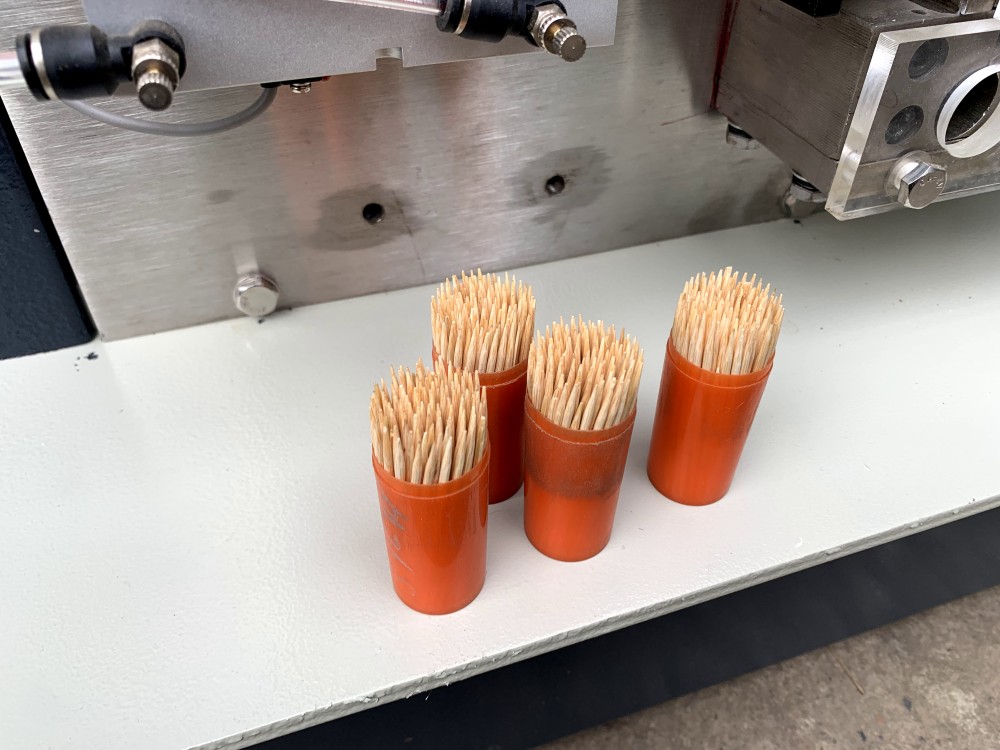

14 Filled by bottle

FAQs

Q:What is the cost for this production line?

A: The specific budget for the equipment depends on the overall project configuration, including key factors such as the selected model, quantity, target output of the production line, and level of automation. To efficiently match your needs, you can also provide a rough budget range, and we will recommend the most suitable equipment solution based on this.

Q:Why BESTA is Your Partner for Long-term Success?

A: Forged from nearly 30 years of experience, Besta Machine are committed to excellence in the bamboo and wood equipment industry. We define quality not just by durability, but by our value of enabling our customers' long-term success. Our machines, proven in design, materials, and market performance, have earned widespread trust. We are convinced that this reputation is the foundation for connecting with more clients and growing in new markets.

Q:What is the requirement for bamboo species and size?

A: The diameter of the bamboo should be no less than 9 CM Bamboo Wall Thickness: No less than 10MM Year of Growth: Suggest 4 years.

Q:Why is the bamboo stick boiling process a necessary step?

A: Absolutely. The boiling process is a crucial step. Its primary purposes are to eliminate residual sugars and sterilize the bamboo to prevent mold and fungal contamination. This treatment is fundamental for achieving a stable, durable product. Subsequently, the boiled sticks must proceed to the drying stage to complete the preparation.

Q:How to get a quotation from your company ?

A: Welcome to contact us by whatsapp, email or wechat. Whatsapp No. 0086 186 5710 6860 (Angel Zhou)

Q:What is the delivery time for the machines ?

A: Good news — we typically have standard equipment on hand. For a complete production line, we can ensure delivery within 30 days after the order is finalized.
